Hammond 1552DPLGY-10 Size D Replacement End Panels, Gray, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10 replacement end panels for 1552 size "D" enclosures (1552D1, 1552D3 and 1552D5)
- ABS plastic, UL94 V-0 flame rating
- IP54 rating listed on the part page
- Gray to match gray 1552 enclosures
- Spare panels for drilling or cutting custom openings
- Bagged pack, shipping weight 0.05 lbs (0.02 kg)

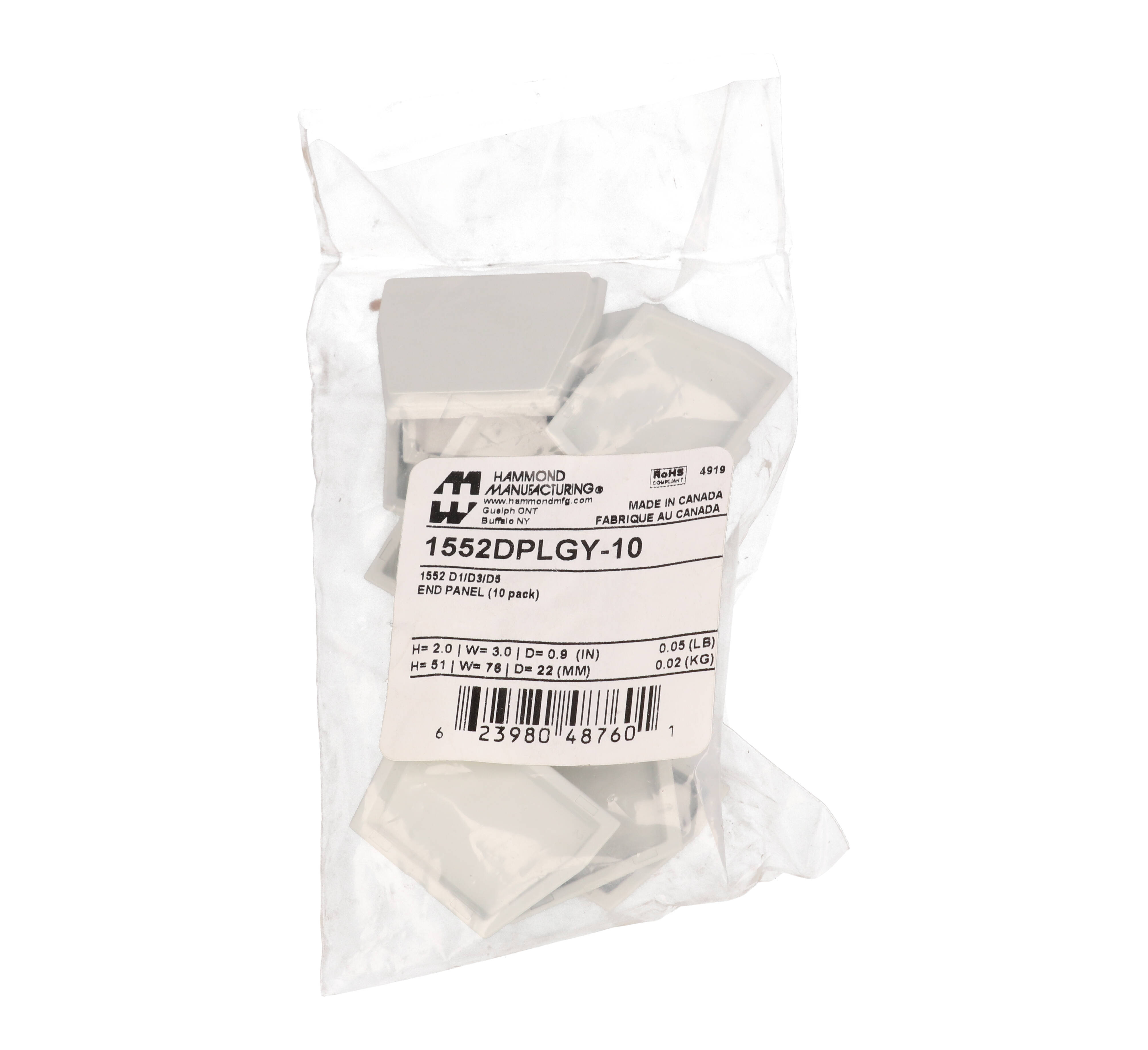

The 1552DPLGY-10 is a pack of ten gray replacement end panels for the size "D" enclosures of the 1552 hand-held ABS enclosure series: the 1552D1, 1552D3 and 1552D5, all 30 mm deep. Each 1552 enclosure ships with two removable end panels, and these spares are aimed at OEM engineers and prototype builders who drill, cut or modify panels for switches, connectors and cable entries and need fresh panels for rework or production runs.

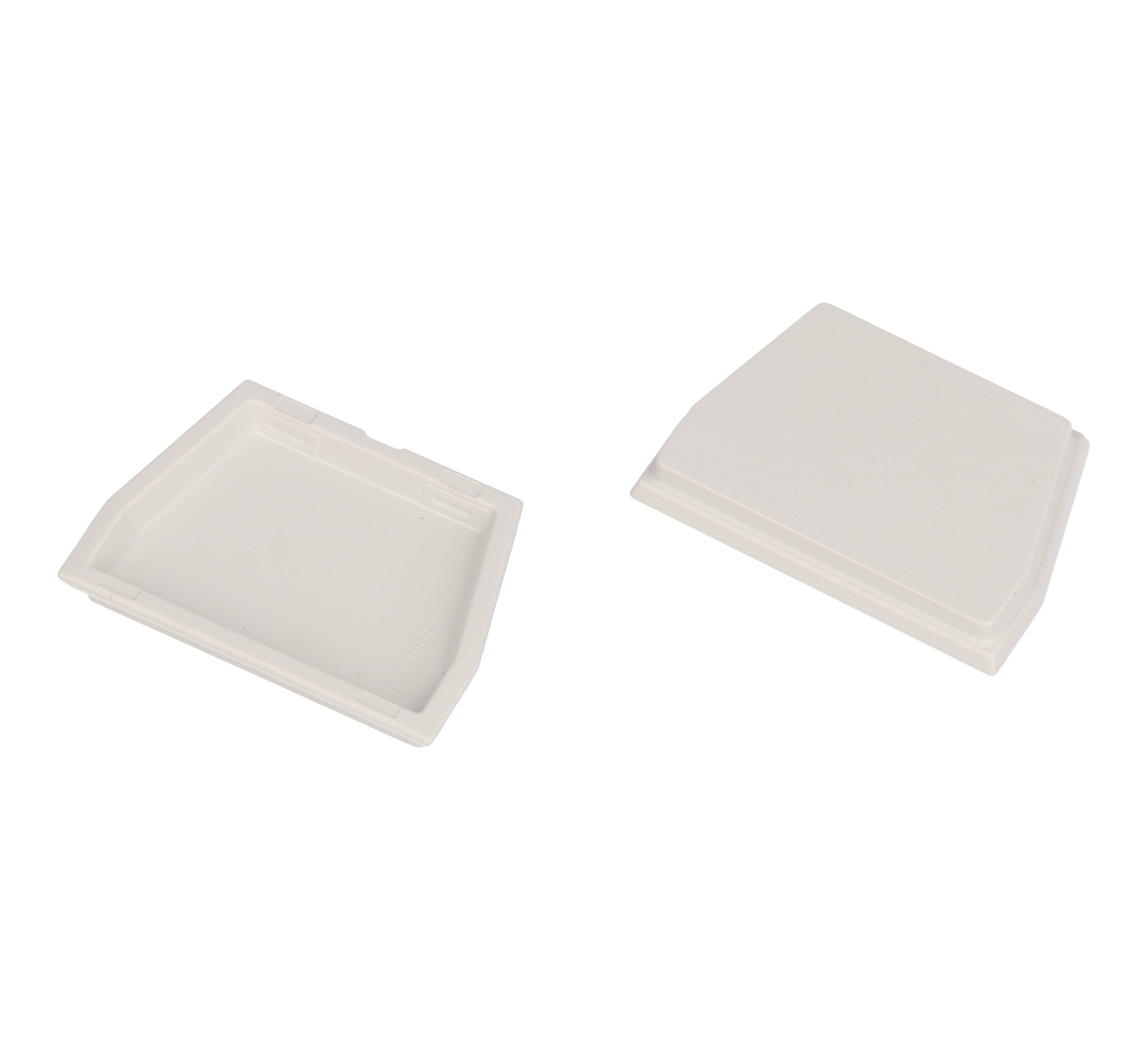

The panels are molded from ABS plastic with a UL94 V-0 flame rating, and the part page lists an IP54 rating. The gray color matches gray 1552 enclosures. Because the end panels are removable, you can modify a spare panel without touching the enclosure body, then fit it in place of the original.
The pack of 10 ships in a bag with a package size of 2 in x 3 in x 0.88 in (51 mm x 76 mm x 22 mm) and a shipping weight of 0.05 lbs (0.02 kg). REACH and RoHS compliance are both listed as Yes.
Where a cable must enter the enclosure, the end panel can instead be replaced with the size D rubberized cable gland kit, sold separately.
Ideal For
- Custom connector or switch cut-outs
- Prototype rework of 1552 enclosures
- Replacing damaged end panels
- Production spares for hand-held devices
Overview
| Type | End panels |
| Series | 1552 Hand-Held ABS Plastic Enclosures |
| Quantity | 10 per pack |
| Fits Size | D (1552D1, 1552D3 and 1552D5) |
| Description | 1552D1/D3/D5 END PNL 10-PK |
Dimensions
| Size L X W X H | 2 in x 3 in x 0.88 in (51 mm x 76 mm x 22 mm) |
Identifiers
| UPC | 623980487601 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.05 lbs (0.02 kg) |
Construction & Finish
| Color | Gray |
| Material | ABS Plastic |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures do the 1552DPLGY-10 panels fit?▾
They fit 1552 size "D" enclosures: 1552D1, 1552D3 and 1552D5.
How many panels are in the pack?▾
Ten end panels per pack.
What material are they?▾
ABS plastic with a UL94 V-0 flame rating.
Is there a gray or black version?▾
Yes. The black 10-pack for the same enclosures is 1552DPLBK-10.
Can I use a cable entry instead of a solid panel?▾
Yes. The size D rubberized cable gland kit (sold separately) replaces the standard end panel and accepts 2 mm to 6 mm cable.
