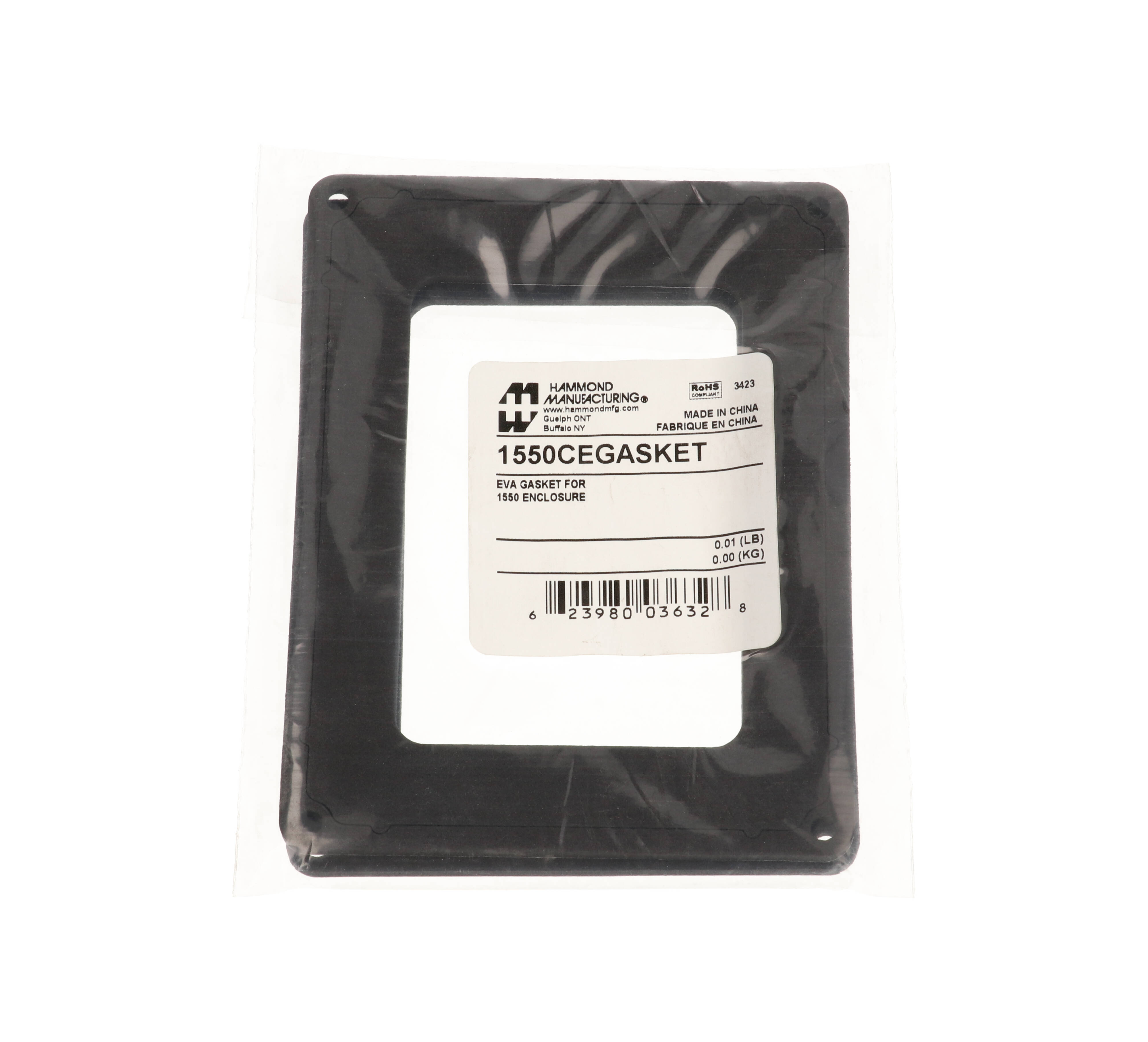

Hammond 1550CEGASKET IP66 Eva Foam Gasket Kit for 1550C, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed EVA foam gaskets per kit for 1550C size enclosures
- Designed to meet IP66 with lid screws torqued at 55 cN.m
- Eva foam rated up to 65°C (149°F)
- Adhesive backing for easy installation on the lid
- Fits 1550C, 1550CBK, 1550WC, 1550WCBK
- Alternate kit: 1550CSGASKET
- RoHS and REACH compliant
The Hammond 1550CEGASKET is a replacement IP66 gasket kit for the 1550 Series diecast aluminum enclosures, sized for the 4.53 in (115 mm) x 3.54 in (90 mm) footprint of the 1550C. Each kit includes two pre-formed EVA foam gaskets, so one pack covers two enclosures.
Designed to meet IP66 with a properly installed gasket and lid screws torqued at 55 cN.m, the EVA foam gasket is rated up to 65°C (149°F). Without a gasket the 1550 enclosure is designed to meet IP54, so this kit is the step up to IP66 sealing.
The gaskets have adhesive backing for easy installation on the lid, where a gasket retainer gives accurate, steady positioning of the seal. Compatible enclosure part numbers are 1550C, 1550CBK, 1550WC, 1550WCBK. The upgrade silicone IP67 alternative for the same size is 1550CSGASKET.
On the enclosure side, the 1550 Series lid is fastened with M3.5 x 0.6 x 12 mm stainless steel Philips head machine screws into factory tapped holes, which is what you torque to 55 cN.m to compress the gasket. Enclosures ordered in the W versions ship with the IP66 gasket loose inside the enclosure; this kit lets you add or replace that seal on a standard box.
1550CEGASKET is made of EVA foam, is RoHS and REACH compliant, and ships in a bag with a listed shipping weight of 0.01 lbs (0.00 kg).
Ideal For
- Sealing 1550 diecast enclosures to IP66
- Replacing a worn lid gasket
- Liquid-resistant electronics enclosures
Overview
| Quantity | 2 pre-formed gaskets per kit (sold as pairs) |
| Description | EVA GASKET |
| Product Type | Gasket |
| Long Description | 1550 replacement gasket kit, IP66 protection, 2-pack |
| Alternate Gasket Kit | 1550CSGASKET |
| Compatible Enclosures | 1550C, 1550CBK, 1550WC, 1550WCBK |
Identifiers
| UPC | 623980036328 |
| UNSPSC | 39121301 |
| Part Number | 1550CEGASKET |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | EVA Foam |
| Mounting | Adhesive backing, installs on the lid |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | Up to 65°C (149°F) |
| IP Rating Condition | With properly installed gasket and lid screws torqued at 55 cN.m |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1550CEGASKET fit?▾
It is the IP66 kit listed for 1550C, 1550CBK, 1550WC, 1550WCBK.
How many gaskets are in the kit?▾
Each kit includes two pre-formed EVA foam gaskets (sold as pairs).
How do I reach IP66?▾
Install the gasket properly on the lid using its adhesive backing and torque the lid screws at 55 cN.m.
What temperature can the gasket handle?▾
The EVA foam gasket is rated up to 65°C (149°F).
What is the difference between the E and S gasket kits?▾
The EVA foam (E) kit is the economical option designed to meet IP66, rated up to 65°C (149°F). The silicone (S) kit is the IP67 upgrade, rated -40°C to +150°C (-40°F to 302°F).
