Hammond 1550C 4.5x3.5x2.2 in Diecast Aluminum Enclosure

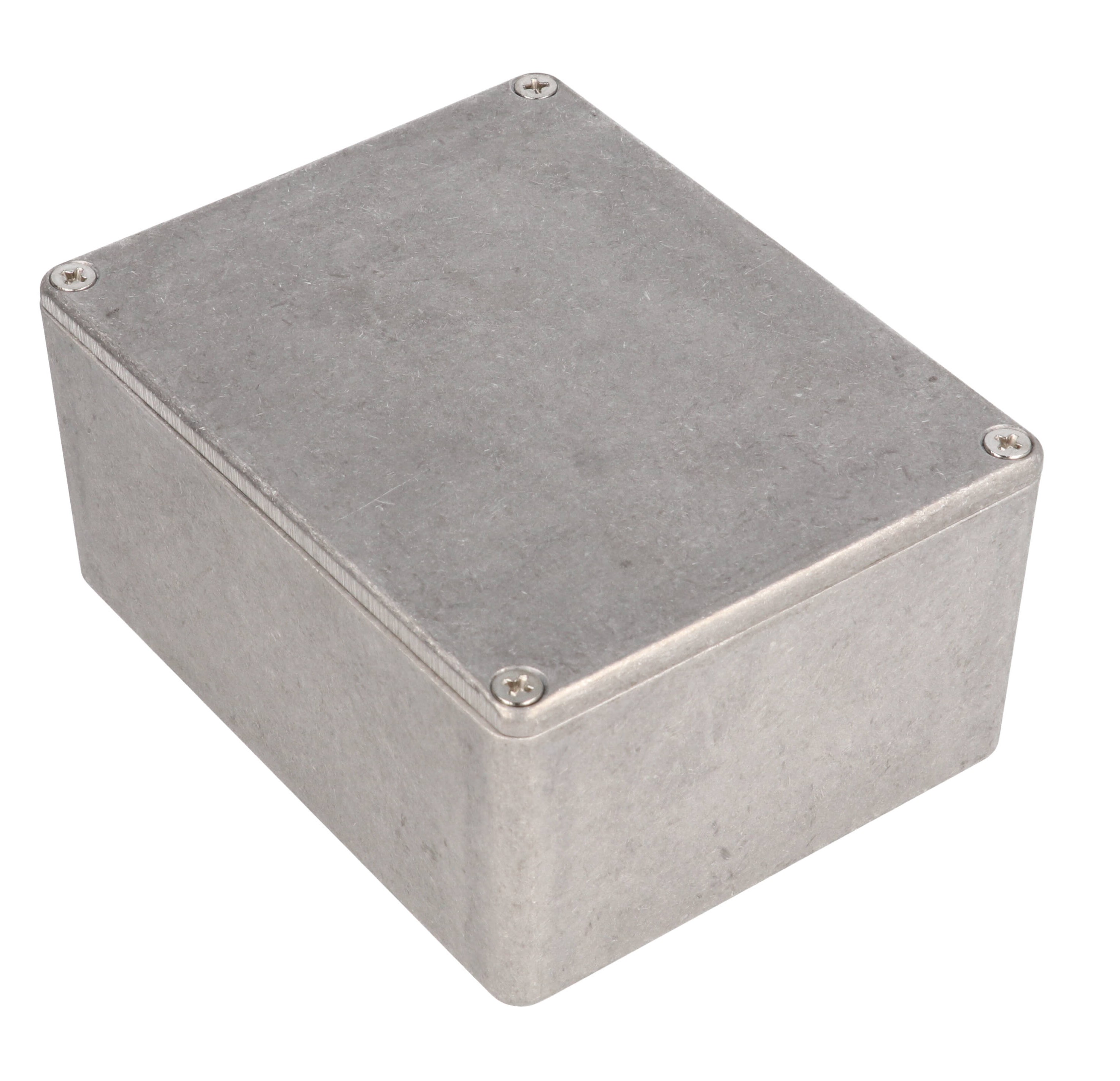

The Hammond 1550C is a rugged diecast aluminum electronic instrument enclosure from the 1550 Series, a 115 x 90 mm box at 55 mm table height, wider than the 1550B/1550D footprint. It suits electronics designers, OEM engineers and hobbyists who need a tough metal project box that is still easy to machine for connectors, switches and controls.

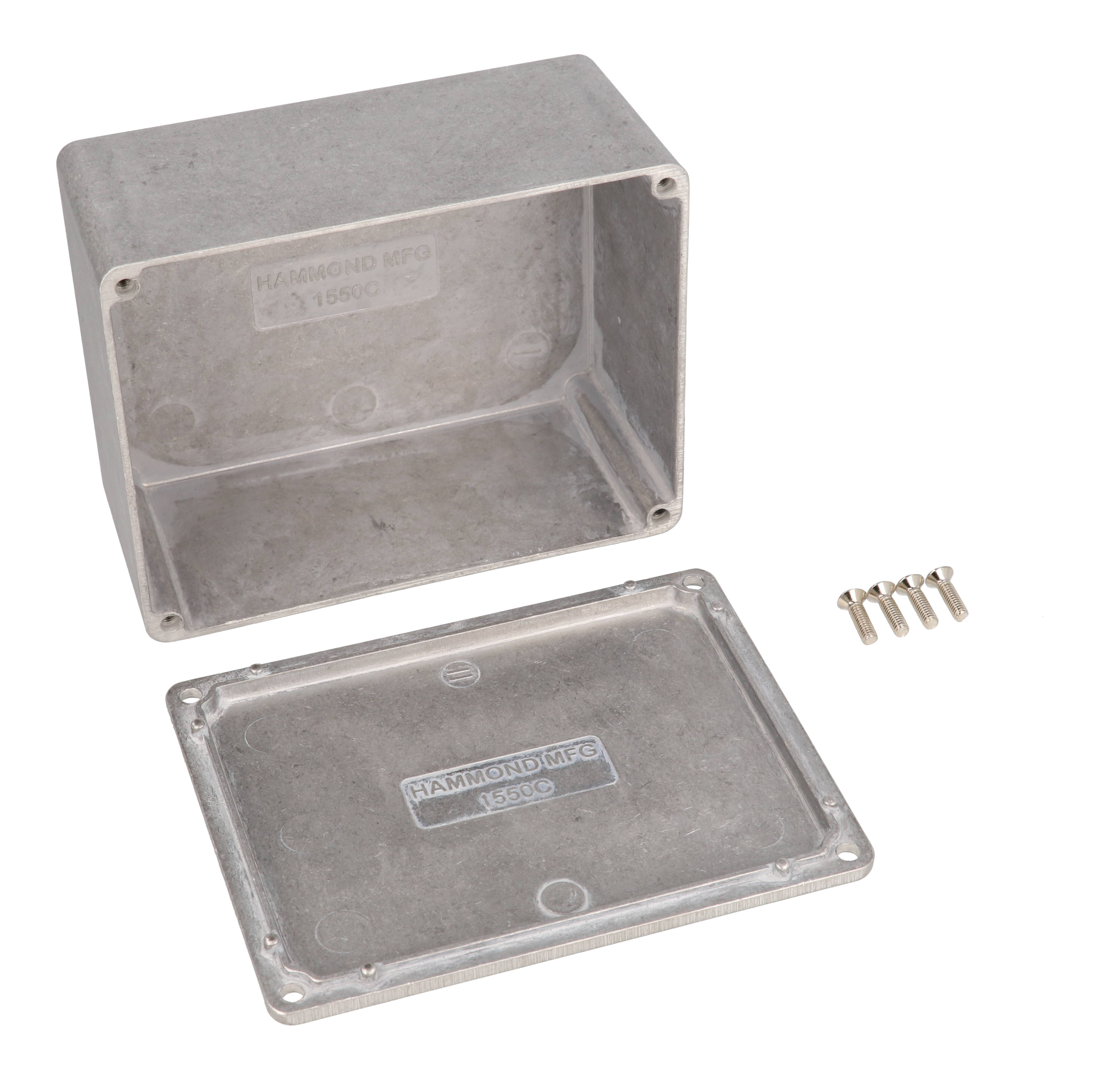

The body and lid are die-cast aluminum alloy, in a natural vibra finish that leaves a smooth surface with no sharp edges. Lap joint construction gives protection against access of dust and splashing water, and the part is rated IP54 as supplied (without a gasket). The lid is secured with M3.5 x 0.6 x 12 mm long stainless steel Philips head machine screws into factory tapped holes.

The series table lists the 1550C at 4.53 in (115 mm) long, 3.54 in (90 mm) wide and 2.17 in (55 mm) high, with dimensions including the 4 mm (0.16 in) lid; the part page lists 4.53 in x 3.54 in x 2.01 in (115 mm x 90 mm x 51 mm). Inside, the drawing gives a box length of 108.85 mm [4.29 in], width of 83.85 mm [3.30 in] and height of 51.80 mm [2.04 in]. There are no internal ribs, so connectors install without interference or extra milling, and the low side wall draft angle (2° less) eases PC board mounting.

To seal to IP66, add the 1550CEGASKET EVA foam gasket kit, or upgrade to IP67 with the 1550CSGASKET silicone kit; both are sold as pairs and install on the lid with adhesive backing. The same size is offered as 1550CBK (black), and as 1550WC / 1550WCBK with the IP66 gasket included. Replacement lid screws are 1550MS100 (100 pack), with tamper-resistant 1550MS50T (50 pack) and driver bit SCDRIVET15-2.
