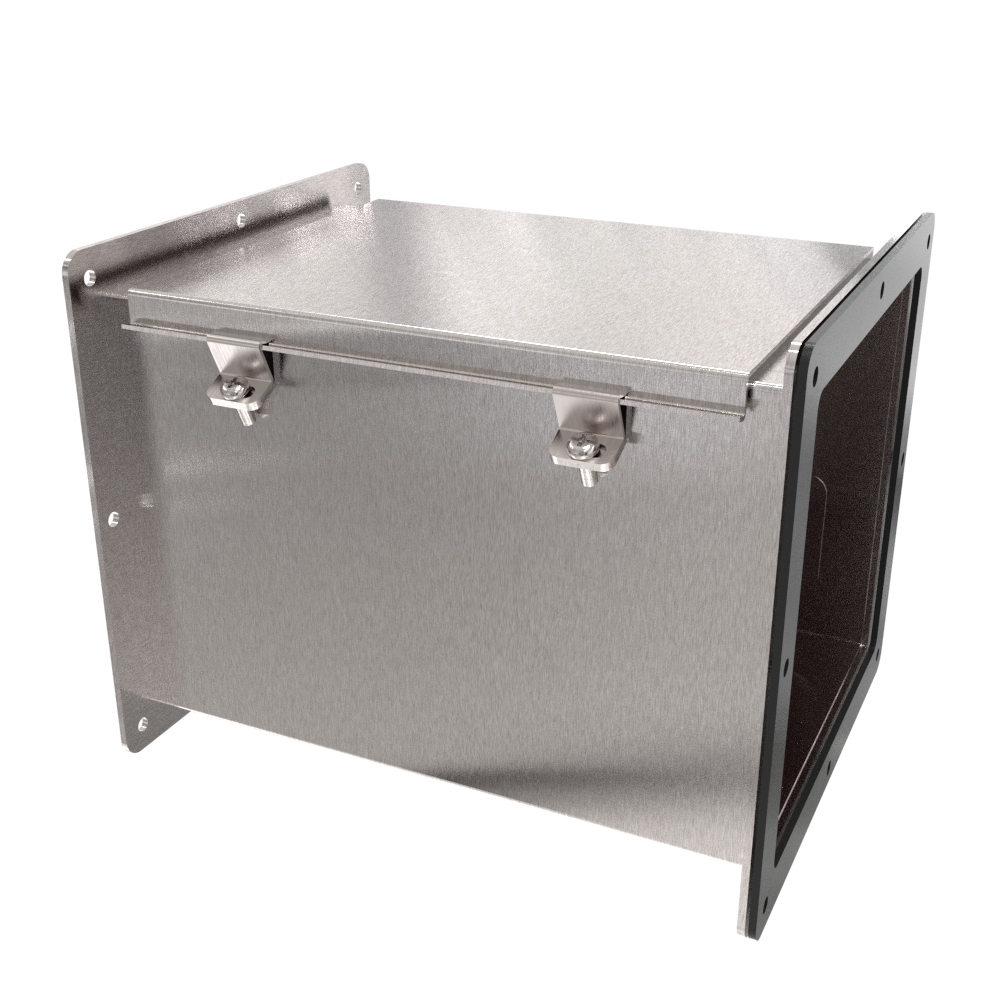

Hammond 1487E12SS 8x8x12 In. NEMA 4X Stainless Wireway Section

The 1487E12SS is a 12 in straight section of 8 x 8 inch stainless steel wireway, the largest cross-section in the series in its shortest length. The manufacturer lists it as "N4X Wireway, Straight Section - 8 x 8 x 12 - 304SS". It is aimed at electricians, OEM machine builders and plant maintenance teams who need an N4X (NEMA 4X) rated stainless raceway to protect cabling projects such as machine building and general plant wiring.

The section is formed in 304 stainless steel (304SS) and belongs to the 1487 stainless steel pull-through wireway line, which the product overview describes as hinged-cover wireway offered in NEMA 12 and 4X. The part drawing shows a hinged door running 10.47 in along the front, a gasket on the door, and 8.75 in x 6.73 in of clear space available on the door. The 8 x 8 body gives a 7.86 in inside dimension even in this short 12 in piece.

Overall size is 8 in x 8 in x 12 in (203 mm x 203 mm x 305 mm). Per the drawing, the body measures 8.00 in outside with a 7.86 in inside dimension, the end flanges are 9.63 in square, the door is 8.38 in wide, and the flanges carry 0.28 in diameter holes on 4.31 in spacing for bolting to the next section or fitting.

1487E12SS is marked REACH compliant and RoHS compliant. It ships in a box with a shipping weight of 14 lbs (6.35 kg). In the 1487SSS series table it is the 12" Section in the 8 x 8 column.
