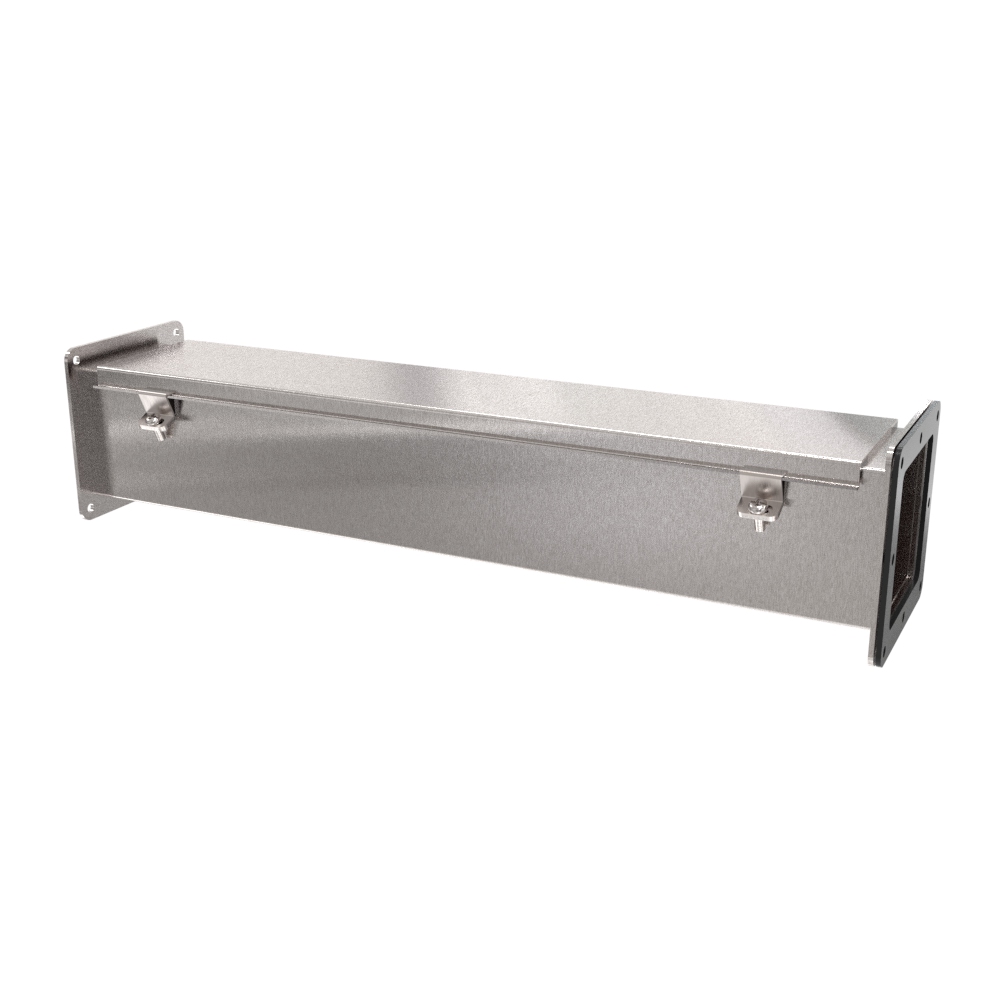

Hammond 1487C24SS 4x4x24 In. NEMA 4X Stainless Wireway Section

The 1487C24SS is a two-foot, 4 x 4 inch straight section of N4X stainless wireway for short runs along a machine frame or wall. The manufacturer lists it as "N4X Wireway, Straight Section - 4 x 4 x 24 - 304SS". It is aimed at electricians, OEM machine builders and plant maintenance teams who need an N4X (NEMA 4X) rated stainless raceway to protect cabling projects such as machine building and general plant wiring.

The section is formed in 304 stainless steel (304SS) and belongs to the 1487 stainless steel pull-through wireway line, which the product overview describes as hinged-cover wireway offered in NEMA 12 and 4X. The part drawing shows a hinged door running 22.47 in along the front, a gasket on the door, and 20.75 in x 2.73 in of clear space available on the door. The 24 in body gives a 22.47 in door, roughly double the door length of the 12 in section.

Overall size is 4 in x 4 in x 24 in (102 mm x 102 mm x 610 mm). Per the drawing, the body measures 4.00 in outside with a 3.86 in inside dimension, the end flanges are 5.38 in square, the door is 4.38 in wide, and the flanges carry 0.28 in diameter holes on 2.31 in spacing for bolting to the next section or fitting.

1487C24SS is marked REACH compliant and RoHS compliant. It ships in a box with a shipping weight of 12 lbs (5.44 kg). In the 1487SSS series table it is the 24" Section in the 4 x 4 column.
