Hammond 1487C120SS 4x4x120 In. NEMA 4X Stainless Wireway Section

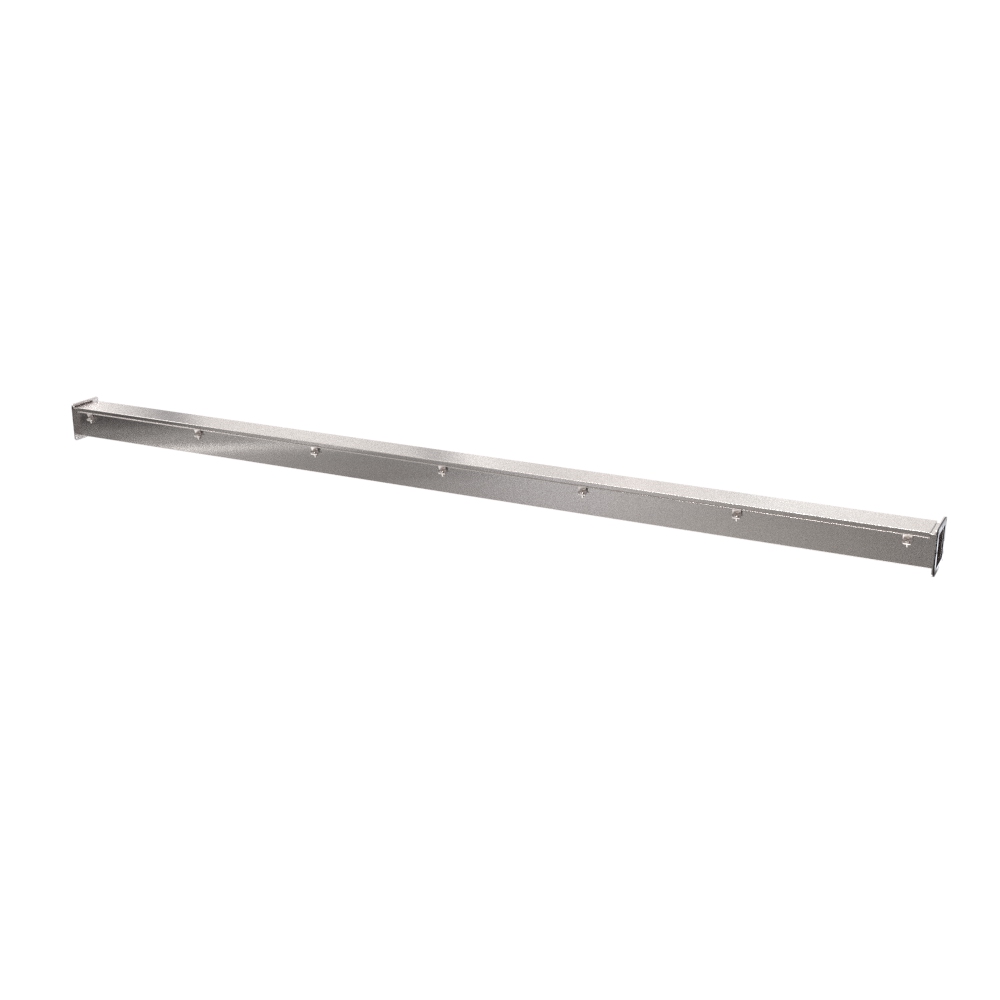

The 1487C120SS is a ten-foot (120 in) straight section of 4 x 4 inch N4X stainless steel wireway, the longest 4 x 4 length in the series. The manufacturer lists it as "N4X Wireway, Straight Section - 4 x 4 x 120 - 304SS". It is aimed at electricians, OEM machine builders and plant maintenance teams who need an N4X (NEMA 4X) rated stainless raceway to protect cabling projects such as machine building and general plant wiring.

The section is formed in 304 stainless steel (304SS) and belongs to the 1487 stainless steel pull-through wireway line, which the product overview describes as hinged-cover wireway offered in NEMA 12 and 4X. The part drawing shows a hinged door running 118.47 in along the front, a gasket on the door, and 116.75 in x 2.73 in of clear space available on the door. Its 118.47 in door runs nearly the full 120 in length of the section.

Overall size is 4 in x 4 in x 120 in (102 mm x 102 mm x 3,048 mm). Per the drawing, the body measures 4.00 in outside with a 3.86 in inside dimension, the end flanges are 5.38 in square, the door is 4.38 in wide, and the flanges carry 0.28 in diameter holes on 2.31 in spacing for bolting to the next section or fitting.

1487C120SS is marked REACH compliant and RoHS compliant. It ships in a box with a shipping weight of 52 lbs (23.59 kg). In the 1487SSS series table it is the 120" Section in the 4 x 4 column.
