Hammond 1463S 3/8-16 Spring Nut Rack Rail Hardware Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

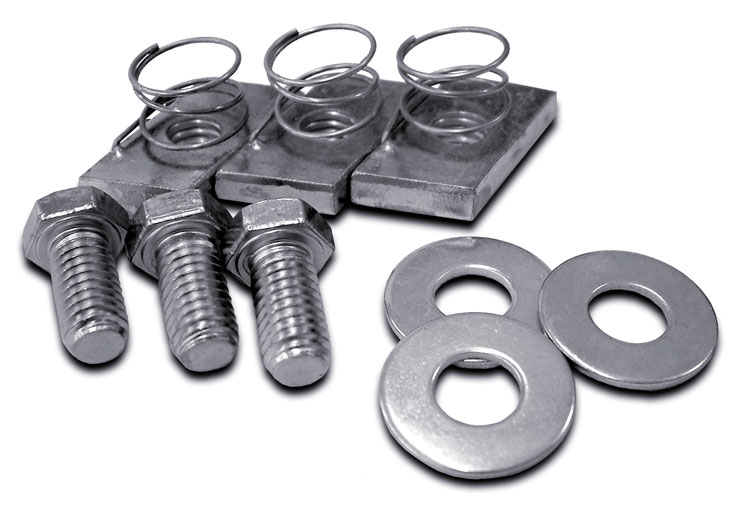

- Kit contains 3 bolts, 3 spring nuts and 3 washers - enough to mount one vertical rack rail or accessory
- Spring-loaded 3/8-16 nuts push into the cabinet C-channel and rotate into position for fast installation
- 0.75-inch hex head bolts and washers form a secure attachment point for rails and vertical accessories
- No drilling or cabinet modification required to add, reposition or replace rails
- Heavy-duty steel hardware for fastening rack rails to Hammond cabinet structural C-channels
- Fits Hammond C2, C2RR, C4, C4RR, H1, DCZ4, 1564 and REFK cabinet families
- Manufactured in North America; RoHS, REACH, USMCA and TAA compliant
- Supplied in a bag; 0.35 lbs (0.16 kg) shipping weight
The 1463S is a rack rail mounting hardware kit that supplies the fasteners needed to install rack rails and other vertical accessories into the structural C-channels of Hammond cabinets. It is aimed at IT and AV integrators, electricians, facilities teams and OEM engineers who are adding, relocating or replacing rails inside an existing cabinet, or building out a new cabinet that needs secure rail and accessory attachment points.
The kit uses heavy-duty steel mounting hardware: spring-loaded 3/8-16 nuts, 0.75-inch hex head bolts and washers. The spring nut simply pushes into the cabinet C-channel and rotates into position, creating a secure connection without drilling or modifying the cabinet structure. The hex head bolts and washers then provide a solid attachment point for rack rails and compatible vertical accessories such as vertical cable managers.
One 1463S kit contains three bolts, three spring nuts and three washers, which is enough hardware to mount one vertical rack rail or accessory. Order quantities to match the number of rails or accessories being installed. The hardware is supplied in a bag with a shipping weight of 0.35 lbs (0.16 kg).
1463S hardware is compatible with the Hammond C2, C2RR, C4, C4RR, H1, DCZ4, 1564 and REFK cabinet families. For RCH Series cabinets, the 1421SN Rail Mounting Hardware is designed specifically for that family and is the better choice.
Manufactured in North America, the kit is RoHS and REACH compliant, USMCA compliant and TAA compliant, with an ECCN of EAR99 - useful details for projects with procurement or trade-compliance requirements.
Ideal For
- Installing additional vertical rack rails in existing cabinets
- Repositioning rails for changing equipment layouts
- Mounting vertical cable managers and rack accessories to cabinet C-channels
- Replacing lost or damaged rail mounting hardware during maintenance
- New cabinet builds requiring secure rail and accessory installation
Overview
| Series | 1463S Series - Rack Rail Mounting Hardware Kit |
| Part Number | 1463S |
| Coverage Per Kit | Enough to mount one vertical rack rail or accessory |
| Long Description | Hdwr Pkg of 3 Spring Nuts & Bolts |
| Quantity Included | 3 bolts, 3 spring nuts, 3 washers |
| Short Description | 3 SPRING NUTS AND BOLTS |
Identifiers
| UPC | 623980793603 |
| UNSPSC | 31161721 |
| GTIN-14 | 00623980793603 |
| UPC W/o Check Digit | 62398079360 |
Rack Mounting
| Bolt Type | 0.75-inch hex head bolt |
| Mounting Method | Spring nut pushes into cabinet C-channel and rotates into position; no drilling or cabinet modification |
| Nut Thread Size | 3/8-16 spring-loaded nut |
| Compatible Cabinet Families | Hammond C2, C2RR, C4, C4RR, H1, DCZ4, 1564, REFK |
| Alternative For RCH Cabinets | 1421SN Rail Mounting Hardware |
Packaging & Shipping
| Tariff Code | 7318.15.8085 |
| Packaging Type | Bag |
| Shipping Weight | 0.35 lbs (0.16 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Material | Heavy-duty steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included in one 1463S kit?▾
Each 1463S kit contains 3 bolts, 3 spring nuts and 3 washers - enough hardware to mount one vertical rack rail or accessory.
What thread size are the spring nuts?▾
The kit uses spring-loaded 3/8-16 nuts, paired with 0.75-inch hex head bolts and washers.
Which Hammond cabinets does the 1463S fit?▾
It is compatible with the Hammond C2, C2RR, C4, C4RR, H1, DCZ4, 1564 and REFK cabinet families, fastening into the cabinet's structural C-channels.
Do I need to drill the cabinet to use this hardware?▾
No. The spring nut pushes into the cabinet C-channel and rotates into position, so rails and accessories can be installed, relocated or replaced without drilling or modifying the cabinet.
What should I use with RCH Series cabinets?▾
For RCH Series cabinets, use the 1421SN Rail Mounting Hardware, which is designed specifically for that cabinet family.
How is the 1463S supplied and what does it weigh?▾
It ships in a bag with a shipping weight of 0.35 lbs (0.16 kg).
