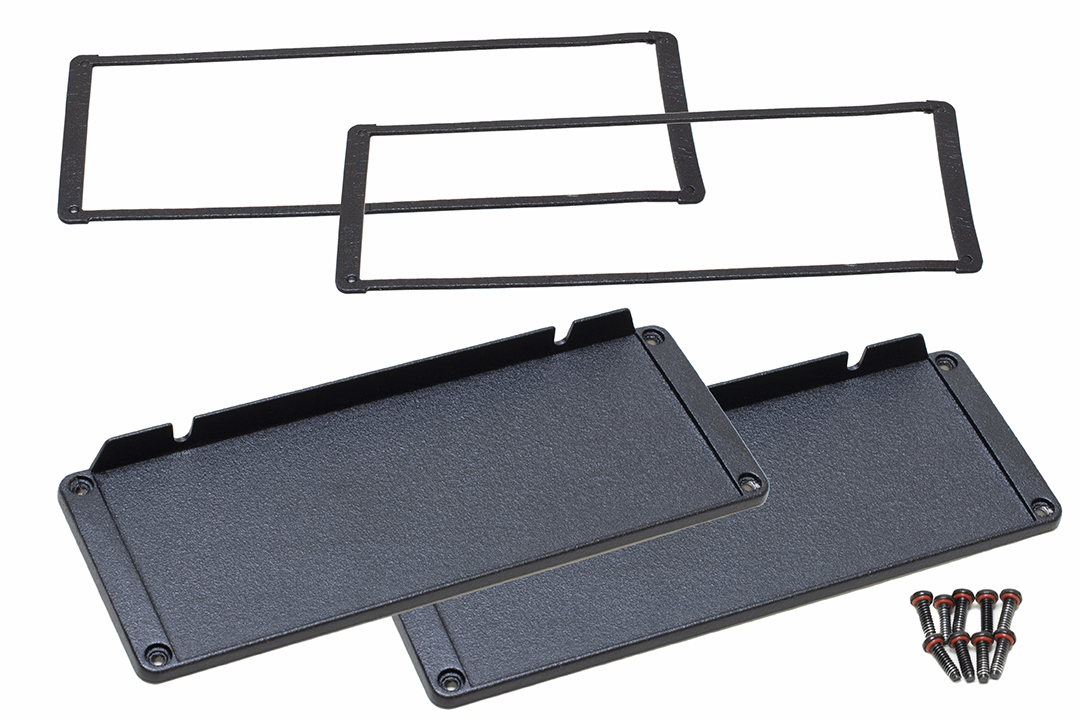

Hammond 1457UWPF Flanged IP65 Die-Cast End Panel Kit, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Water-tight replacement end panels for 1457U enclosures, 2-pack
- Integrated mounting flanges for wall mounting
- Black die-cast aluminum alloy, rugged yet easy to machine
- IP65 rated; full perimeter self-adhesive gaskets (series)
- Hardware included
- Shipping weight 0.35 lbs (0.16 kg); supplied in a bag
- RoHS and REACH compliant
The 1457UWPF is a water-tight replacement end panel kit for Hammond 1457U extruded aluminum enclosures, supplied as a 2-pack with hardware included. It is for technicians and OEM builders who need to replace damaged or modified end panels, or who want to keep spare panels on hand for machining.
The panels are die-cast aluminum alloy in black. Across the 1457 Series, end panels are described as rugged yet easy to machine and are finished in a durable black satin powder paint, with full-perimeter self-adhesive gaskets that help the assembled enclosure reach its IP65 rating. That makes these panels a practical place to cut openings for connectors, switches or cable glands.
These panels have integrated mounting flanges, which is how the 1457 Series provides its wall-mounting option: fitting them to a 1457U body lets the enclosure be fixed to a wall or panel. They also serve as direct replacements on 1457U enclosures that were supplied with flanged panels. For flat panels without flanges, order 1457UWP.
The 2-pack covers one enclosure (one panel per end) and ships at 0.35 lbs (0.16 kg). For production quantities, the 10-pack is 1457UWPF-10.
- Fits: enclosure part numbers beginning with 1457U
- Rating: IP65, water-tight
- Compliance: RoHS and REACH compliant
- Packaging: bag; UPC 623980574134
Ideal For
- Replacing end panels on 1457U enclosures
- Machining connector or switch openings on spare panels
- Converting a 1457U enclosure to wall mounting
- Single-enclosure repair or rework
Overview
| Type | End panels |
| Series | 1457 Series – Watertight Extruded Aluminum Enclosures |
| Hardware | Hardware included |
| Description | Replacement end panels for 1457U, flanged, Water-tight, hardware included, 2-pack |
| Part Number | 1457UWPF |
| Pack Quantity | 2-pack |
| End Panel Style | Integrated mounting flanges |
| Fits Enclosures | Enclosure part numbers beginning with 1457U |
| Short Description | 1457U FLANGE PANEL KIT (2 PK) |
Identifiers
| UPC | 623980574134 |
| UNSPSC | 39121301 |
Related Parts
| Replacement Gaskets | 1457UPG-10 (water-tight, 10-pack), 1457UEG-10 (EMI, 10-pack) |
| End Panel Kits (No Flanges) | 1457UWP (2-pack), 1457UWP-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| End Panel Kits (Integrated Flanges) | 1457UWPF (2-pack), 1457UWPF-10 (10-pack) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum (Die-Cast Alloy) |
| Gaskets (Series) | Full perimeter self-adhesive gaskets |
| Machinability (Series) | Rugged yet easy to machine diecast aluminum |
| End Panel Finish (Series) | Durable, black satin powder paint |
Environmental & Protection
| Sealing | Water-tight |
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1457UWPF fit?▾
It is listed for enclosure part numbers beginning with 1457U in the 1457 Series.
How many panels are in the kit?▾
1457UWPF is a 2-pack, and hardware is included.
Do these panels have mounting flanges?▾
Yes, they are the flanged version with integrated mounting flanges. The non-flanged equivalent is 1457UWP.
What are the panels made of?▾
Die-cast aluminum alloy in black. Series literature describes the end panels as easy to machine and painted in a durable black satin powder paint.
What IP rating do they carry?▾
The kit is listed as water-tight with an IP65 rating.
Related Products
Save 52%1457UWP-10 — Replacement end panels for 1457U , non-flanged, Water-tight, hardware included, 10-pack
Hammond Manufacturing · 1457UWP-10

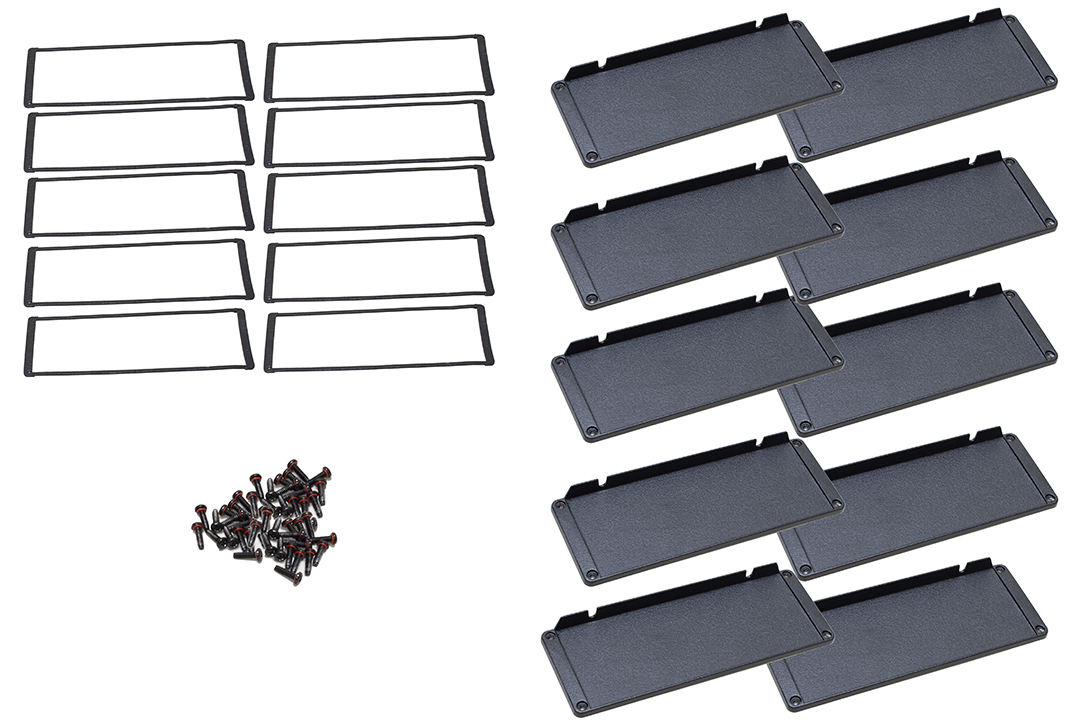

Save 52%1457UWPF-10 — Replacement end panels for 1457U , flanged, Water-tight, hardware included, 10-pack
