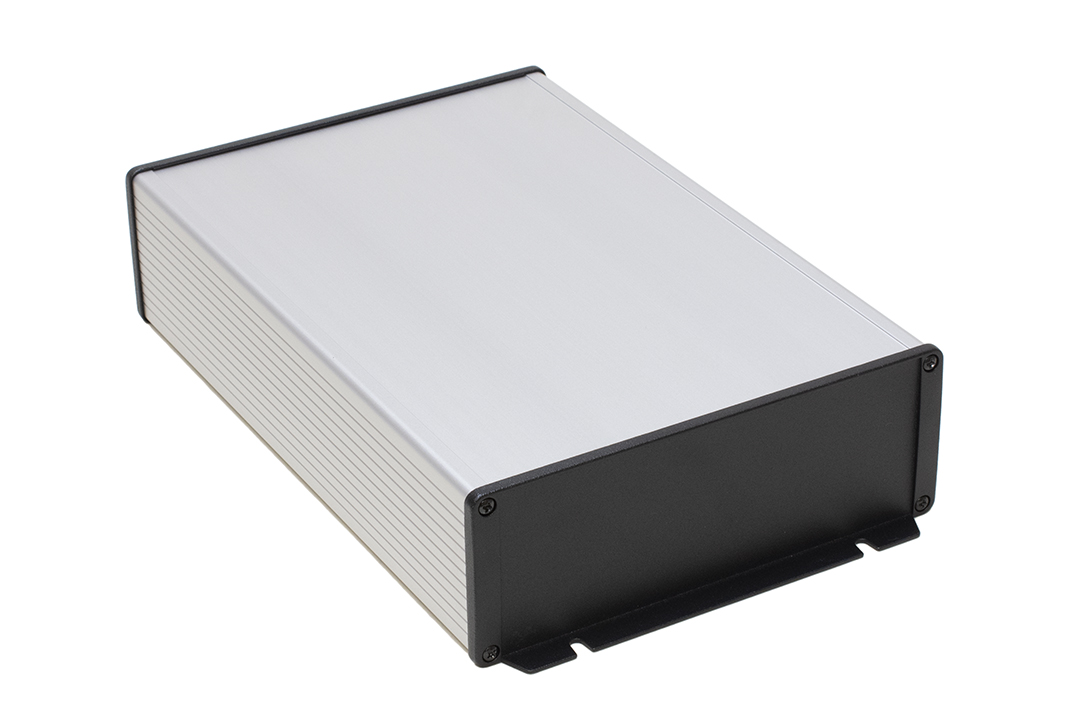

Hammond 1457U2802 280mm Flanged IP65 Aluminum PCB Enclosure, Clear
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 watertight extruded aluminum enclosure, 280 x 191 x 68 mm nominal
- Clear anodized one-piece extrusion, 1.5 mm (0.06”) minimum wall
- Horizontal PCB slots; drawing fit 280 x 186 mm board (part data max 279 x 185 mm)
- Flanged end panels for wall mounting, 311.93 mm over flanges
- Diecast aluminum end panels in black satin powder paint with foam gaskets
- Stainless hardware; black zinc screws to ASTM B633-13 Type II / SC3
- Recessed area on the body for a label or membrane keypad
- RoHS and REACH compliant; STEP/IGES models available
The 1457U2802 is a 280 mm long, IP65 watertight PC board enclosure from the 1457 Series, built around a one-piece aluminum extrusion in a clear anodized finish. It is intended for OEM engineers and integrators who need to house a circuit board or interface equipment in a tough, sealed metal case. Nominal size is 11.02 in x 7.52 in x 2.68 in (280 mm x 191 mm x 68 mm).
Boards slide horizontally into internal slots extruded into the body, so no standoffs are needed. The part data lists a maximum board of 279 x 185 mm, while the drawing states it fits a 280mm (11.024") X 186mm (7.323") PCB. The inside face-to-face dimension is 280.00 ±0.50 mm [11.024 ±0.020 in], and the body wall has a minimum thickness of 1.5 mm (0.06”). A recessed area on the extrusion takes a label or membrane keypad.
Each enclosure ships with two diecast aluminum end panels in black satin powder paint, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-rings, and adhesive rubber feet. The black zinc plated thread forming screws meet ASTM B633-13 Type II (96 hour salt spray) and SC3 (12 micron) ratings; recommended torque is 5 lbf/in.
Being the flanged version, 1457U2802 uses end panels with integrated mounting flanges. On the drawing the assembly measures 311.93 mm [12.281 in] over the flanges, with flange mounting holes on 299.93 mm [11.808 in] centres and a flange width of 193.96 mm [7.636 in], so the enclosure can be fixed directly to a wall or panel. The non-flanged equivalent is 1457U2801.
The 1457U2802 is RoHS and REACH compliant, weighs 1.6 lbs (0.73 kg) shipped and is packed in shrink wrap. The factory can mill, drill or print enclosures to order, and STEP or IGES solid models are available for design work.
Ideal For
- Housing PC boards in wet or dusty locations needing IP65
- Equipment interfacing enclosures with a membrane keypad or label
- Standard Eurocard-sized electronics packaging
- Wall-mounted electronics using integrated flanges
Mounting
| Wall Mounting | Flanged end panels (integrated mounting flanges) |
| End Panel Holes | 4 x Ø3.60 mm [0.142 in] thru; 4 x Ø5.00 mm x 0.60 mm; 7.00 mm x 2.50 mm |
Overview
| Type | PC Board Enclosures |
| Series | 1457 Series – Watertight Extruded Aluminum Enclosures |
| Part Number | 1457U2802 |
| Configuration | Water-Tight w/ Flanges |
| Companion Version | 1457U2801 (no flanges) |
| Short Description | 1457U 280MM ENCL CLEAR ANOD V2 |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Dimensions
| Width | 191.00 mm |
| Height | 67.50 mm [2.657 in] |
| Flange Width | 193.96 mm [7.636 in] |
| Size L X W X H | 11.02 in x 7.52 in x 2.68 in (280 mm x 191 mm x 68 mm) |
| Extrusion Length | 280.00 mm |
| PCB Fit (Drawing) | Fits 280mm (11.024") X 186mm (7.323") PCB |
| Detail A Dimensions | 2.00 ±0.20 mm [0.079 ±0.008 in]; 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
| Section A-A Dimensions | 186.50 ±0.75 mm [7.343 ±0.030 in] x 61.50 ±0.60 mm [2.421 ±0.024 in] |
| Overall Length Over Flanges | 311.93 mm [12.281 in] |
| Flange Mounting Hole Centers | 299.93 mm [11.808 in] |
| Max PCB Width (Series Table) | 186.00 mm |
| Inside Face To Face Dimension | 280.00 ±0.50 mm [11.024 ±0.020 in] |
| Max PCB Length (Series Table) | 280.00 mm |
| Overall Length With End Panels | 291.15 mm [11.463 in] |
| Extrusion Body Length (Drawing) | 279.15 mm [10.990 in] |
| Max. P.C. Board Width (Part Data) | 185 mm |
| Max. P.C. Board Length (Part Data) | 279 mm |
| Additional Flange Drawing Dimensions | 120.00 mm [4.724 in]; 70.48 mm [2.775 in] |
| End Panel Outside Dimensions (Drawing) | 181.50 mm [7.146 in] x 66.66 mm [2.624 in] |
Accessories
| Replacement Gaskets | 1457UPG-10 (water-tight, 10-pack), 1457UEG-10 (EMI, 10-pack) |
| Replacement End Panel Kits (No Flanges) | 1457UWP (2-pack), 1457UWP-10 (10-pack) |
| Replacement End Panel Kits (Integrated Flanges) | 1457UWPF (2-pack), 1457UWPF-10 (10-pack) |
Identifiers
| UPC | 623980574387 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.6 lbs (0.73 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| Material | Aluminum (Extruded) |
| End Panels | Two diecast aluminum end panels painted in a durable, black satin powder paint; rugged yet easy to machine |
| Label Area | Extruded aluminum body includes a recessed area for labels or membrane keypad |
| Board Format | Sized for standard Eurocards |
| PCB Mounting | PC boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Assembly Screws | Thread forming screws, black zinc plated for corrosion protection to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum with a minimum thickness of 0.06” (1.5 mm) |
| End Panel Gaskets | Two closed-cell polyethylene foam end plate gaskets, full perimeter, self-adhesive |
| Recommended Screw Torque | 5 lbf/in |
| Replacement Assembly Screws | 1457MS100 (pack of 100 screws) |
Environmental & Protection
| IP Rating | IP65 |
| Drawing Note | Protection to IP 65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size circuit board fits the 1457U2802?▾
The drawing states it fits a 280 mm (11.024") x 186 mm (7.323") PCB, and the part data lists a maximum board of 279 x 185 mm. Boards slide horizontally into slots extruded into the body.
Is the 1457U2802 waterproof?▾
It carries an IP65 rating. The series is designed to meet IP65, using full-perimeter self-adhesive gaskets on the diecast end panels.
Does this enclosure have mounting flanges?▾
Yes. 1457U2802 is the water-tight version with flanges; its drawing shows 311.93 mm [12.281 in] overall over the flanges.
What is included with the enclosure?▾
Two diecast aluminum end panels in black satin powder paint, the extruded aluminum body, two closed-cell polyethylene foam end plate gaskets, and stainless steel assembly hardware with rubber o-ring and adhesive rubber feet.
What finish is the extrusion?▾
The body of 1457U2802 is clear anodize (colour listed as Clear (Anodize)). The end panels are painted black satin powder paint.
Are replacement parts available?▾
Yes. Replacement end panel kits for 1457U enclosures are 1457UWP / 1457UWP-10 (no flanges) and 1457UWPF / 1457UWPF-10 (flanged); replacement gaskets are 1457UPG-10 (water-tight) and 1457UEG-10 (EMI); replacement screws come as 1457MS100.
Related Products

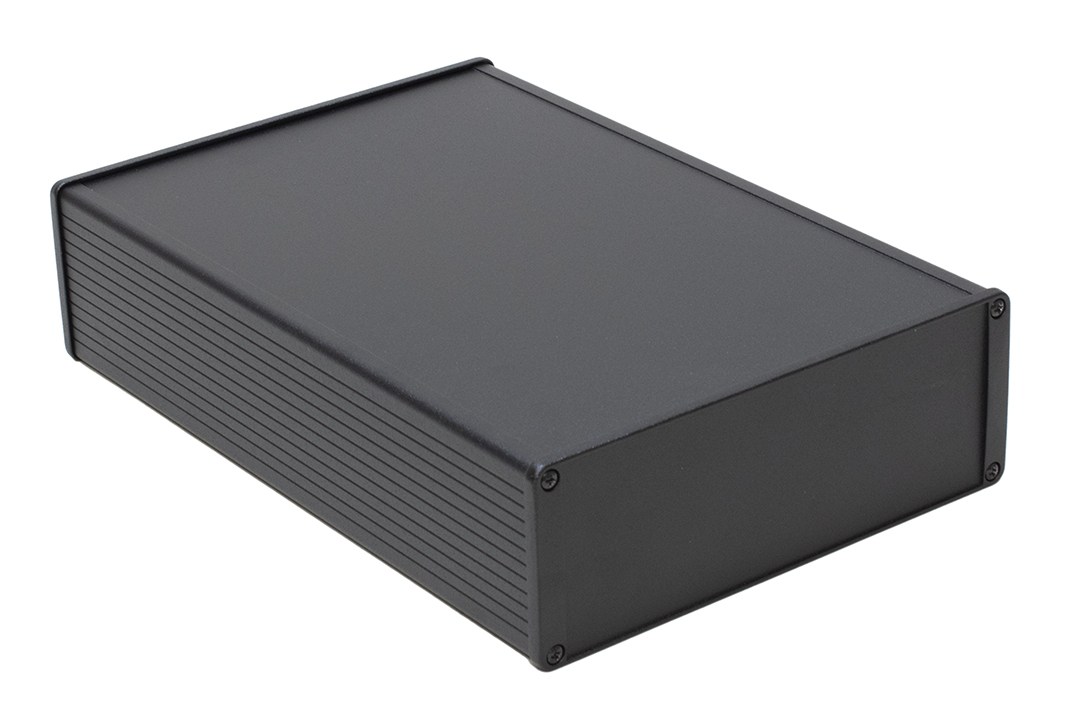

Save 52%1457U2801BK — Enclosure, extruded aluminum, 7.52 x 2.68 x 11.02, flanged end panels, 1457 Series
