Hammond 1457U1602 160 x 191mm Flanged IP65 Pcb Enclosure, Clear Anodized
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged end panels for wall mounting
- 160 x 191 x 68 mm body; 191.93 mm long across flanges
- Holds P.C. boards up to 159 x 185 mm
- Designed to meet IP65 with self-adhesive perimeter gaskets
- 61.50 mm inside height for taller components
- Clear Anodized extruded aluminum body, black diecast end panels
- Recessed area for labels or membrane keypad
The 1457U1602 is a flanged, wall-mountable PC board enclosure in the 1457 watertight series. Its extruded aluminum body measures 6.3 in x 7.52 in x 2.68 in (160 mm x 191 mm x 68 mm), the largest cross-section among the 1457 profiles, and it is designed to meet IP65, so integrators can mount sizable electronics in wet or dirty locations.
The one-piece extrusion has a minimum thickness of 0.06" (1.5 mm) and a clear anodized finish. Two diecast aluminum end panels with integrated flanges are painted in durable black satin powder paint and seal with full perimeter self-adhesive gaskets.
The drawing shows 191.93 mm (7.556 in) overall length across the flanges and 171.15 mm across the end panels, with 160.00 ± 0.50 mm inside face to face, 186.50 ± 0.75 mm inside width and 61.50 ± 0.60 mm inside height. Boards up to 159 mm x 185 mm (part page) slide horizontally into the extruded slots; the drawing notes it fits a 160 mm x 186 mm PCB.
Included are two closed-cell polyethylene foam end plate gaskets and stainless steel assembly hardware with rubber o-ring and adhesive rubber feet. Thread forming screws are black zinc plated to ASTM B633-13 (Type II, SC3); recommended torque is 5 lbf/in.
RoHS and REACH compliant, shipping weight 1.5 lbs (0.68 kg). The factory offers milling, drilling and printing on quote.
Ideal For
- Wall-mounted large PC board assemblies
- Watertight equipment interfacing
- Industrial control electronics
- Keypad or label-fronted control boxes
PCB Fit
| Drawing Note | Fits 160mm (6.299") X 186mm (7.323") PCB |
| PCB Mounting | Boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Max PCB Width (Series Table) | 186.00 mm |
| Max PCB Length (Series Table) | 160.00 mm |
| Max. P.C. Board Width (Part Page) | 185 mm |
| Max. P.C. Board Length (Part Page) | 159 mm |
Mounting
| Wall Mounting | Flanged end panels provide the wall-mounting option |
Overview
| Type | PC Board Enclosures |
| Series | 1457 Series |
| Product Type | Watertight extruded aluminum enclosure |
| End Panel Style | Flanged (integrated mounting flanges) |
| Long Description | Enclosure, extruded aluminum, 7.52 x 2.68 x 6.3, flanged end panels, 1457 Series |
| Short Description | 1457U 160MM ENCL CLEAR ANOD V2 |
| Sibling Part (No Flanges) | 1457U1601 |
| Sibling Part (Black Powder Coat) | 1457U1602BK |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Inside Width | 186.50 ± 0.75 mm [7.343 ± 0.030 in] |
| Inside Height | 61.50 ± 0.60 mm [2.421 ± 0.024 in] |
| Size L X W X H | 6.3 in x 7.52 in x 2.68 in (160 mm x 191 mm x 68 mm) |
| Extrusion Width | 191.00 mm |
| Extrusion Height | 67.50 mm |
| Extrusion Length | 160.00 mm |
| Body Wall Thickness | 2.00 ± 0.20 mm [0.079 ± 0.008 in] |
| Label/Keypad Recess Depth | 0.75 mm (0.030") |
| Inside Face-to-Face Length | 160.00 ± 0.50 mm [6.299 ± 0.020 in] |
| Overall Height (Side View) | 67.50 mm [2.657 in] |
| Additional Drawing Dimensions | 159.15 mm [6.266 in]; 173.00 mm [6.811 in]; 59.50 mm [2.343 in]; 66.66 mm [2.624 in]; 173.16 mm [6.817 in]; 181.50 mm [7.146 in] |
| Overall Length (With End Panels) | 171.15 mm [6.738 in] |
| Internal Board-Slot Details (Detail A) | 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
| Overall Length (Incl. Mounting Flanges) | 191.93 mm [7.556 in] |
| Additional Flanged-Panel Drawing Dimensions | 179.93 mm [7.084 in]; 193.96 mm [7.636 in]; 120.00 mm [4.724 in]; 70.46 mm [2.774 in]; 70.48 mm [2.775 in] |
Identifiers
| UPC | 623980574202 |
| UNSPSC | 39121301 |
| Part Number | 1457U1602 |
Related Parts
| Replacement EMI Gaskets | 1457UEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457UPG-10 (10-pack) |
| Replacement End Panel Kits (No Flanges) | 1457UWP (2-pack), 1457UWP-10 (10-pack) |
| Replacement End Panel Kits (With Flanges) | 1457UWPF (2-pack), 1457UWPF-10 (10-pack) |
Package Contents

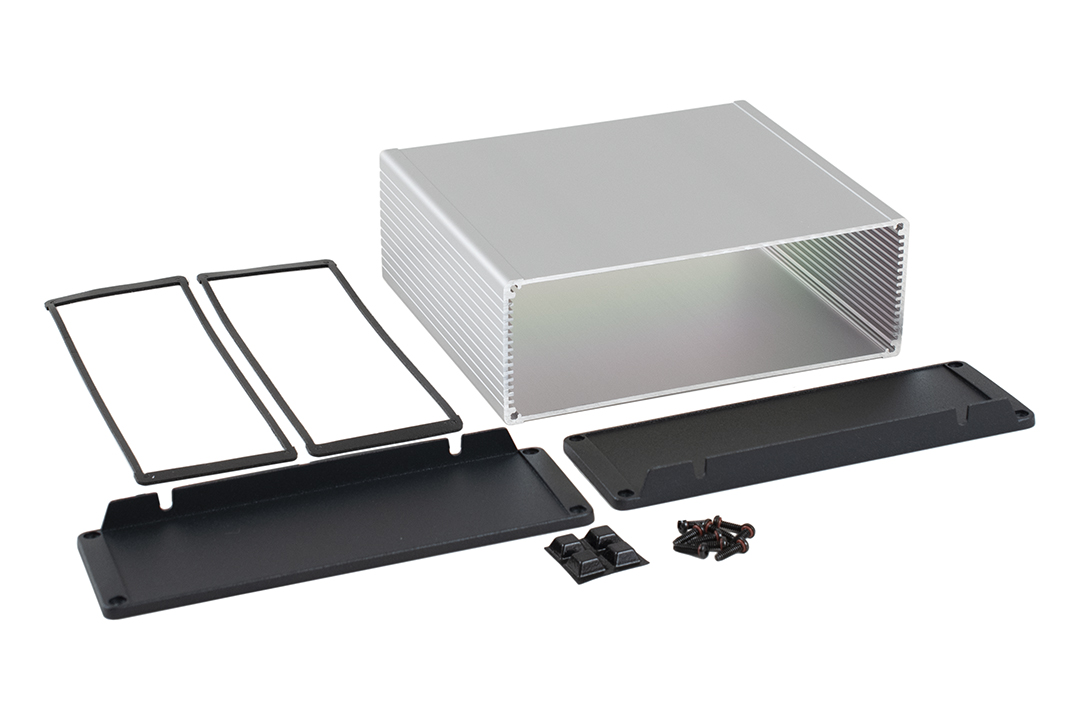

| Includes | Extruded aluminum body, two diecast aluminum end panels, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-ring, adhesive rubber feet |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.5 lbs (0.68 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| End Panels | Diecast aluminum painted in a durable, black satin powder paint |
| Label Area | Recessed area for labels or membrane keypad |
| Body Material | Aluminum (Extruded) |
| Assembly Screws | Thread forming screws, black zinc plated to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| End Panel Gaskets | Full perimeter self-adhesive gaskets; two closed-cell polyethylene foam end plate gaskets included |
| Recommended Screw Torque | 5 lbf/in |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Designed to meet IP65 (drawing: Protection to IP 65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1457U1602 across its flanges?▾
191.93 mm (7.556 in) per the drawing.
What board size fits?▾
Up to 159 mm x 185 mm per the part page; the drawing notes it fits a 160 mm x 186 mm PCB.
What protection does it offer?▾
It is designed to meet IP65.
Is there a non-flanged version?▾
Yes, 1457U1601.
Which replacement parts are available?▾
End panel kits 1457UWP/1457UWP-10 and flanged kits 1457UWPF/1457UWPF-10, gaskets 1457UPG-10 (water-tight) and 1457UEG-10 (EMI), and screws 1457MS100.
