Hammond 1457TWP-10 1457T Flat Watertight End Panel Kit, 10-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- End panel kit for enclosures beginning with 1457T
- 10-pack
- Flat panels, no mounting flanges
- Fits the 165.50 x 54.00 mm 1457T extrusion
- Black die-cast aluminum; easy to machine
- Water-tight, IP65; RoHS and REACH compliant

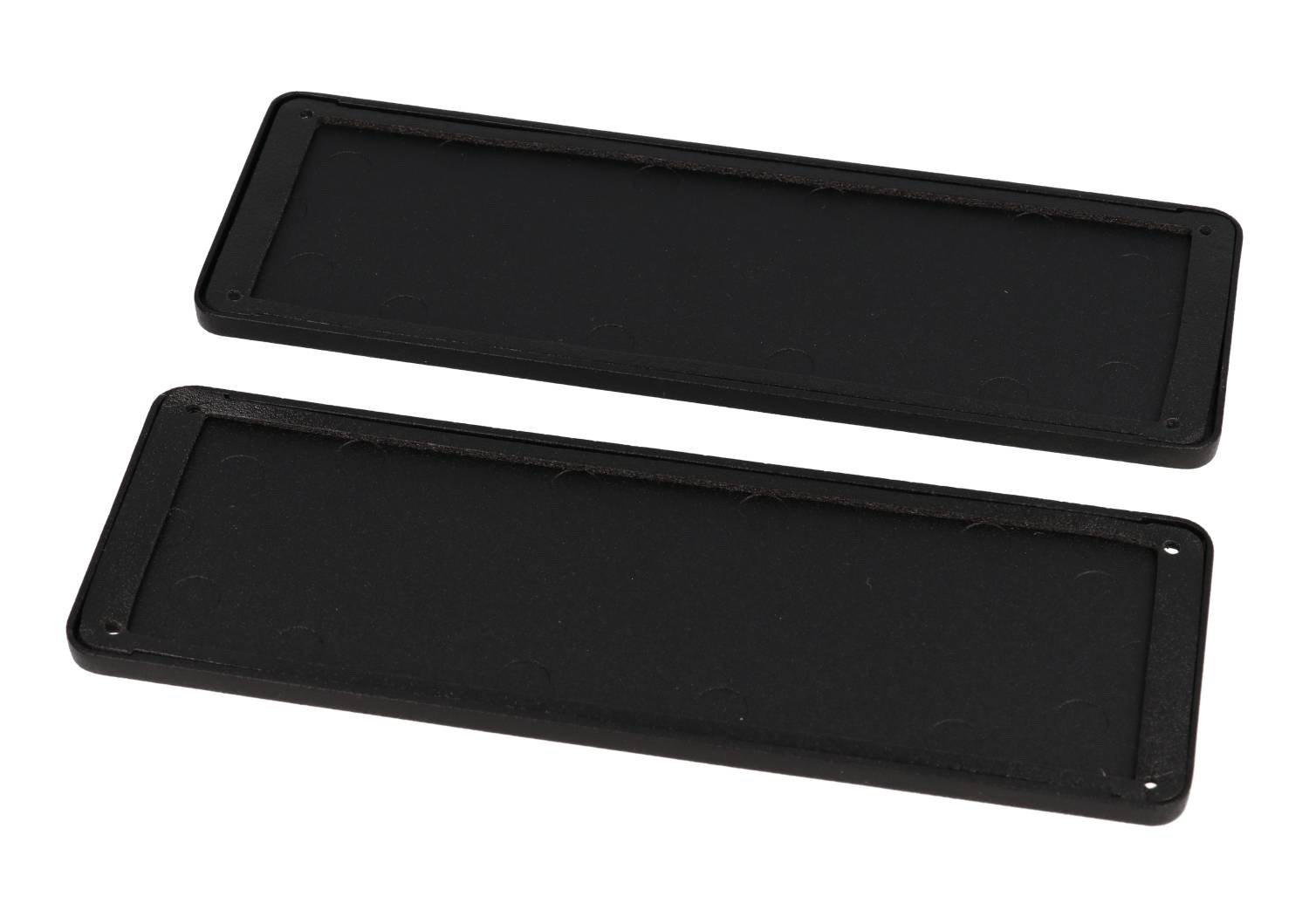

The 1457TWP-10 is a 10-pack end panel kit for the wide 1457T enclosures in the 1457 watertight series. It serves maintenance teams replacing panels and engineers who want spare blanks to machine for connectors, displays or cable entries.
The panels are flat, without mounting flanges, and are made from die-cast aluminum in black. The series copy describes 1457 end panels as rugged yet easy to machine diecast aluminum with full perimeter self-adhesive gaskets.
The series table lists the 1457T extrusion at 165.50 mm wide and 54.00 mm high, in 160.00 mm and 220.00 mm lengths: 1457T1601, 1457T1602, 1457T2201, 1457T2202 and their BK versions. The kit is classed as End Panels, Water-Tight, with an IP65 rating.
Across the 1457 Series, each enclosure is supplied with its extruded body, diecast end panels, gaskets and hardware, and extra end panel kits are sold separately. Enclosure assembly uses thread forming screws, black zinc plated to ASTM B633-13, with a recommended screw torque of 5 lbf/in.
Shipping weight 1.05 lbs (0.48 kg); packed in a bag; RoHS and REACH compliant. The flanged version is 1457TWPF-10, the 2-pack is 1457TWP, and matching gaskets (1457TPG-10 water-tight, 1457TEG-10 EMI) and screws (1457MS100) are available.
Ideal For
- Replacement end panels for 1457T enclosures
- Spare blanks for custom machining
- 1457T production builds
Overview
| Type | End Panels, Water-Tight |
| Series | 1457 Series |
| Pack Size | 10-pack |
| Product Type | Replacement end panel kit (no mounting flanges) |
| Short Description | 1457T END PANEL KIT (10 PACK) |
Identifiers
| UPC | 623980505671 |
| UNSPSC | 39121301 |
| Part Number | 1457TWP-10 |
Compatibility
| For Enclosure Part Numbers Beginning With | 1457T |
| 1457T Enclosure Extrusion Lengths (Series Table) | 160.00 and 220.00 mm |
| 1457T Enclosure Extrusion Width X Height (Series Table) | 165.50 mm x 54.00 mm |
Related Parts

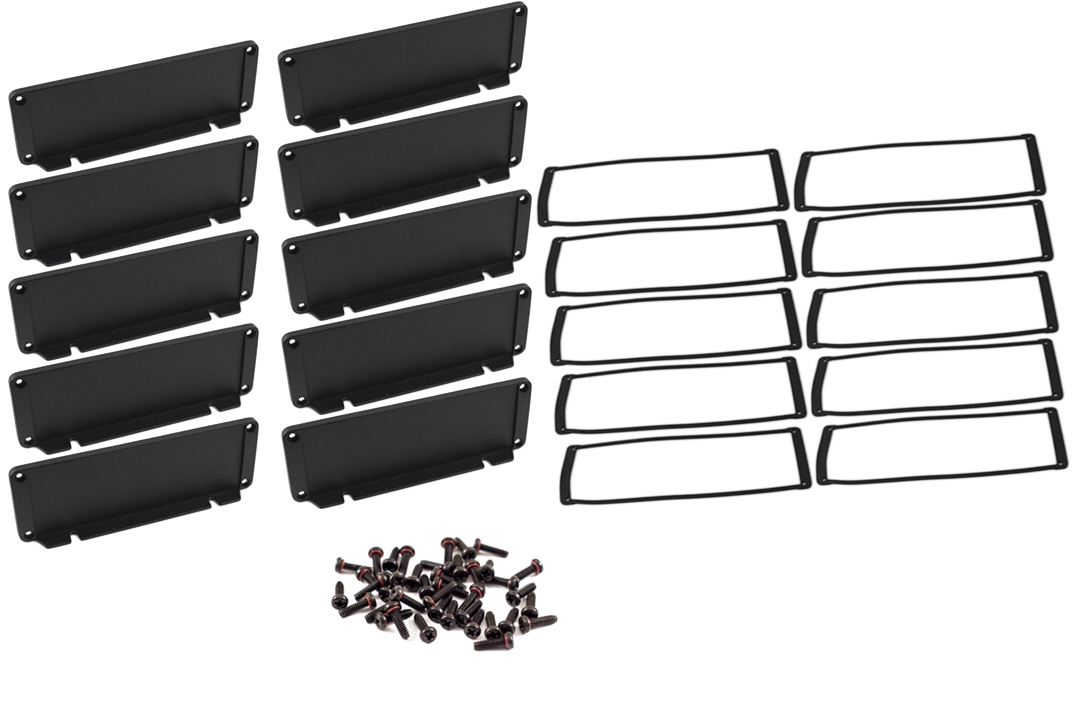

| Flanged Version | 1457TWPF-10 |
| Same Kit, 2-pack | 1457TWP |
| Replacement EMI Gaskets | 1457TEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457TPG-10 (10-pack) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 1.05 lbs (0.48 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum (Die-Cast Alloy) |
| End Panel Construction | Rugged yet easy to machine diecast aluminum with full perimeter self-adhesive gaskets |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures take the 1457TWP-10?▾
Enclosures whose part numbers begin with 1457T, including 1457T1601 and 1457T2201 and their variants.
Are these flanged?▾
No. For integrated mounting flanges order 1457TWPF-10.
How many are supplied?▾
It is a 10-pack; the 2-pack is 1457TWP.
What material are they?▾
Black die-cast aluminum alloy.
What is the shipping weight?▾
1.05 lbs (0.48 kg).
