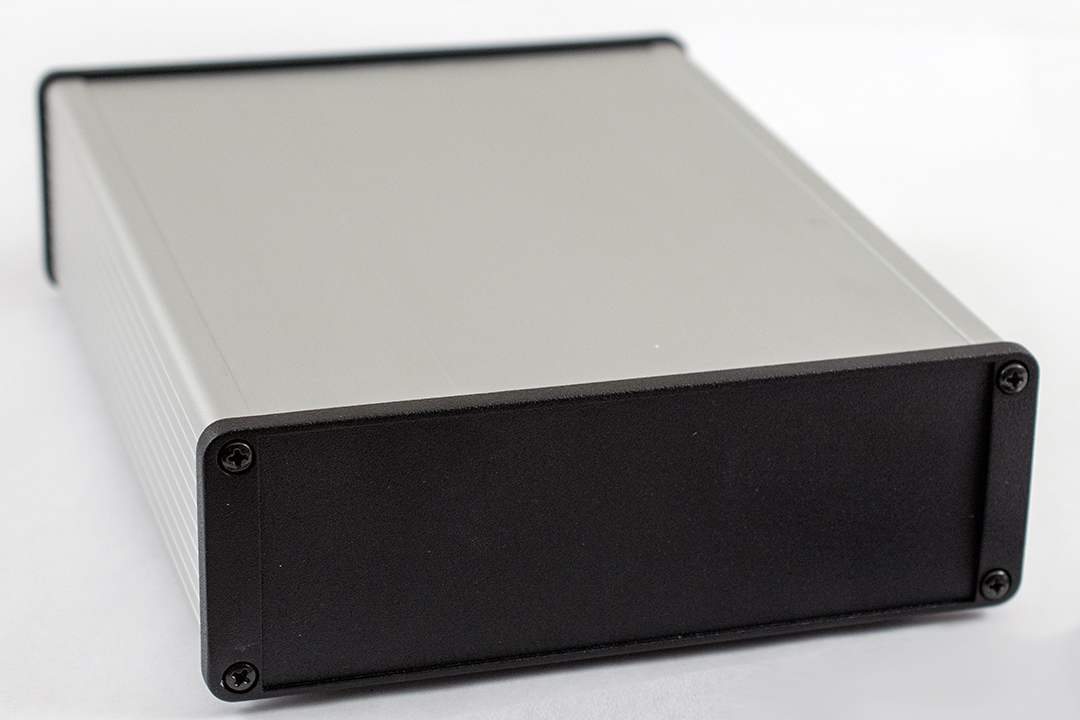

Hammond 1457T2201 220mm Wide IP65 Aluminum Enclosure, Clear Anodized
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 220 x 165 x 55 mm (8.66 x 6.51 x 2.15 in) extruded body
- Fits P.C. boards up to 219 x 159 mm
- Designed to meet IP65 with gasketed end panels
- Clear Anodized aluminum 6063 extrusion, 1.5 mm minimum wall
- 231.15 mm overall length with flat end panels
- Recessed area for labels or membrane keypad
- Screws, O-rings, rubber feet and gaskets included
The 1457T2201 is the longest 1457T watertight enclosure, offering a 220 mm extruded aluminum body for larger PC boards or equipment interfacing. It measures 8.66 in x 6.51 in x 2.15 in (220 mm x 165 mm x 55 mm) and is designed to meet IP65, suiting engineers who need space for a full-size board in a sealed metal case.
A single extrusion of aluminum 6063 forms the body, finished in clear anodized, with a minimum thickness of 0.06" (1.5 mm). The ends are closed by Type 380 diecast aluminum panels in black powder paint, which are easy to machine and seal with full perimeter self-adhesive gaskets.
Maximum P.C. board size on the part page is 219 mm x 159 mm, and the drawing notes it fits a 220 mm (8.661") x 160 mm (6.299") PCB. Boards slide horizontally into slots in the extrusion. Drawing dimensions include 220.00 ± 0.50 mm inside face to face, 161.00 mm inside width, 48.00 mm inside height, 231.15 mm overall length and 168.46 mm overall width.
The flat end panels have no flanges. Each purchased assembly includes the box, end panels, #6 Taptight screws with O-rings, self-adhesive rubber feet and gaskets, and a 0.75 mm recess on the body accepts a label or membrane keypad.
RoHS and REACH compliant. Shipping weight 1.43 lbs (0.65 kg), shrink wrapped.
Ideal For
- Large PC board housings up to 219 x 159 mm
- Watertight equipment interfacing
- Keypad-operated control units
- OEM electronic assemblies
PCB Fit
| Drawing Note | Fits 220mm (8.661") X 160mm (6.299") PCB |
| PCB Mounting | Boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Max PCB Width (Series Table) | 160.00 mm |
| Max PCB Length (Series Table) | 220.00 mm |
| Max. P.C. Board Width (Part Page) | 159 mm |
| Max. P.C. Board Length (Part Page) | 219 mm |
Overview
| Type | Water-tight |
| Series | 1457 Series |
| Product Type | Watertight extruded aluminum enclosure |
| End Panel Style | Flat, no mounting flanges |
| Short Description | 1457T 220MM ENCL CLEAR ANOD V1 |
| Sibling Part (With Flanges) | 1457T2202 |
| Sibling Part (Black Powder Coat) | 1457T2201BK |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Inside Width | 161.00 ± 0.75 mm [6.339 ± 0.030 in] |
| Inside Height | 48.00 ± 0.60 mm [1.890 ± 0.024 in] |
| Overall Width | 168.46 mm [6.632 in] |
| Size L X W X H | 8.66 in x 6.51 in x 2.15 in (220 mm x 165 mm x 55 mm) |
| Extrusion Width | 165.50 mm |
| Extrusion Height | 54.00 mm |
| Extrusion Length | 220.00 mm |
| Body Wall Thickness | 2.00 ± 0.20 mm [0.079 ± 0.008 in] |
| Label/Keypad Recess Depth | 0.75 mm (0.030") |
| Inside Face-to-Face Length | 220.00 ± 0.50 mm [8.661 ± 0.020 in] |
| Overall Height (Side View) | 54.00 mm [2.126 in] |
| Additional Drawing Dimensions | 219.15 mm [8.628 in]; 147.50 mm [5.807 in]; 56.92 mm [2.241 in]; 56.96 mm [2.243 in]; 46.00 mm [1.811 in]; 53.16 mm [2.093 in]; 147.66 mm [5.813 in]; 156.75 mm [6.171 in] |
| Overall Length (With End Panels) | 231.15 mm [9.100 in] |
| Internal Board-Slot Details (Detail A) | 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
Identifiers
| UPC | 623980032290 |
| UNSPSC | 39121301 |
| Part Number | 1457T2201 |
Related Parts
| Replacement EMI Gaskets | 1457TEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457TPG-10 (10-pack) |
| EMI/RFI Shielded IP 54) Versions | 1457T2201E (clear anodized box, black powder painted end panels); 1457T2201EBK (black powder painted box and end panels) |
| Replacement End Panel Kits (No Flanges) | 1457TWP (2-pack), 1457TWP-10 (10-pack) |
| Replacement End Panel Kits (With Flanges) | 1457TWPF (2-pack), 1457TWPF-10 (10-pack) |
Package Contents
| Includes | Extruded aluminum body, two diecast aluminum end panels, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-ring, adhesive rubber feet |
| Purchased Assembly Includes | Box, end panels, #6 Taptight screws w/ O-Rings, self adhesive rubber feet, and gaskets |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.43 lbs (0.65 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| End Panels | Type 380 diecast aluminum, black powder paint finish |
| Label Area | Recessed area for labels or membrane keypad |
| Body Material | Aluminum (Extruded), Extruded Aluminum 6063 |
| Assembly Screws | Thread forming screws, black zinc plated to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| End Panel Gaskets | Full perimeter self-adhesive gaskets; two closed-cell polyethylene foam end plate gaskets included |
| Drawing Finish Note | Clear anodized box with black powder painted end panels |
| Recommended Screw Torque | 5 lbf/in |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Designed to meet IP65 (drawing: Protection to IP 65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How big a board fits in the 1457T2201?▾
Up to 219 mm x 159 mm per the part page; the drawing notes it fits a 220 mm x 160 mm PCB.
What are the overall dimensions?▾
Nominal 220 mm x 165 mm x 55 mm; the drawing shows 231.15 mm overall length across the end panels and 168.46 mm overall width.
What IP rating does it have?▾
IP65.
Which replacement end panels fit?▾
1457TWP (2-pack) and 1457TWP-10 (10-pack) for flat panels; 1457TWPF and 1457TWPF-10 for flanged panels.
What is the recommended screw torque?▾
5 lbf/in. Replacement assembly screws are sold in packs of 100 as 1457MS100.
Related Products

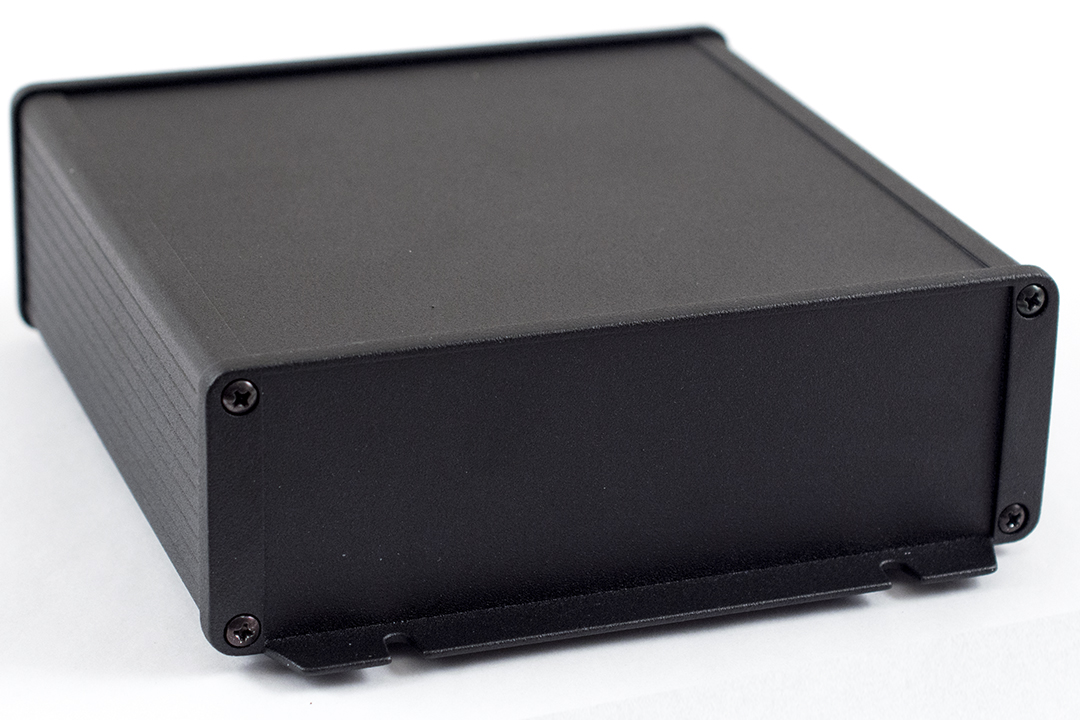

Save 52%1457T1602BK — 1457T 160MM Enclosure BK3 Paint V2
Hammond Manufacturing · 1457T1602BK

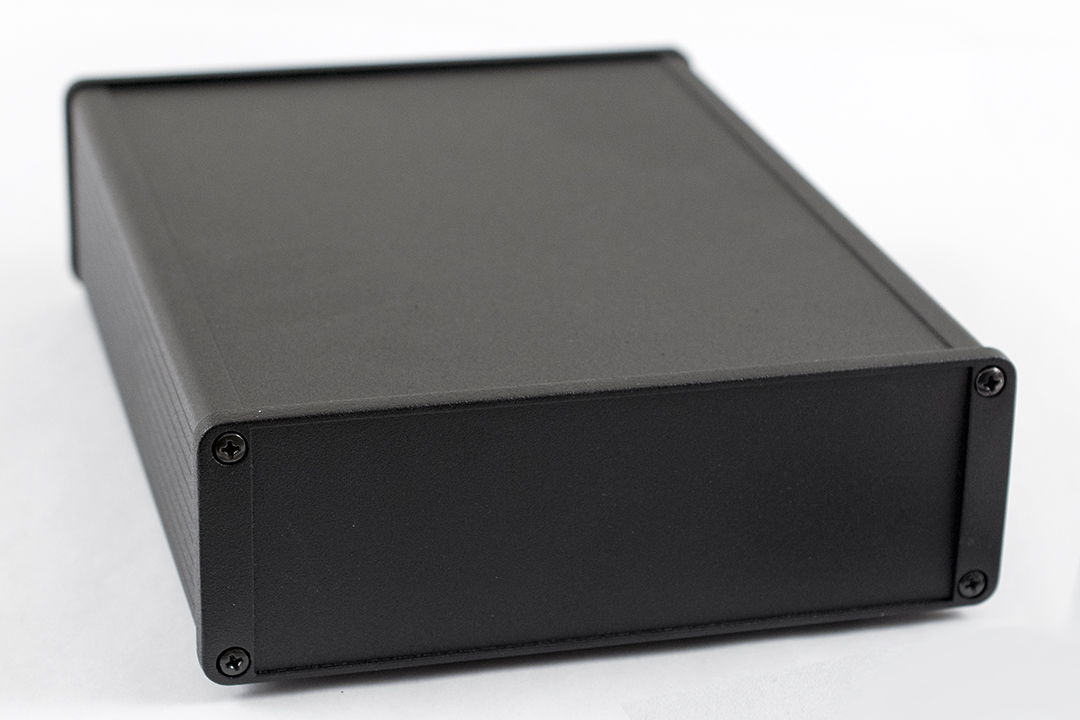

Save 52%1457T2201BK — 1457T 220MM Enclosure BK3 Paint V1
Hammond Manufacturing · 1457T2201BK

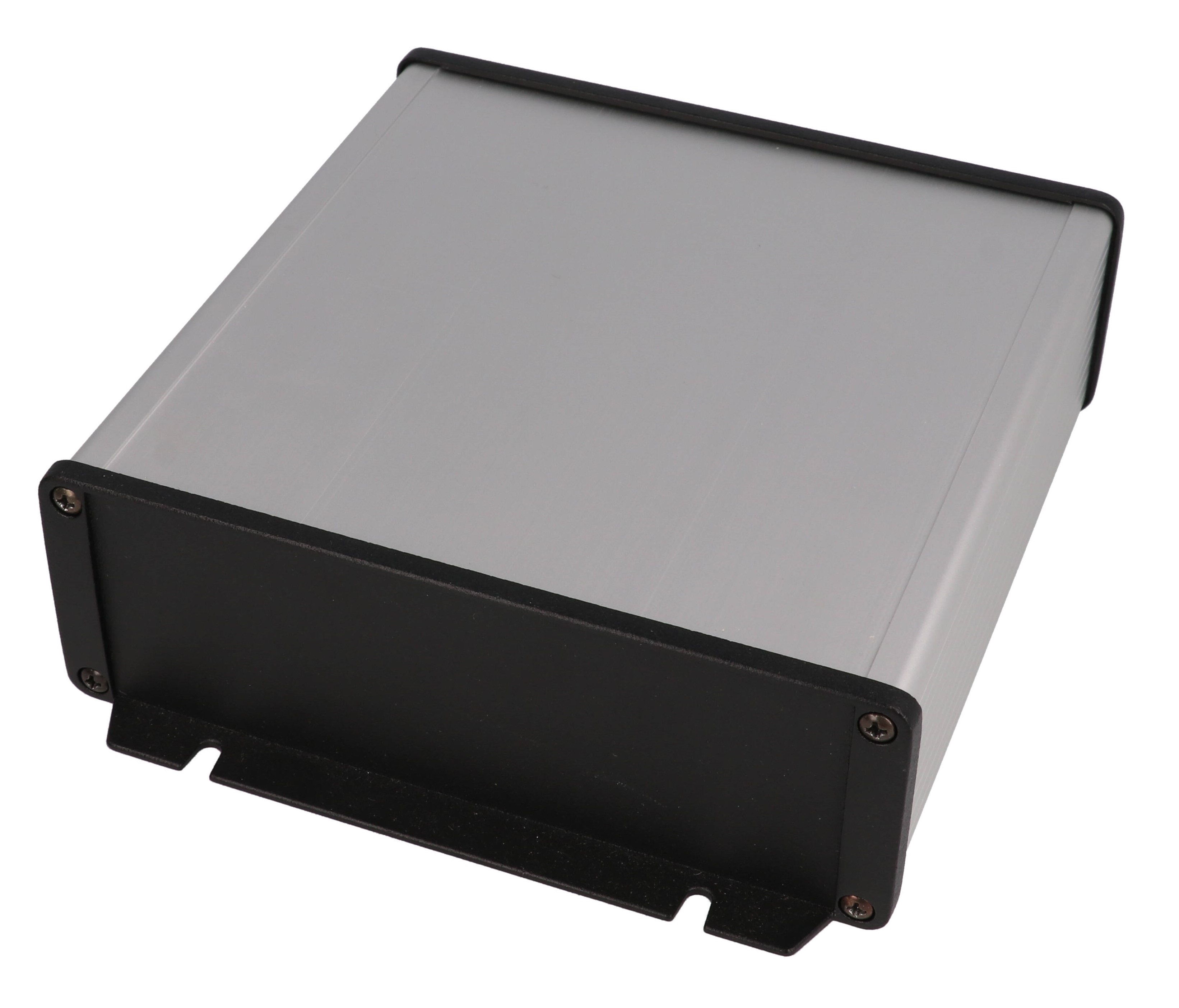

Save 52%1457T1602 — 1457T 160MM Enclosure Clear ANOD V2
Hammond Manufacturing · 1457T1602
Save 52%1457T2202 — 1457T 220MM Enclosure Clear ANOD V2
Hammond Manufacturing · 1457T2202

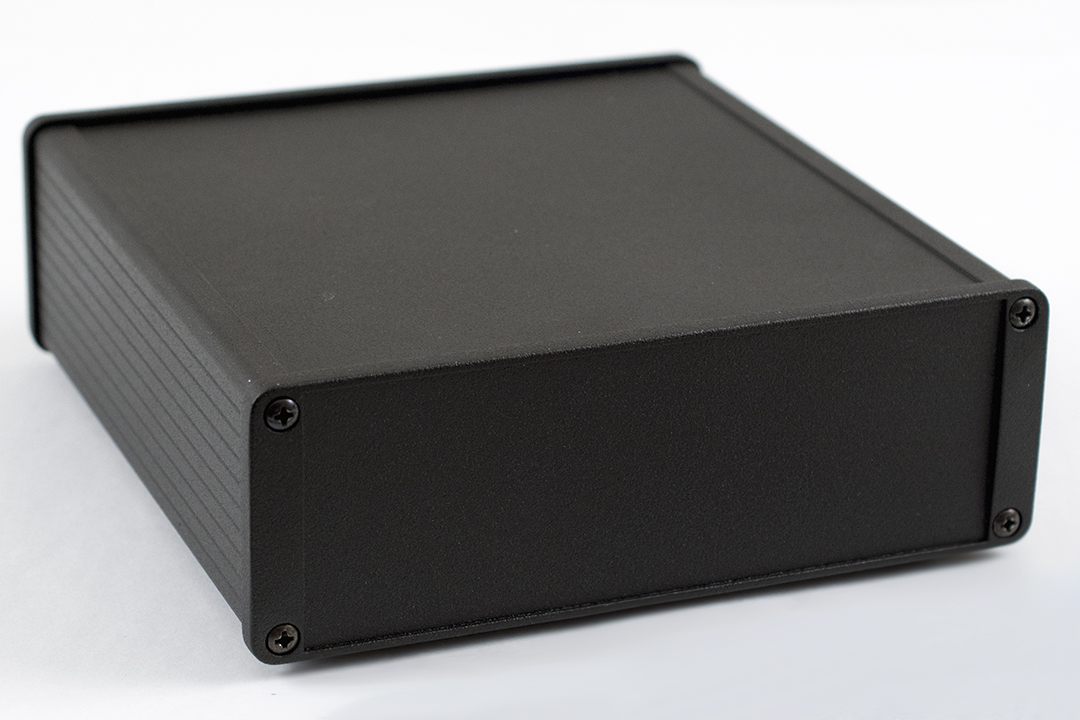

Save 52%1457T1601BK — 1457T 160MM Enclosure BK3 Paint V1
