Hammond 1457N1201 120mm IP65 Extruded Aluminum Enclosure, Clear Anodized
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65 for watertight protection of electronics
- 120 x 104 x 55 mm (4.73 x 4.09 x 2.15 in) one-piece extruded aluminum body
- Clear Anodized extrusion finish with black powder painted diecast end panels
- PC boards slide horizontally into internal slots; max board 119 x 99 mm
- Flat diecast aluminum end panels with full perimeter self-adhesive gaskets
- Recessed 0.75 mm area on the body for labels or a membrane keypad
- Ships with #6 Taptight screws with O-rings, rubber feet and gaskets

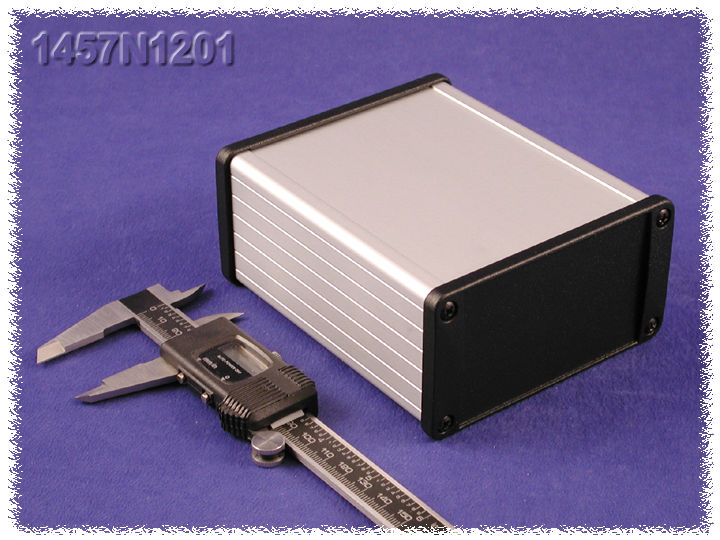

The 1457N1201 is a watertight extruded aluminum enclosure from the 1457 Series, built for OEM engineers and integrators who need to house a PC board or interface equipment in a sealed, heavy-duty box. It measures 4.73 in x 4.09 in x 2.15 in (120 mm x 104 mm x 55 mm) and is designed to meet IP65.
The body is one piece of extruded aluminum 6063 with a minimum thickness of 0.06" (1.5 mm), supplied in a clear anodized finish and closed with black powder painted end panels. The end panels are Type 380 diecast aluminum, rugged yet easy to machine for connectors and switches, and seal with full perimeter self-adhesive gaskets.

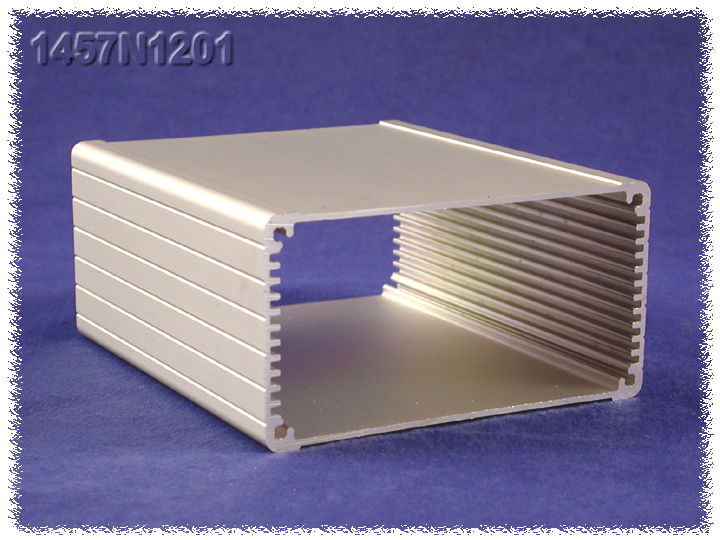

Circuit boards mount horizontally by sliding into internal slots extruded into the body. The part page lists a maximum board size of 119 mm x 99 mm, and the drawing notes that it fits a 120 mm (4.724") x 100 mm (3.937") PCB. The inside face-to-face length is 120.00 mm and the overall length with end panels is 132.15 mm.
This version uses flat end panels without mounting flanges, so it suits bench, desktop or in-equipment use. The purchased assembly includes the box, end panels, #6 Taptight screws with O-rings, self-adhesive rubber feet and gaskets. A 0.75 mm (0.030") deep recess on the body takes a label or membrane keypad.
RoHS and REACH compliant. Shipping weight is 0.64 lbs (0.29 kg). Replacement end panel kits (1457NWP), gaskets (1457NPG-10) and screws (1457MS100) are listed separately.
Ideal For
- PC board housing for Eurocard-format electronics
- Watertight equipment interfacing enclosures
- Membrane keypad control units
- OEM electronic instrument cases
PCB Fit
| Drawing Note | Fits 120mm (4.724") X 100mm (3.937") PCB |
| PCB Mounting | Boards mount horizontally by sliding into internal slots extruded into the enclosure body |
| Max PCB Width (Series Table) | 100.00 mm |
| Max PCB Length (Series Table) | 120.00 mm |
| Max. P.C. Board Width (Part Page) | 99 mm |
| Max. P.C. Board Length (Part Page) | 119 mm |
Overview
| Type | Water-tight |
| Series | 1457 Series |
| Product Type | Watertight extruded aluminum enclosure |
| End Panel Style | Flat, no mounting flanges |
| Long Description | watertight extruded aluminum enclosure 2.15x4.09x4.72 |
| Short Description | 1457N 120MM ENCL CLEAR ANOD V1 |
| Sibling Part (With Flanges) | 1457N1202 |
| Sibling Part (Black Powder Coat) | 1457N1201BK |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Dimensions
| Inside Width | 101.00 ± 0.70 mm [3.976 ± 0.028 in] |
| Inside Height | 50.11 ± 0.60 mm [1.973 ± 0.024 in] |
| Overall Width | 107.95 mm [4.250 in] |
| Size L X W X H | 4.73 in x 4.09 in x 2.15 in (120 mm x 104 mm x 55 mm) |
| Extrusion Width | 104.00 mm |
| Extrusion Height | 55.00 mm |
| Extrusion Length | 120.00 mm |
| Body Wall Thickness | 2.00 ± 0.20 mm [0.079 ± 0.008 in] |
| End Panel Size (W X H) | 108.00 mm [4.252 in] x 58.54 mm [2.305 in] |
| Label/Keypad Recess Depth | 0.75 mm (0.030") |
| Inside Face-to-Face Length | 120.00 ± 0.50 mm [4.724 ± 0.020 in] |
| Overall Height (Side View) | 54.61 mm [2.150 in] |
| Additional Drawing Dimensions | 117.15 mm [4.612 in]; 86.00 mm [3.386 in]; 96.02 mm [3.780 in]; 58.61 mm [2.308 in]; 54.33 mm [2.139 in]; 45.14 mm [1.777 in]; 83.72 mm [3.296 in]; R5.99 mm [0.236 in] (4X) |
| Overall Length (With End Panels) | 132.15 mm [5.203 in] |
| Internal Board-Slot Details (Detail A) | 1.50 mm [0.059 in]; 2.50 mm [0.098 in] |
Identifiers
| UPC | 623980006017 |
| UNSPSC | 39121301 |
| Part Number | 1457N1201 |
Related Parts
| Replacement EMI Gaskets | 1457NEG-10 (10-pack) |
| Replacement Assembly Screws | 1457MS100 (pack of 100) |
| Replacement Water-Tight Gaskets | 1457NPG-10 (10-pack) |
| EMI/RFI Shielded IP 54) Versions | 1457N1201E (clear anodized box, black powder painted end panels); 1457N1201EBK (black powder painted box and end panels) |
| Replacement End Panel Kits (No Flanges) | 1457NWP (2-pack), 1457NWP-10 (10-pack) |
| Replacement End Panel Kits (With Flanges) | 1457NWPF (2-pack), 1457NWPF-10 (10-pack) |
Package Contents
| Includes | Extruded aluminum body, two diecast aluminum end panels, two closed-cell polyethylene foam end plate gaskets, stainless steel assembly hardware with rubber o-ring, adhesive rubber feet |
| Purchased Assembly Includes | Box, end panels, #6 Taptight screws w/ O-Rings, self adhesive rubber feet, and gaskets |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| End Panels | Type 380 diecast aluminum, black powder paint finish |
| Label Area | Recessed area for labels or membrane keypad |
| Body Material | Aluminum (Extruded), Extruded Aluminum 6063 |
| Assembly Screws | Thread forming screws, black zinc plated to ASTM B633-13: Type II rating (96 hour Salt Spray Test), SC3 severe rating (12 micron thickness coating) |
| Extrusion Finish | Clear Anodize |
| Assembly Hardware | Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet |
| Body Construction | One piece of extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| End Panel Gaskets | Full perimeter self-adhesive gaskets; two closed-cell polyethylene foam end plate gaskets included |
| Drawing Finish Note | Clear anodized box with black powder painted end panels |
| Recommended Screw Torque | 5 lbf/in |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Designed to meet IP65 (drawing: Protection to IP 65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size circuit board fits the 1457N1201?▾
The part page lists a maximum P.C. board length of 119 mm and width of 99 mm. The drawing notes it fits a 120 mm (4.724") x 100 mm (3.937") PCB, mounted horizontally in slots extruded into the body.
Is the 1457N1201 waterproof?▾
It is designed to meet IP65, and the drawing lists protection to IP 65. The end panels seal with full perimeter self-adhesive gaskets.
Does it have wall-mounting flanges?▾
No. 1457N1201 uses flat end panels. The flanged version with the same body is 1457N1202, and flanged end panel kits are sold as 1457NWPF (2-pack).
What is included?▾
The box, two diecast aluminum end panels, gaskets, #6 Taptight screws with O-rings and self-adhesive rubber feet.
What finish does it have?▾
A clear anodized box with black powder painted end panels. A black version is 1457N1201BK.
