Hammond 1457KWPF K-Profile Flanged End Panel & Gasket Kit, 2-Pack

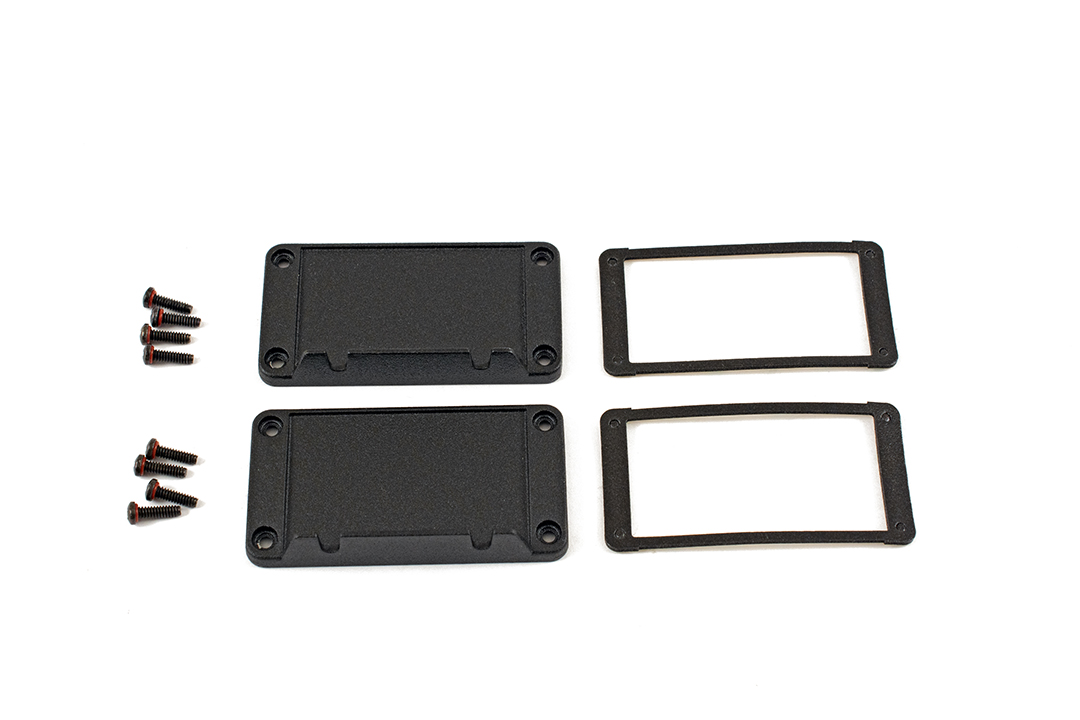

The 1457KWPF is a 2-pack of flanged watertight end panels with gaskets for the K-profile 1457 enclosures. The integrated mounting flanges give a K-size enclosure a surface-mounting option for walls, cabinets or machine frames.

In the 1457 series ordering table this kit is listed for enclosure part numbers beginning with 1457K, which covers the 1457K1201, 1457K1202, 1457K1601, 1457K1602 and their BK versions. Per the series data, those enclosures use an extrusion 84.00 mm wide by 44.00 mm high. It appears under End Panel Kit w/ Integrated Mounting Flanges, 2-pack.

The panels are die-cast aluminum alloy in black; the series describes its end panels as rugged yet easy to machine diecast aluminum painted in a durable, black satin powder paint, with full perimeter self-adhesive gaskets. The kit carries an IP65 rating, matching the series' watertight design, and its integrated flanges provide the series' wall-mounting option.

The 1457KWPF is REACH and RoHS compliant and ships in a bag at 0.09 lbs (0.04 kg). For the same kit in the other pack size order 1457KWPF-10; the plain (no flange) equivalent is 1457KWP. Assembly screws are available separately in packs of 100 as 1457MS100, and the series recommends a screw torque of 5 lbf/in. Replacement water-tight gaskets are also offered in 10-packs as 1457KPG-10.
