Hammond 1457JWP J-Profile End Panel & Gasket Kit, 2-Pack

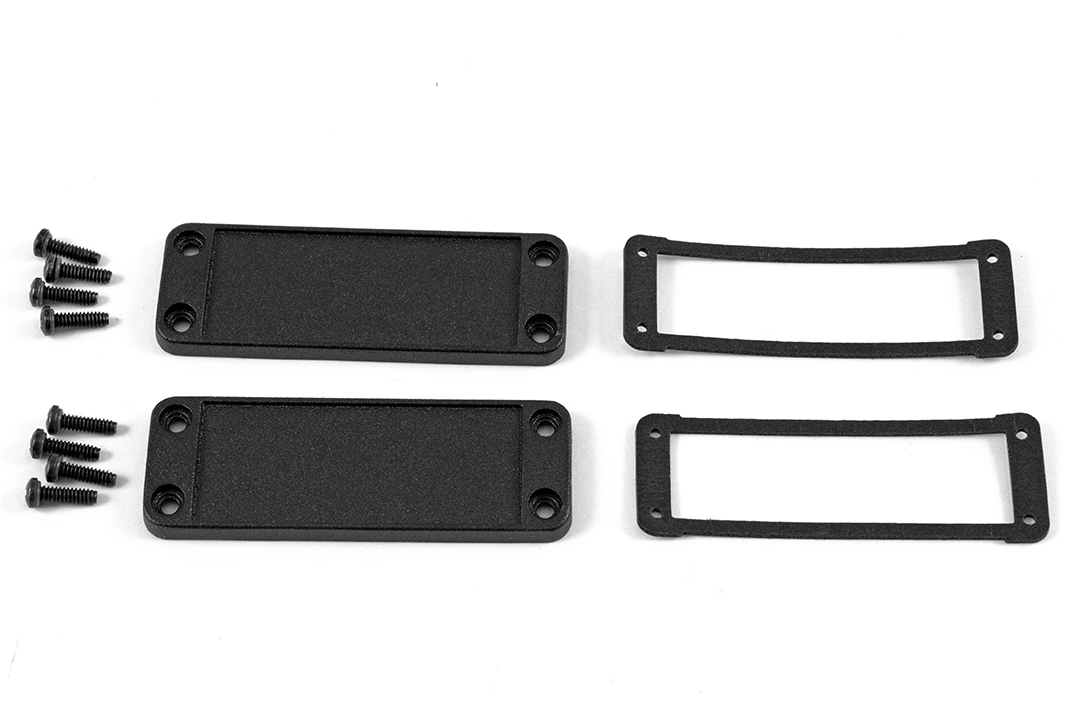

The 1457JWP is a replacement end panel and gasket kit, sold as a 2-pack, for the slim J-profile 1457 enclosures. It is the part to reach for when an end panel has been machined for the wrong connector layout, damaged in service, or when you want a spare set on hand for prototypes.

In the 1457 series ordering table this kit is listed for enclosure part numbers beginning with 1457J, which covers the 1457J1201, 1457J1202, 1457J1601, 1457J1602 and their BK versions. Per the series data, those enclosures use an extrusion 84.00 mm wide by 28.50 mm high. It appears under End Panel Kit (No Mounting Flanges), 2-pack.

The panels are die-cast aluminum alloy in black; the series describes its end panels as rugged yet easy to machine diecast aluminum painted in a durable, black satin powder paint, with full perimeter self-adhesive gaskets. The kit carries an IP65 rating, matching the series' watertight design, and the plain panels keep the enclosure length compact with no mounting flanges.

The 1457JWP is REACH and RoHS compliant and ships in a bag at 0.08 lbs (0.04 kg). For the same kit in the other pack size order 1457JWP-10; the flanged equivalent is 1457JWPF. Assembly screws are available separately in packs of 100 as 1457MS100, and the series recommends a screw torque of 5 lbf/in. Replacement water-tight gaskets are also offered in 10-packs as 1457JPG-10.
