Hammond 1455Q1601 160x125x51.5mm Clear Aluminum Enclosure, Metal Ends
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 125 x 51.5 mm extruded aluminum enclosure, clear anodized finish
- Takes PC boards up to 159 x 119.5 mm; extrusion designed for 120 mm wide boards
- PC boards slide horizontally into internal slots extruded into the body
- Removable sliding plate; body minimum thickness 0.06 in (1.5 mm)
- Includes two colour-matched aluminum end panels plus two black open plastic bezels
- IP54 rated; RoHS and REACH compliant
- Four adhesive rubber feet and #6 x 3/8 in end panel screws (natural) included
- Optional flanged end panel 1455QF shown on the drawing

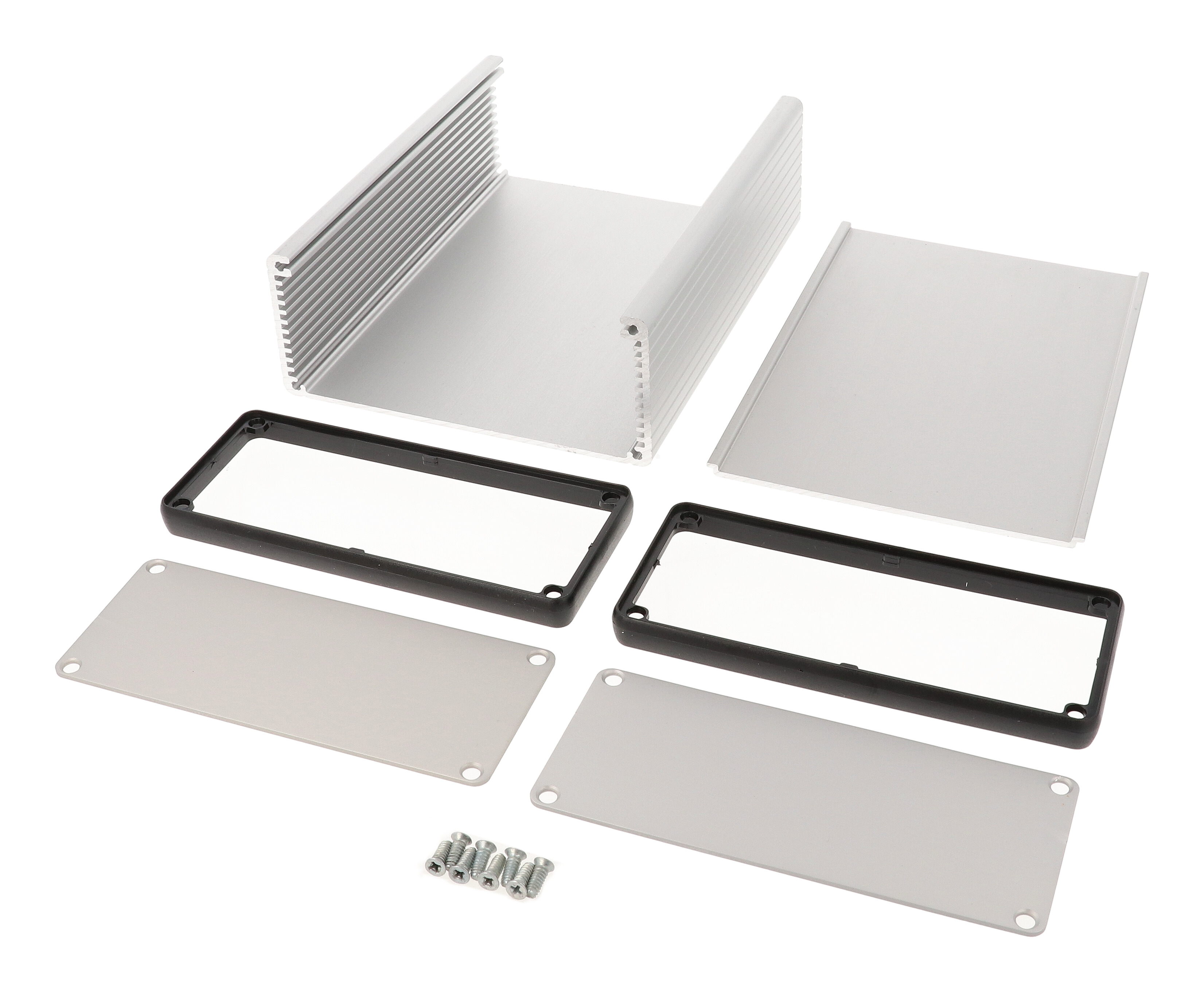

The 1455Q1601 is a clear anodized extruded aluminum PC board enclosure measuring 160 x 125 x 51.5 mm with metal end panels and a removable sliding plate. It is built for electronics designers, OEM engineers and integrators who need to house PC boards or interface equipment in a compact, rugged metal case.
The body is extruded aluminum with a minimum thickness of 0.06 in (1.5 mm), and PC boards mount horizontally by sliding into internal slots extruded into the body. The extrusion is designed for a 120 mm wide PC board; the maximum board size is 159 mm long by 119.5 mm wide. The enclosure carries an IP54 rating.
Each 1455Q1601 ships with two flat aluminum end panels colour matched to the housing and two open plastic bezels in black, four adhesive rubber feet and #6 x 3/8 in thread-rolling steel end panel screws with a #4 flat head Phillips drive; clear anodized versions include natural screws. The flat end plates measure 125.02 mm [4.922 in] x 51.13 mm [2.013 in] on the drawing, which also shows an optional flange end panel, 1455QF, sold as a kit of two panels with black pan head assembly screws.
Recommended screw torque is 5 lbf-in. Replacement feet are 1421T2CL (pack of 24) and replacement screws are 1455MS100 (quantity 100). Hammond notes that enclosures can be factory modified (milling, drilling, printing) and that solid models are available in STEP or IGES. The 1455Q1601 is RoHS and REACH compliant, ships in shrink wrap and has a shipping weight of 0.92 lbs (0.42 kg).
Ideal For
- Housing PC boards up to 159 x 119.5 mm
- Equipment interfacing enclosures
- OEM electronics requiring an IP54 metal case
- Enclosures with flat aluminum end panels and open bezels
Overview
| Type | PC Board Enclosure |
| Series | 1455 Series Extruded Aluminum Enclosures |
| Description | extruded aluminum enclosure w/ metal end panels |
| Part Number | 1455Q1601 |
| Anodize Color | Clear |
| Sliding Plate | Yes (listed under Enclosures With Sliding Plate) |
| End Panel Type | Aluminum (metal) end panels with open plastic bezels |
| Short Description | 160X125X51.5MM EXTRUDED ENCL |
| Companion Part (Plastic End Panels) | 1455Q1602 |
| Colour Variants (This Size & End Type) | Clear 1455Q1601, Black 1455Q1601BK, Blue 1455Q1601BU, Red 1455Q1601RD |
Dimensions
| Max. P.C. Board Width | 119.5 mm |
| PC Board Design Width | Extrusion designed for 120 mm wide PC board |
| Depth (Ordering Table) | 51.50 mm |
| Max. P.C. Board Length | 159 mm |
| Minimum Body Thickness | 0.06 in (1.5 mm) |
| Width (Ordering Table) | 125.00 mm |
| Length (Ordering Table) | 160.00 mm |
| End Plate Size (Drawing) | 125.02 mm [4.922 in] x 51.13 mm [2.013 in] |
| Nominal Size (L X W X H) | 6.3 in x 4.92 in x 2.05 in (160 mm x 125 mm x 52 mm) |
| Overall Length (Drawing) | 160.00 ± 0.50 mm [6.299 ± 0.020 in] |
| Extrusion Width (Drawing) | 125.00 mm [4.921 in] |
| Open Bezel Size (Drawing) | 129.00 mm [5.079 in] x 55.13 mm [2.170 in] |
| Extrusion Height (Drawing) | 51.50 mm [2.028 in] |
| Open Bezel Depth (Drawing) | 7.00 mm [0.276 in] / 10.50 mm [0.413 in] |
| Internal Width Dimension (Drawing) | 120.48 ± 0.89 mm [4.743 ± 0.035 in] |
| Internal Height Dimension (Drawing) | 47.50 ± 0.61 mm [1.870 ± 0.024 in] |
Identifiers
| UPC | 623980582818 |
| UNSPSC | 39121301 |
Assembly & Hardware
| Included | Extruded aluminum body with sliding plate; two flat aluminum end panels, colour matched to housing; two open plastic bezels, black; four adhesive rubber feet; end panel screws |
| CAD Models | Solid models available in STEP or IGES |
| Screw Finish | Natural (clear anodized versions) |
| End Panel Screws | #6 x 3/8 in thread rolling, steel, #4 flat head Phillips drive |
| PC Board Mounting | Horizontal, sliding into internal slots extruded into the body |
| Replacement Screws | 1455MS100 (quantity 100) |
| Factory Modification | Milling, drilling, printing etc. |
| Replacement Rubber Feet | 1421T2CL (pack of 24) |
| Recommended Screw Torque | 5 lbf-in |
| Optional Flange End Panel | 1455QF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.92 lbs (0.42 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| Finish | Anodize |
| Material | Aluminum (Extruded) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1455Q1601?▾
The maximum PC board size is 159 mm long by 119.5 mm wide, and the extrusion is designed for a 120 mm wide board. Boards slide horizontally into internal slots in the body.
What comes with the enclosure?▾
The extruded aluminum body with sliding plate, two flat aluminum end panels colour matched to the housing, two black open plastic bezels, four adhesive rubber feet and #6 x 3/8 in end panel screws.
What are the outside dimensions?▾
The ordering table lists 160.00 x 125.00 x 51.50 mm (length x width x depth); the nominal size is 6.3 in x 4.92 in x 2.05 in (160 mm x 125 mm x 52 mm).
Does it have an IP rating?▾
Yes, the manufacturer lists an IP54 rating.
What torque should the end panel screws be tightened to?▾
The recommended screw torque is 5 lbf-in. Replacement screws are 1455MS100 (quantity 100).
Can the end panels be changed or flanged?▾
Extra aluminum end panels for 1455Q enclosures are sold in 10-packs (1455QAL-10, 1455QALBK-10, 1455QALBU-10, 1455QALRD-10), and the drawing shows an optional flange end panel, 1455QF.
