Hammond 1455P1601BU 160x125x30.5mm Blue Aluminum Enclosure, Metal Ends

The 1455P1601BU is a blue anodized extruded aluminum PC board enclosure from the 1455 Series, sized at 160 x 125 x 30.5 mm (6.3 in x 4.92 in x 1.22 in). It is built for engineers and integrators who need a rugged, compact housing for circuit boards or equipment interfacing, and its blue anodize finish makes it easy to colour-code units in a product line or on a bench.

The body is extruded from 6063 aluminum with a minimum wall thickness of 0.06" (1.5 mm). PC boards mount horizontally by sliding into slots extruded into the enclosure body; the extrusion is designed for a 120 mm wide PC board, and this size accepts a board up to 159 mm long and 119.5 mm wide. A removable sliding plate is included, and the enclosure carries an IP54 rating.

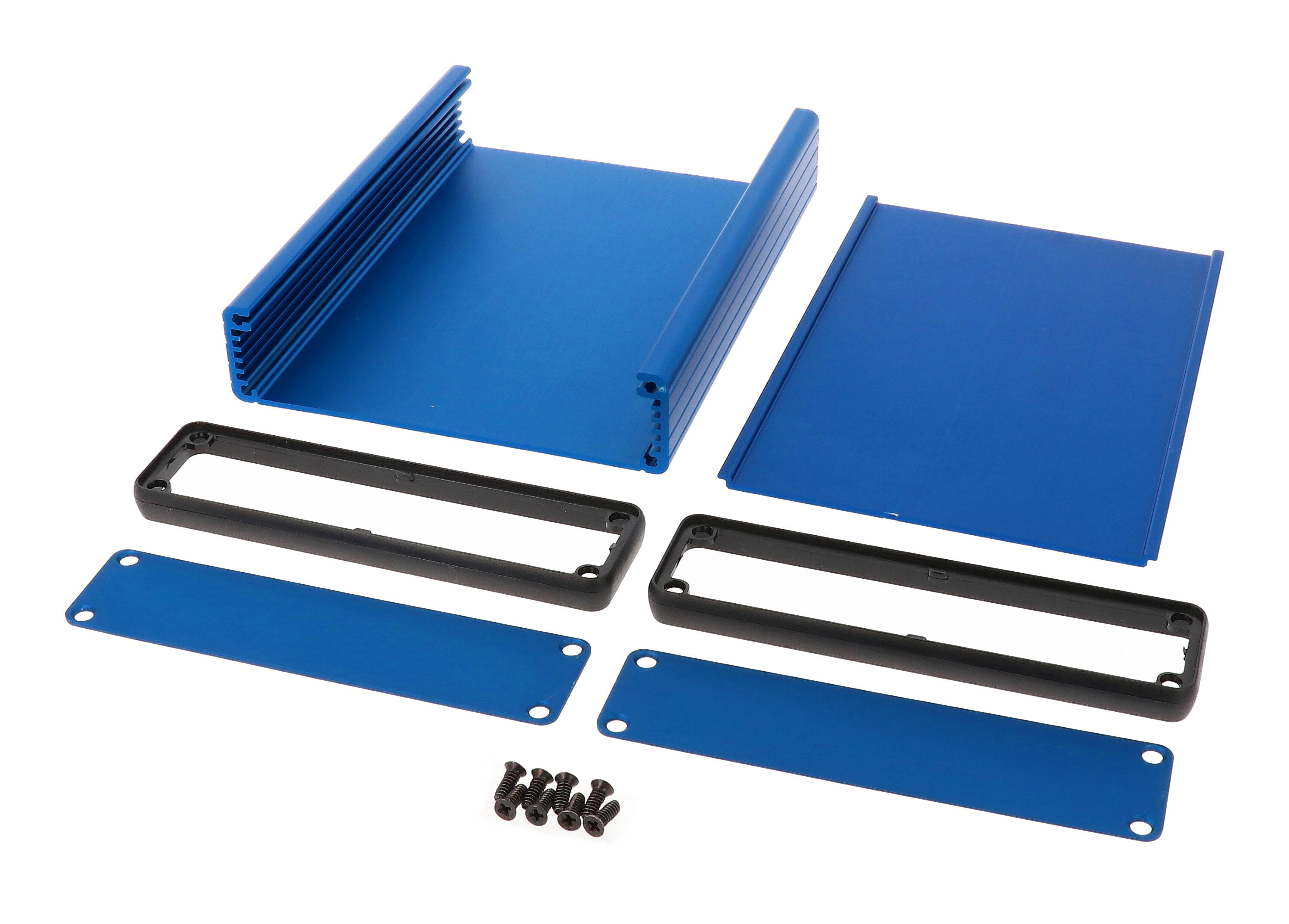

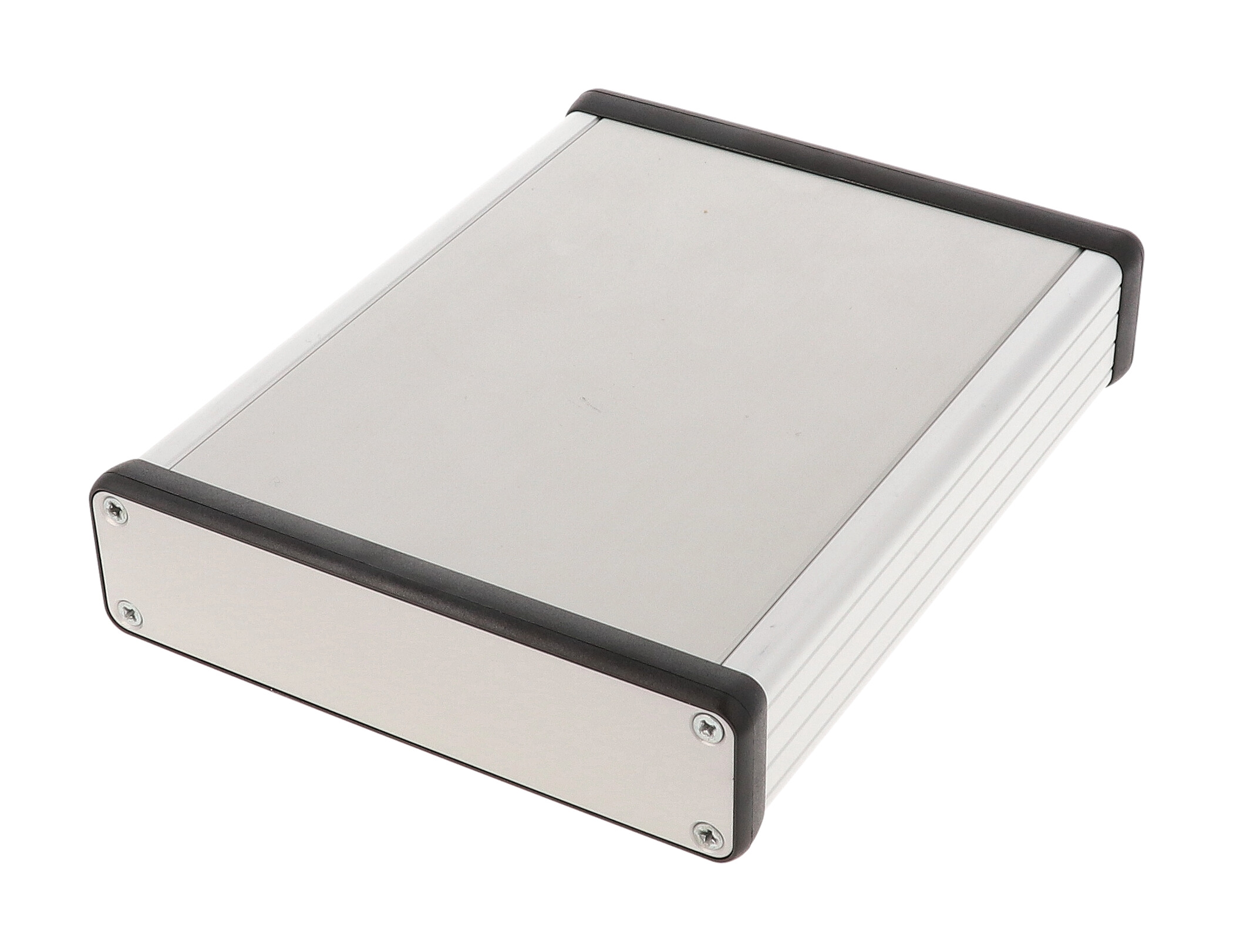

Each 1455P1601 version ships as a complete enclosure with two flat aluminum end panels colour-matched to the blue housing, plus two open black plastic bezels. The bezels are polycarbonate. Assembly uses #6 x 3/8" thread rolling steel end panel screws with a #4 flat head Phillips drive; this blue version includes black screws, with a recommended torque of 5 lbf-in. Four adhesive rubber feet are also included. Optional flanged end panels (1455PF) are shown on the part drawing.

• Drawing length: 160.00 ±0.50 mm [6.299 ±0.020 in]; outer width 125.00 mm [4.921 in]; height 30.51 mm [1.201 in]
• Inside width 120.48 ±0.89 mm [4.743 ±0.035 in], inside height 26.51 ±0.38 mm [1.044 ±0.015 in]
• Shipping weight 0.77 lbs (0.35 kg), packed in shrink wrap
• RoHS and REACH compliant

Enclosures can be factory modified (milling, drilling, printing and similar), and solid models of this enclosure are available in STEP or IGES for fitting boards and panels in CAD before ordering.
