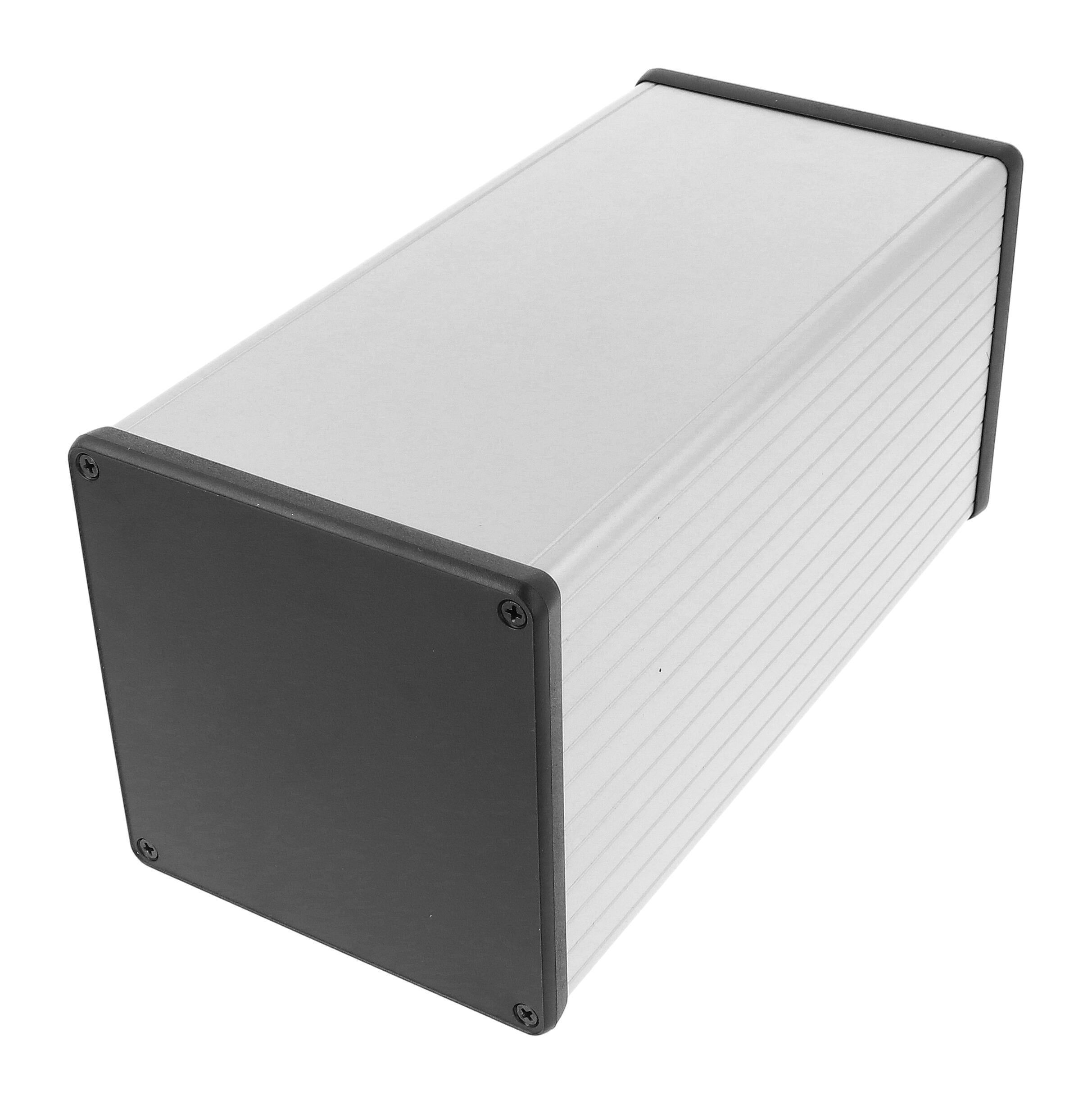

Hammond 1455NS2202 220 mm Square Clear Aluminum Enclosure, Closed Bezels
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 220 x 103 x 103 mm square extruded aluminum enclosure, clear anodize
- Extrusion designed for a 100 mm wide PC board; boards slide into internal slots
- Includes two black closed plastic end panels (closed bezels)
- Rugged extruded aluminum body, minimum thickness 0.06 in (1.5 mm)
- Four adhesive rubber feet included
- No sliding plate - listed among 1455 enclosures without sliding plate
- Factory modification (milling, drilling, printing); STEP or IGES models
- RoHS and REACH compliant
The 1455NS2202 is a clear anodized extruded aluminum enclosure from the 1455 Series with a square profile listed as 220 x 103 x 103 mm. It is built to house PC boards or for equipment interfacing, and its extrusion is designed for a 100 mm wide PC board, making it a fit for OEM engineers, test and control builders and anyone packaging a 100 mm board in a rugged metal case.
Boards mount horizontally by sliding into internal slots extruded into the enclosure body; this 1455NS model is listed among the enclosures without a sliding plate. The body is extruded aluminum with a minimum thickness of 0.06 in (1.5 mm). At 220 mm long it is the longest of the three 1455NS lengths (120, 160 and 220 mm), for longer boards or assemblies that need extra depth along the extrusion.
The part lists a size of 8.66 in x 4.11 in x 4.11 in (220 mm x 104 mm x 104 mm), with an overall length of 220.00 ± 0.50 mm [8.661 ± 0.020 in] on the drawing and a 104.45 mm [4.112 in] square extrusion. The closed bezels measure 107.75 mm [4.242 in]. Shipping weight is 1.52 lbs (0.69 kg).
The enclosure ships with two closed black plastic end panels (closed bezels), plus four adhesive rubber feet. If you would rather fit aluminum end panels, the metal end panel version of this size is 1455NS2201. The enclosure can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES.
1455NS2202 is RoHS and REACH compliant. It is also offered in black anodize as 1455NS2202BK.
Ideal For
- Housing 100 mm wide PC boards
- Equipment interfacing enclosures
- OEM electronics packaging needing a rugged aluminum case
- Fully closed ends with plastic end caps
Overview
| Series | 1455 Series Extruded Aluminum Enclosures |
| PC Board | Extrusion designed for 100 mm wide PC board; boards mount horizontally in internal extruded slots |
| Product Type | Extruded aluminum enclosure, square profile |
| Sliding Plate | No (Enclosures Without Sliding Plate) |
| Long Description | extruded aluminum enclosure w/ CLOSED BEZELS |
| Companion Version | 1455NS2201 (aluminum end panels) |
| End Configuration | Plastic end panels (closed bezels) |
| Short Description | 220 X 103 X 103MM SQ EXT ENCL |
| Other Anodize Color | 1455NS2202BK |
| Accessories (1455NS) | Closed bezels 1455NSPLBK / 1455NSPLBK-10 |
Dimensions
| Closed Bezel | 107.75 mm [4.242 in] |
| Nominal Size | 220 x 103 x 103 mm |
| Size L X W X H | 8.66 in x 4.11 in x 4.11 in (220 mm x 104 mm x 104 mm) |
| Extrusion Profile | 104.45 mm x 104.45 mm [4.112 in x 4.112 in] |
| Overall Length (Drawing) | 220.00 ± 0.50 mm [8.661 ± 0.020 in] |
| Ordering Table Length X Width X Depth | 220.00 mm x 104.50 mm x 104.50 mm |
Identifiers
| UPC | 623980223094 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 1.52 lbs (0.69 kg) |
Construction & Finish
| Rubber Feet | Four adhesive rubber feet (replacement: 1421T2CL, pack of 24) |
| Anodize Color | Clear |
| Body Material | Extruded aluminum |
| Customization | Can be factory modified (milling, drilling, printing); solid models available in STEP or IGES |
| Included End Pieces | Two closed end panels, black |
| Minimum Body Thickness | 0.06 in (1.5 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board does the 1455NS2202 take?▾
The drawing states the extrusion is designed for a 100 mm wide PC board. Boards mount horizontally by sliding into internal slots extruded into the body.
What are the dimensions of the 1455NS2202?▾
The listed size is 8.66 in x 4.11 in x 4.11 in (220 mm x 104 mm x 104 mm); the drawing gives an overall length of 220.00 ± 0.50 mm [8.661 ± 0.020 in] and a 104.45 mm [4.112 in] square extrusion.
What comes with the enclosure?▾
The extruded aluminum body, two closed black plastic end panels and four adhesive rubber feet.
Does it have a sliding plate?▾
No. The 1455NS enclosures are listed in the Enclosures Without Sliding Plate table.
Can the enclosure be machined or printed?▾
Yes, the drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
Is the 1455NS2202 RoHS compliant?▾
Yes, it is listed as RoHS compliant and REACH compliant.
