Hammond 1455NFBK Black Anodized Flanged End Panel Kit, Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of black anodized aluminum flanged end panels for 1455N enclosures
- Includes black pan head assembly screws
- Flanges with 4 x Ø4.00 mm [0.157 in] mounting holes (per drawing)
- 103.00 mm wide x 61.20 mm high flanged panel (per drawing)
- Replacement flange kit screws: 1455MSFL100BK (100-pack)
- RoHS and REACH compliant; shipping weight 0.15 lbs (0.07 kg)

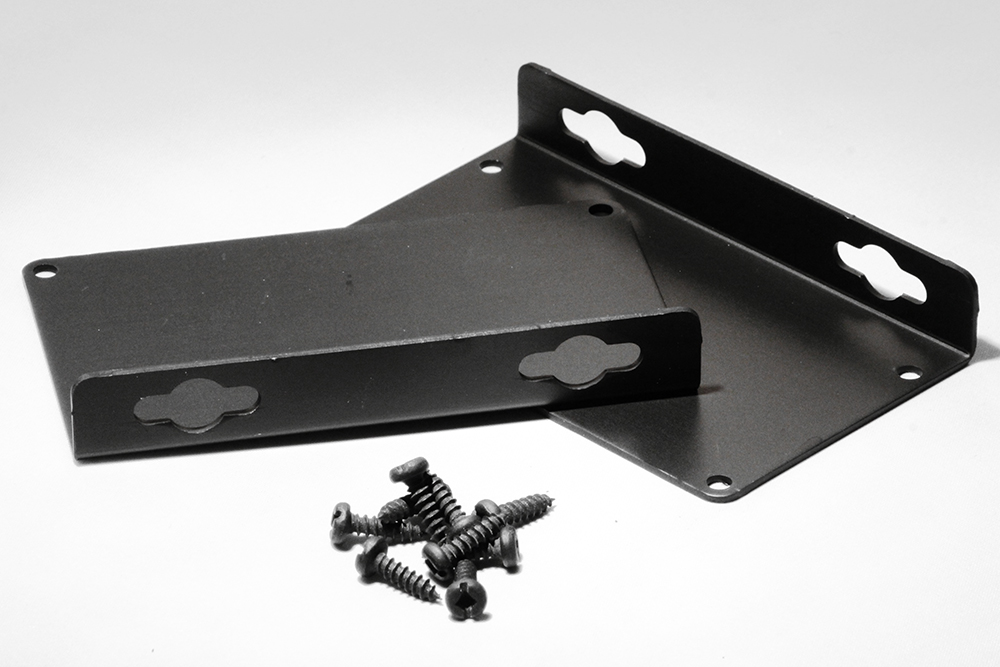

The 1455NFBK is a black anodized aluminum flanged end panel kit for 1455N extruded aluminum enclosures. Flanged end panels replace the flat end panels so the enclosure can be fastened down through the flanges, which suits OEM engineers and installers mounting a 1455N case to a panel or chassis. The 1455N metal end plate drawings show this kit as the optional flange end panels.
Flanged end panel kits are sold as a pair (two panels total) and include black pan head assembly screws. Replacement screws for the flange kits are available as 1455MSFL100BK (100-pack).
According to the drawing, each flanged panel measures 103.00 mm [4.055 in] across, matching the 103 mm width of 1455N bodies, with an overall height of 61.20 mm [2.409 in]. The flanges carry 4 x Ø4.00 mm [0.157 in] mounting holes, and the panel screw holes are spaced 95.00 mm [3.740 in] by 45.00 mm [1.772 in].
The kit is aluminum in a black anodized finish, ships in a bag and has a shipping weight of 0.15 lbs (0.07 kg). It is RoHS and REACH compliant. For a clear anodized finish, order 1455NF.
Ideal For
- Surface mounting 1455N enclosures
- Fastening an enclosure to a panel or chassis
- Converting 1455N metal end enclosures to flange mount
Overview
| Type | Flanged End Panels |
| Series | 1455 Series Extruded Aluminum Enclosures |
| Part Number | 1455NFBK |
| Kit Contents | 2 flanged end panels (sold as a pair) with black pan head assembly screws |
| Long Description | black anodized flange kit for 1455N enclosures |
| Short Description | 1455N FLANGED ENDPLATE BLACK |
| Clear Anodize Equivalent | 1455NF |
| Replacement Screws (100-pack) | 1455MSFL100BK |
| For Part Numbers Starting With | 1455N |
Dimensions
| Panel Width (Drawing) | 103.00 mm [4.055 in] |
| Screw Hole Spacing (Drawing) | 95.00 mm [3.740 in] x 45.00 mm [1.772 in] |
| Flange Mounting Holes (Drawing) | 4 x Ø4.00 mm [0.157 in] |
| Overall Height With Flanges (Drawing) | 61.20 mm [2.409 in] |
Identifiers
| UPC | 623980241586 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many panels come in 1455NFBK?▾
The kit is sold as a pair, two flanged end panels in total, with black pan head assembly screws.
Which enclosures does it fit?▾
It is made for 1455N enclosures (part numbers starting with 1455N); the 1455N metal end plate drawings show it as the optional flange end panels.
What size are the mounting holes?▾
The drawing shows 4 x Ø4.00 mm [0.157 in] holes in the flanges.
Where can I get replacement screws?▾
Replacement screws for flange kits are 1455MSFL100BK, a 100-pack.
Is it available in another finish?▾
Yes, the clear anodized version is 1455NF.
