Hammond 1455N2202BK 220x103x53mm Black Aluminum Enclosure, Plastic Ends
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 220 x 103 x 53 mm (8.66 in x 4.06 x 2.09 in) extruded aluminum body, black anodized finish
- Accepts a PC board up to 219 mm long x 99 mm wide in internal extruded slots
- IP54 rated; RoHS and REACH compliant
- Includes two black closed plastic end panels
- Removable sliding plate; minimum wall thickness 0.06 in (1.5 mm)
- Four adhesive rubber feet and #6 x 3/8 in black end panel screws included; torque 5 lbf-in
- Factory modification available: milling, drilling, printing

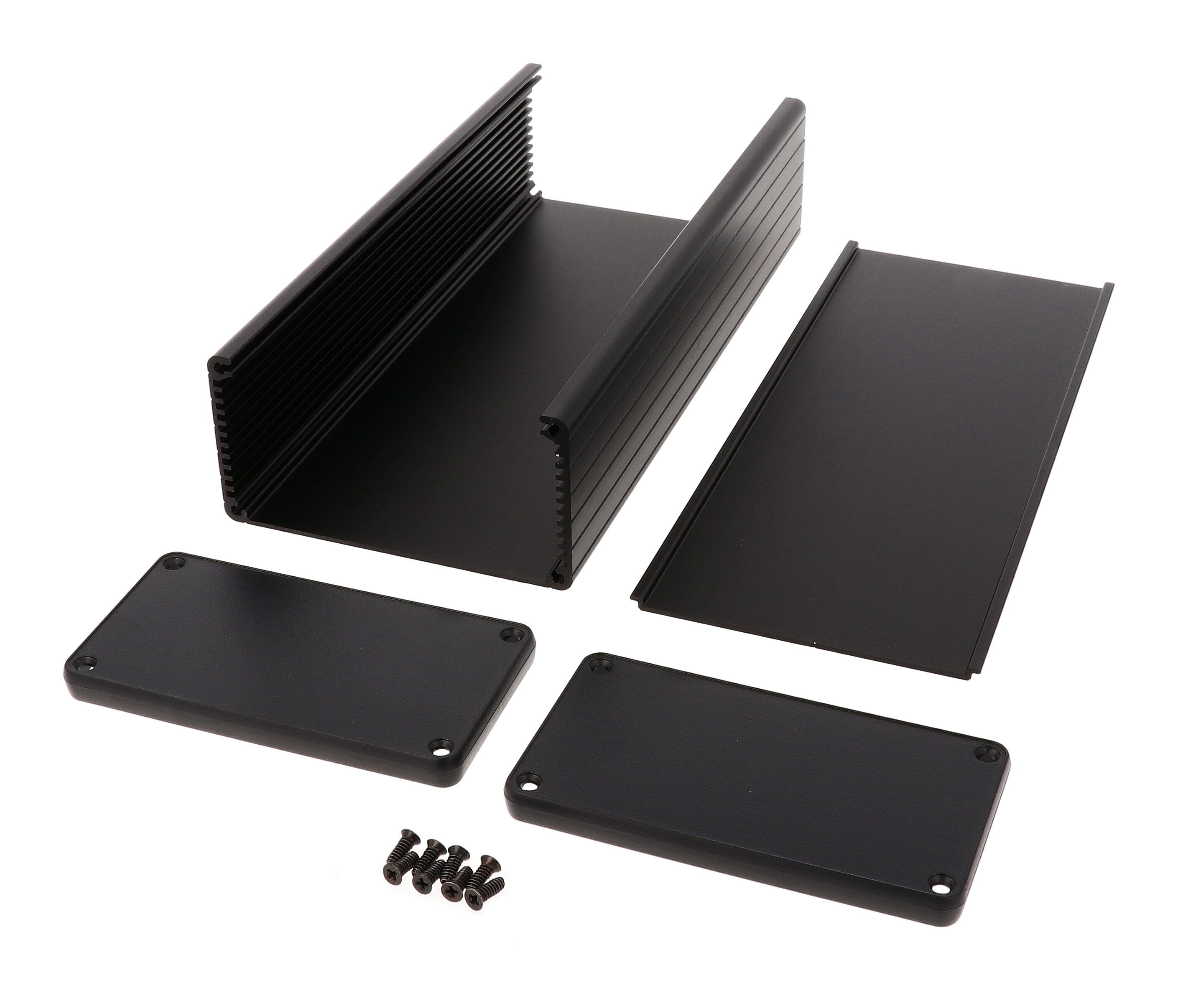

The 1455N2202BK is a black anodized extruded aluminum PC board enclosure measuring 220 mm x 103 mm x 53 mm (8.66 in x 4.06 in x 2.09 in), fitted with plastic end panels. It is built for electronics designers, OEM engineers and integrators who need to house a PC board or interface equipment in a rugged metal case. At 220 mm long it is the longest 103 x 53 mm body in the ordering table, giving room for a board up to 219 mm x 99 mm.
The body is extruded aluminum with a minimum wall thickness of 0.06 in (1.5 mm), and PC boards mount horizontally by sliding into internal slots extruded into the enclosure body. The drawing notes the extrusion is designed for a 100 mm wide PC board; the box is made from extruded aluminum 6063. This size appears in the manufacturer's table of enclosures with a sliding plate, so the base includes a removable sliding plate.
As a plastic end plate version, the 1455N2202BK includes two closed end panels in black (ABS per the drawing), four adhesive rubber feet and #6 x 3/8 in thread rolling steel end panel screws with a #4 flat head Phillips drive (black screws on this black finish). Recommended screw torque is 5 lbf-in.
- IP54 rated, RoHS and REACH compliant
- Shipping weight 1.03 lbs (0.47 kg); ships shrink wrapped
- Can be factory modified (milling, drilling, printing); solid models available in STEP or IGES
- Other colors of this size and end style: 1455N2202. The same body with metal end panels in this color is 1455N2201BK.
Ideal For
- Housing PC boards up to 219 mm x 99 mm
- Equipment interfacing enclosures
- OEM electronics products needing an IP54 metal case
- Sealed-end designs with closed plastic end panels
Overview
| Type | PC Board Enclosure |
| Series | 1455 Series Extruded Aluminum Enclosures |
| Included | Extruded aluminum body with sliding plate, two closed end panels (black), four adhesive rubber feet, #6 end panel screws |
| Part Number | 1455N2202BK |
| Ordering Table | Enclosures With Sliding Plate |
| End Panel Style | Plastic end panels |
| Long Description | black extruded aluminum enclosure w/ plastic end panels |
| Short Description | 220 X 103 X 53MM EXTRUSION ENC |
| Replacement Rubber Feet | 1421T2CL (pack of 24) |
| Replacement Screws (100) | 1455MS100BK (black) |
| Equivalent With Metal End Panels | 1455N2201BK |
| Other Colors (Same Size & End Style) | 1455N2202 |
Dimensions
| Width (Drawing) | 103.00 mm [4.055 in] |
| Height (Drawing) | 53.00 mm [2.087 in] |
| Length (Drawing) | 220.00 ±0.50 mm [8.661 ±0.020 in] |
| Size (L X W X H) | 8.66 in x 4.06 in x 2.09 in (220 mm x 103 mm x 53 mm) |
| Bezel Depth (Drawing) | 6.00 mm [0.236 in] |
| Max. P.C. Board Width | 99 mm |
| Max. P.C. Board Length | 219 mm |
| Bezel Outline (Drawing) | 106.13 mm [4.178 in] x 56.13 mm [2.210 in] |
| Designed PC Board Width | 100 mm (extrusion designed for 100 mm wide PC board) |
Identifiers
| UPC | 623980238371 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.03 lbs (0.47 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum (Extruded) |
| CAD Models | STEP or IGES |
| Bezel Style | Closed bezel |
| Screw Finish | Black |
| Anodize Color | Black |
| Sliding Plate | Yes (removable sliding plate) |
| End Panel Screws | #6 x 3/8 in thread rolling steel, #4 flat head Phillips drive |
| PC Board Mounting | Horizontal, sliding into internal slots extruded into the enclosure body |
| Factory Modification | Milling, drilling, printing etc. |
| Box Material (Drawing) | Extruded Aluminum 6063 |
| Minimum Wall Thickness | 0.06 in (1.5 mm) |
| Bezel Material (Drawing) | ABS |
| Recommended Screw Torque | 5 lbf-in |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1455N2202BK?▾
The maximum PC board size is 219 mm long by 99 mm wide. The drawing notes the extrusion is designed for a 100 mm wide PC board, which slides horizontally into internal slots in the body.
What comes with the enclosure?▾
Two closed end panels in black, four adhesive rubber feet and #6 x 3/8 in thread rolling steel end panel screws. The body includes a removable sliding plate.
What are the outside dimensions?▾
220 mm x 103 mm x 53 mm (8.66 in x 4.06 in x 2.09 in). The drawing gives the length as 220.00 ±0.50 mm [8.661 ±0.020 in].
What is the IP rating?▾
The 1455N2202BK is rated IP54.
Which replacement screws and feet should I order?▾
This black version uses black screws; order 1455MS100BK for 100 replacements. Replacement rubber feet are 1421T2CL (pack of 24). Recommended screw torque is 5 lbf-in.
Is there a version with metal end panels?▾
Yes. The same 220 x 103 x 53 mm body in black with metal end panels is 1455N2201BK.
