Hammond 1455MS100BK Black #6 x 3/8" End Panel Screws, 100-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 100 black end panel screws for 1455, 1455NC, 1455HD and 1455F
- Taptite #6-32 x 0.375 tri-lobular thread with #4 head
- #1 drive Phillips flat head with 82° countersink
- Steel with black zinc plating
- Length 9.53 mm [0.375 in]; head diameter 5.38 mm [0.212 in]
- RoHS and REACH compliant

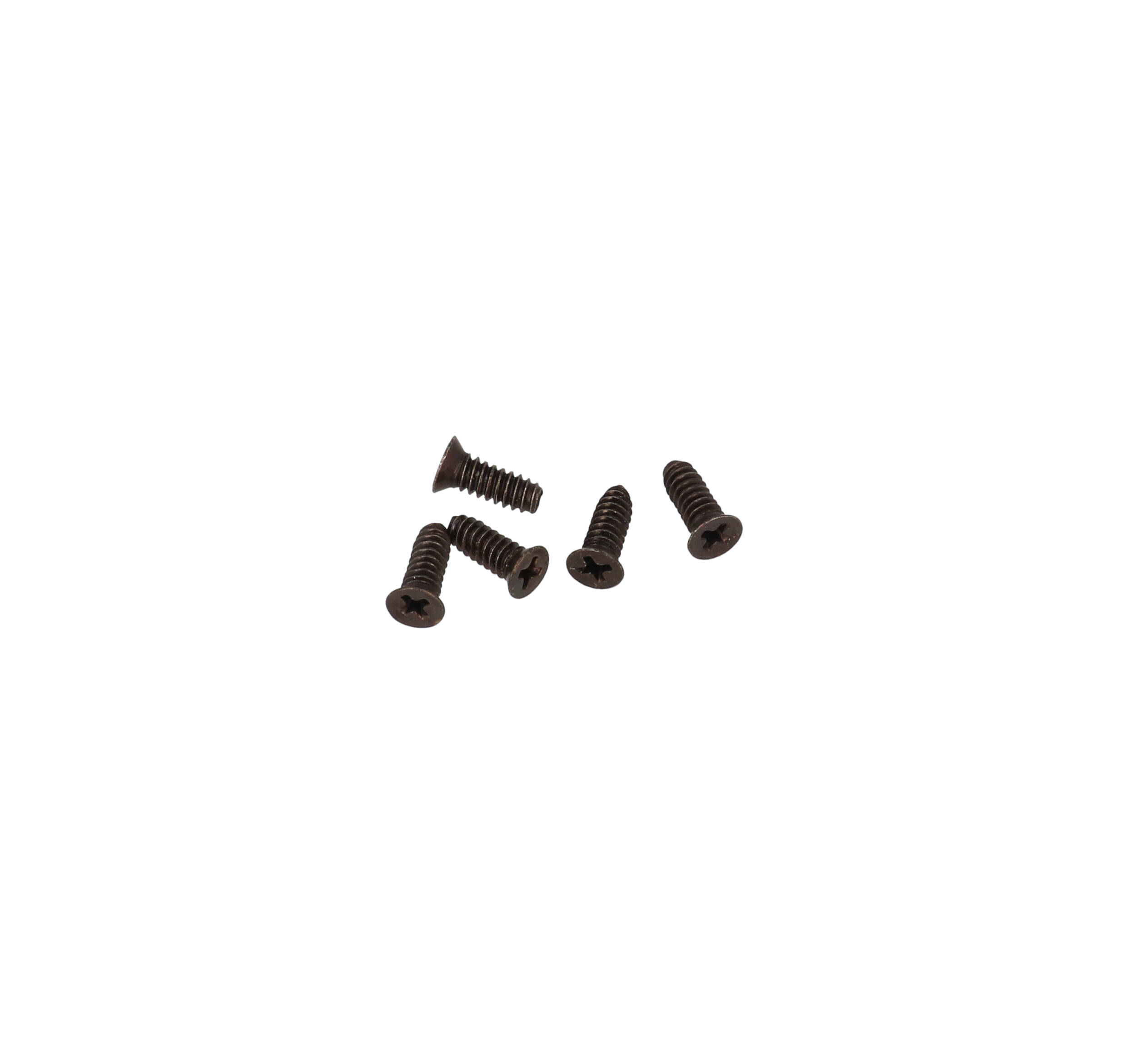

The 1455MS100BK is a bag of 100 black end panel screws for Hammond 1455 series enclosures, listed for the 1455, 1455NC, 1455HD and 1455F series. The hardware list describes them as #6 x 3/8" screws, black, with a #1 drive and #4 Phillips head, making them the dark-finish match to the clear zinc 1455MS100.

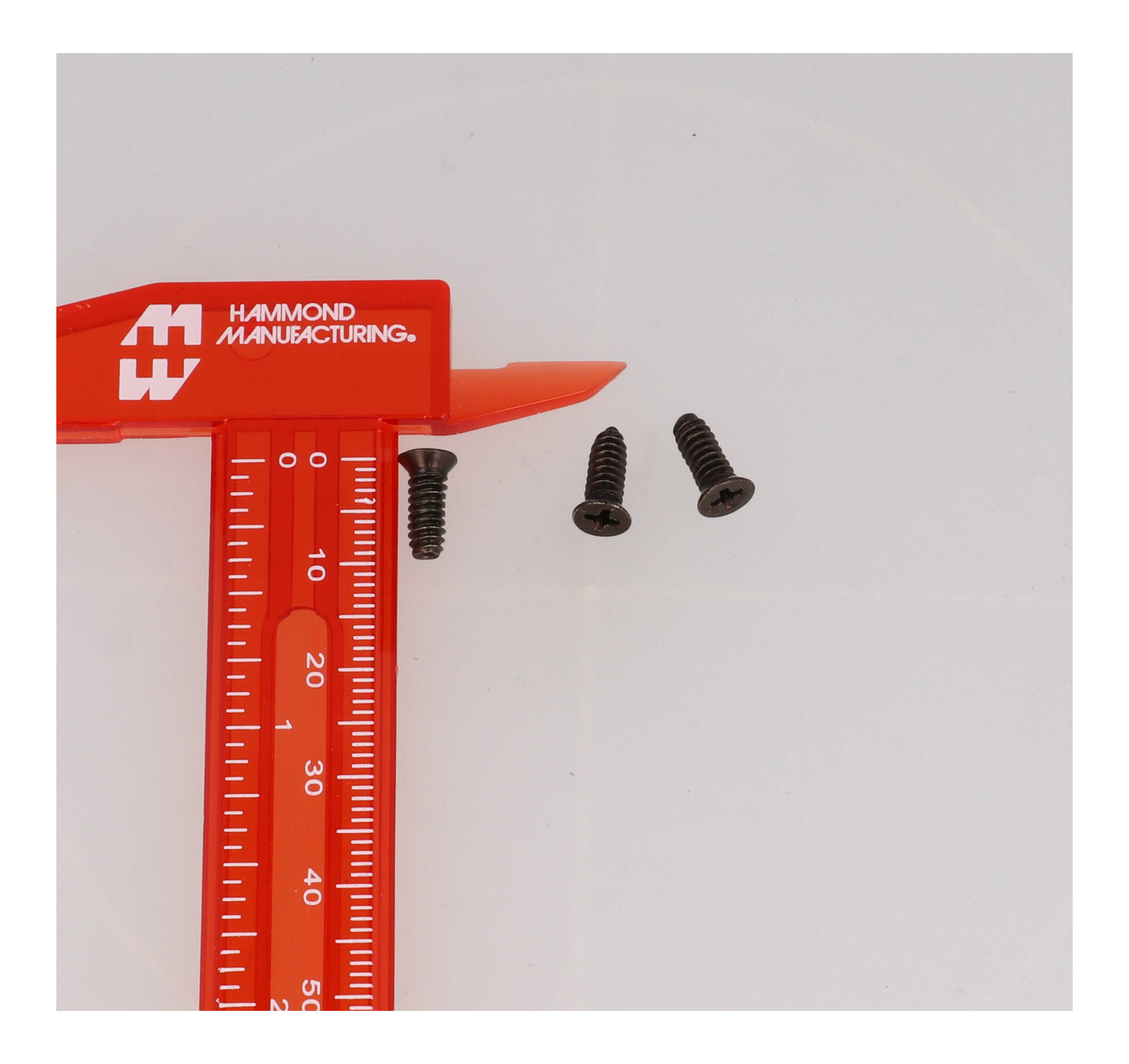

According to the drawing, each screw is steel with a black zinc plating and a Taptite #6-32 x 0.375" tri-lobular thread with a #4 head. The head is a #1 drive Phillips flat head with an 82° countersink. The drawing dimensions show a length of 9.53 mm [0.375 in], a head diameter of 5.38 mm [0.212 in] and a head height of 1.70 mm [0.067 in].
Black screws are the logical choice where 1455 end panels should keep a uniform dark appearance. With 100 per package, the pack covers production runs as well as service and repair stock for integrators and OEM builders.
Most enclosures ship with the hardware needed for assembly, the manufacturer notes, so this is a replacement or spare pack. Hardware packs may not be compatible with all parts in the listed series; confirm on the series landing page or in the enclosure part page's "Replacement Parts and Accessories" section.

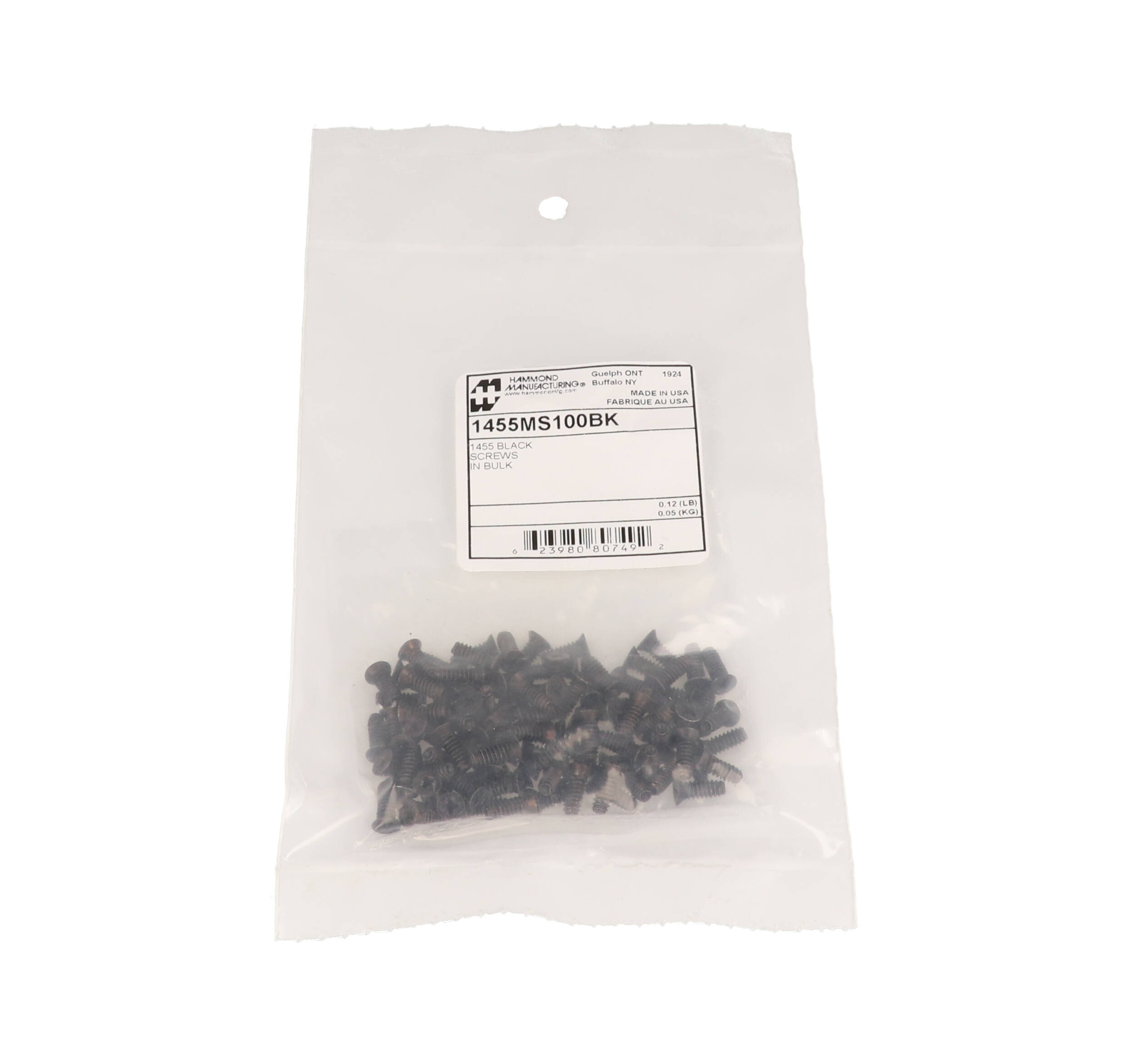

The 1455MS100BK ships in a bag with a shipping weight of 0.12 lbs (0.05 kg) and is RoHS and REACH compliant.
Ideal For
- Colour-matched end panel screws for black 1455 enclosure builds
- Replacing lost end panel screws on 1455NC or 1455HD enclosures
- Production and service stock for 1455F enclosures
Overview
| Type | End Panel Screws |
| Description | #6 x 3/8" screws, black (#1 drive, #4 Phillips head) |
| Product Type | Screws |
| Qty Per Pack | 100 |
| Long Description | black screws for 1455 series enclosures - 100/pack |
| Short Description | 1455 BLK SCREWS, BAG OF 100 |
Dimensions
| Length | 9.53 mm [0.375 in] |
| Head Height | 1.70 mm [0.067 in] |
| Head Diameter | 5.38 mm [0.212 in] |
Identifiers
| UPC | 623980807492 |
| UNSPSC | 39121301 |
Compatibility
| Applicable Series | 1455, 1455NC, 1455HD, 1455F |
| Compatibility Note | Hardware packs may not be compatible with all parts in the listed series |
Fastener Details
| Head | #1 Drive Phillips Flat Head |
| Thread | Taptite #6-32 X 0.375" w/ #4 Head |
| Thread Form | Tri-lobular (Taptite) |
| Countersink Angle | 82° |
Packaging & Shipping
| Sold In | 100/Package |
| Packaging Type | Bag |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Colour | Black |
| Material | Steel (Black Zinc Plated) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which series are the 1455MS100BK screws for?▾
The 1455, 1455NC, 1455HD and 1455F series, as end panel screws.
How do they differ from 1455MS100?▾
1455MS100BK is black zinc plated steel; 1455MS100 is clear zinc plated. Thread, head and dimensions are the same on both drawings.
What is the thread specification?▾
Taptite #6-32 x 0.375" tri-lobular thread with a #4 head.
What head style do they have?▾
A #1 drive Phillips flat head with an 82° countersink, 5.38 mm [0.212 in] in diameter.
How are they packaged?▾
100 per package, in a bag.
