Hammond 1455MS100 #6 x 3/8" Clear Zinc End Panel Screws, 100-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 100 end panel screws for 1455, 1455NC, 1455HD and 1455F enclosures
- Taptite #6-32 x 0.375 tri-lobular thread
- #1 drive Phillips flat head (#4 head), 82° countersink
- Steel with clear zinc plating
- Head diameter 5.38 mm [0.212 in]; length 9.53 mm [0.375 in]
- RoHS and REACH compliant
- Black zinc version available as 1455MS100BK
The 1455MS100 is a bag of 100 replacement end panel screws for Hammond 1455 series enclosures. It is listed for the 1455, 1455NC, 1455HD and 1455F series and is described as #6 x 3/8" screws with a #1 drive and #4 Phillips head.
The drawing details the fastener: a #6-32 x 0.375 Taptite thread (tri-lobular) with a #1 drive Phillips flat head. The screws are steel with a clear zinc plating. Key drawing dimensions are a 9.53 mm [0.375 in] length, a head diameter of 5.38 mm [0.212 in], a head height of 1.70 mm [0.067 in] and an 82° countersink angle.

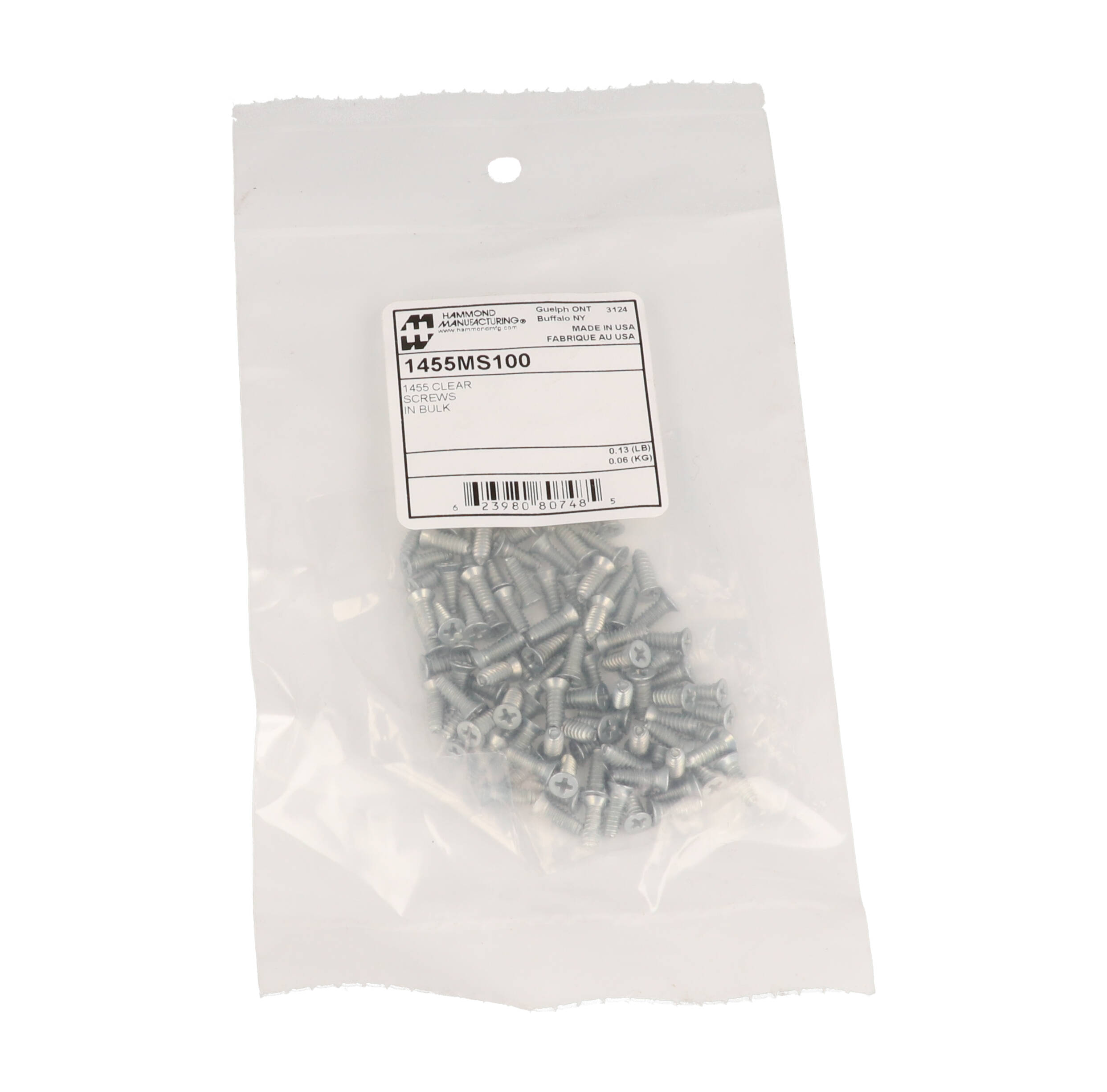

- Quantity: 100 per package, supplied in a bag
- Thread: Taptite #6-32 x 0.375" with #4 head
- Head: #1 drive Phillips flat head, 82°
- Finish: clear zinc plated steel
This pack suits production lines, integrators and repair shops that assemble or service quantities of 1455 enclosures and need spare end panel screws. The manufacturer notes that enclosures normally include all hardware needed for assembly and that hardware packs may not be compatible with all parts in the listed series, so check the enclosure's "Replacement Parts and Accessories" list.
The 1455MS100 has a shipping weight of 0.13 lbs (0.06 kg) and is RoHS and REACH compliant. A black zinc plated version is available as 1455MS100BK.
Ideal For
- Replacing end panel screws on 1455 series enclosures
- Production assembly stock for 1455NC and 1455HD builds
- Service spares for 1455F enclosures
Overview
| Type | End Panel Screws |
| Description | #6 x 3/8" screws (#1 drive, #4 Phillips head) |
| Product Type | Screws |
| Qty Per Pack | 100 |
| Long Description | screws for 1455 series enclosures - 100/pack |
| Short Description | 1455 CLR SCREWS, BAG OF 100 |
Dimensions
| Length | 9.53 mm [0.375 in] |
| Head Height | 1.70 mm [0.067 in] |
| Head Diameter | 5.38 mm [0.212 in] |
Identifiers
| UPC | 623980807485 |
| UNSPSC | 39121301 |
Compatibility
| Applicable Series | 1455, 1455NC, 1455HD, 1455F |
| Compatibility Note | Hardware packs may not be compatible with all parts in the listed series |
Fastener Details
| Head | #1 Drive Phillips Flat Head |
| Thread | Taptite #6-32 X 0.375" w/ #4 Head |
| Thread Form | Tri-lobular (Taptite) |
| Countersink Angle | 82° |
Packaging & Shipping
| Sold In | 100/Package |
| Packaging Type | Bag |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Material | Steel (Clear Zinc Plated) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1455MS100 screws?▾
They are listed as end panel screws for the 1455, 1455NC, 1455HD and 1455F series.
What thread and head do they have?▾
A Taptite #6-32 x 0.375" tri-lobular thread with a #1 drive Phillips flat head (#4 head) and an 82° countersink.
What finish are they?▾
Steel with a clear zinc plating. The black zinc plated equivalent is 1455MS100BK.
How many screws are in a pack?▾
100 screws, supplied in a bag.
What driver do I need?▾
A #1 Phillips driver, per the #1 drive Phillips flat head on the drawing.
