Hammond 1455KF 1455K Clear Anodized Flanged End Panel Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear anodized aluminum flanged end panel kit for 1455K enclosures

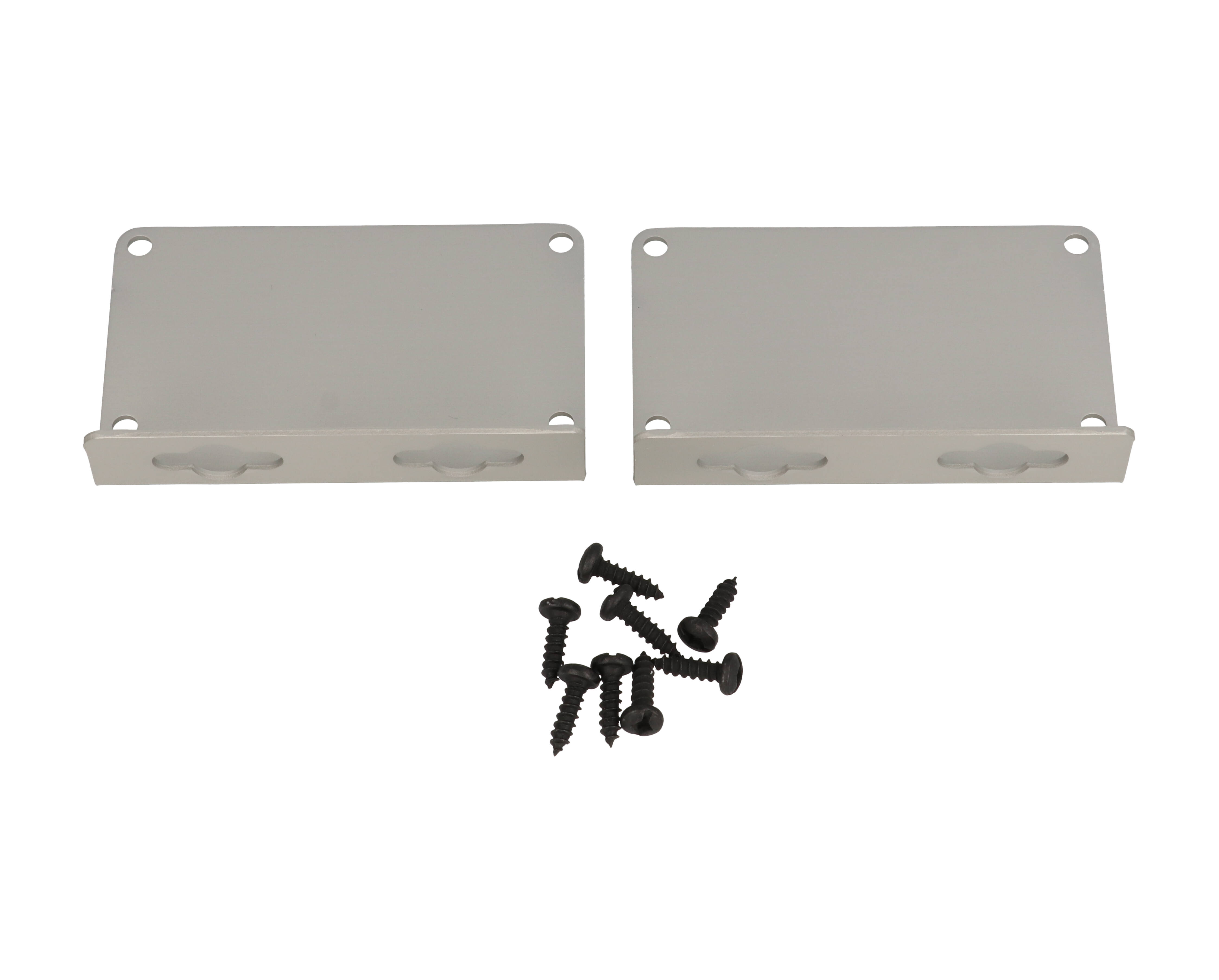

- Sold as a pair (2 panels total) with black pan head assembly screws
- Drawing shows four Ø4.00 mm [0.157 in] holes in the flanges and a 78.00 mm [3.071 in] width
- Shown on 1455K metal end plate enclosure drawings as the optional flange end panels
- Also available as 1455KFBK (black anodize)
- Replacement flange kit screws: 1455MSFL100BK (100-pack)
- RoHS and REACH compliant; bagged, 0.11 lbs (0.05 kg)

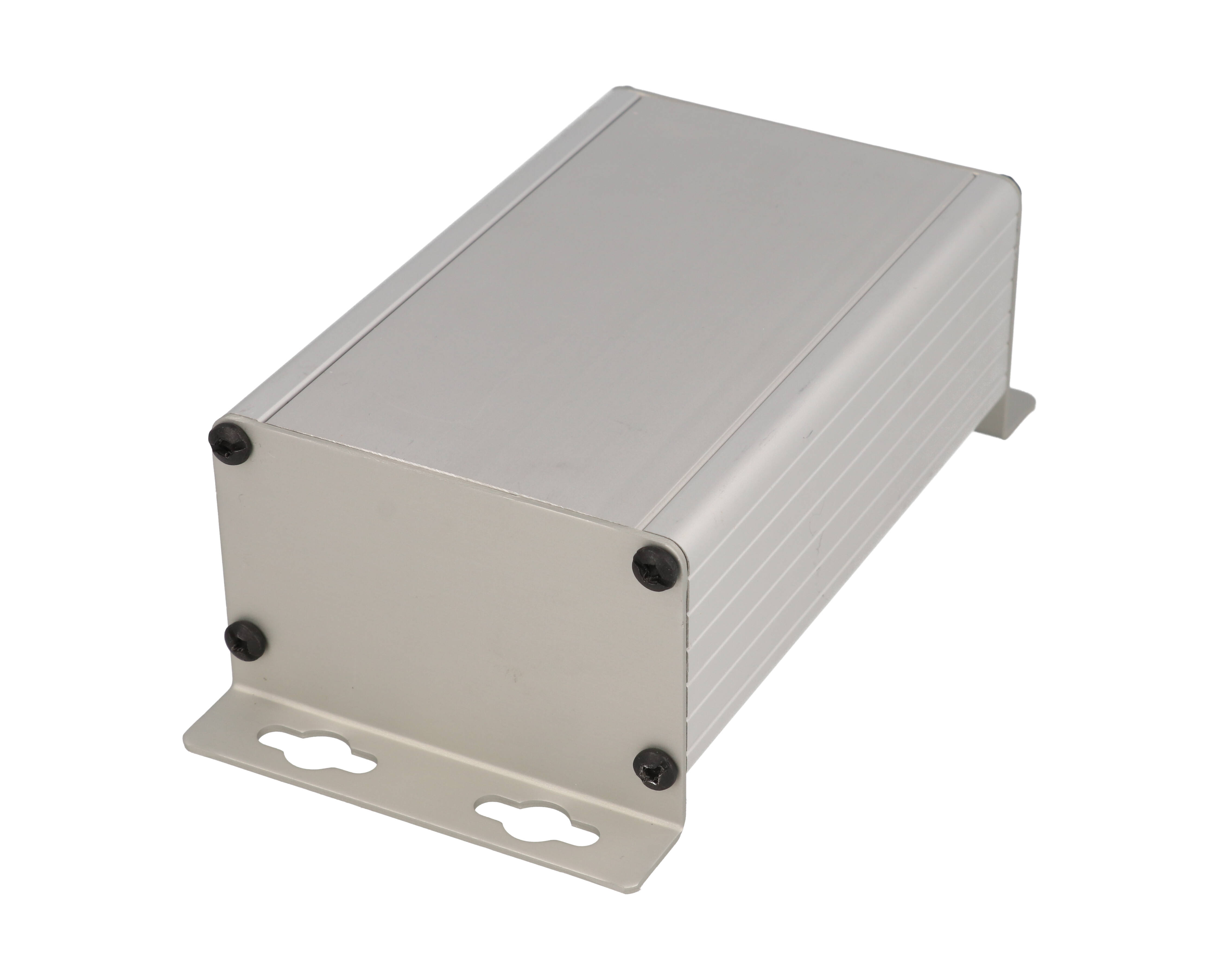

The 1455KF is a clear anodized aluminum flanged end panel kit for 1455K enclosures. It provides a pair of flanged end panels with holes in the flanges for fastening a 1455K enclosure in place, and is shown as the optional flange end panels on the 1455K1201 and 1455K1601 drawings.
The panels are aluminum in a clear anodize finish. The assembly drawing shows a 78.00 mm [3.071 in] width and four Ø4.00 mm [0.157 in] holes in the flanges, along with 51.20 mm [2.016 in], 70.00 mm [2.756 in] and 35.00 mm [1.378 in] dimensions for planning the mounting layout.
Each kit is sold as a pair, two panels total, with black pan head assembly screws. Replacement screws for flange kits are available as 1455MSFL100BK (100-pack). The 1455KF is RoHS and REACH compliant, ships in a bag and has a shipping weight of 0.11 lbs (0.05 kg). The other finish is 1455KFBK (black anodize).
1455K enclosures are 78 mm wide by 43 mm deep extruded aluminum housings in 80, 120 and 160 mm lengths. For purchasing systems, the 1455KF is UPC 623980241555, UNSPSC 39121301.
Ideal For
- Flange mounting 1455K enclosures
- Adding mounting flanges to 1455K metal end plate enclosures
- Matching flange kits to clear or black enclosures
Overview
| Description | clear anodized flange kit for 1455K enclosures |
| Kit Contents | Sold as a pair (2 panels total) with black pan head assembly screws |
| Other Finish | 1455KFBK (black anodize) |
| Product Type | Flanged End Panels |
| For Enclosures | Part numbers starting with 1455K |
| Replacement Screws | 1455MSFL100BK (100-pack) |
Dimensions
| Width (Drawing) | 78.00 mm [3.071 in] |
| Key Drawing Dimensions | 51.20 mm [2.016 in]; 70.00 mm [2.756 in]; 35.00 mm [1.378 in]; 37.55 mm [1.478 in]; 20.23 mm [0.796 in]; 16.60 mm [0.654 in]; 1.43 mm [0.056 in] |
| Mounting Holes (Drawing) | 4 x Ø4.00 mm [0.157 in] |
Identifiers
| UPC | 623980241555 |
| UNSPSC | 39121301 |
| Part Number | 1455KF |
| Short Description | 1455K FLANGED ENDPLATE |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| Material | Aluminum |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is included with the 1455KF?▾
Flanged end panel kits are sold as a pair (2 panels total) and include black pan head assembly screws.
Which enclosures does the 1455KF fit?▾
It is listed for enclosures with part numbers starting with 1455K, and appears as the optional flange end panels on 1455K1201 and 1455K1601 drawings.
Where can I get replacement screws for the flange kit?▾
Replacement screws for flange kits are 1455MSFL100BK, sold in a 100-pack.
What size are the flange mounting holes?▾
The assembly drawing shows 4 x Ø4.00 mm [0.157 in] holes in the flanges.
Does it match clear anodized enclosures?▾
The 1455KF is clear anodized aluminum; a black anodized version is available as 1455KFBK.
