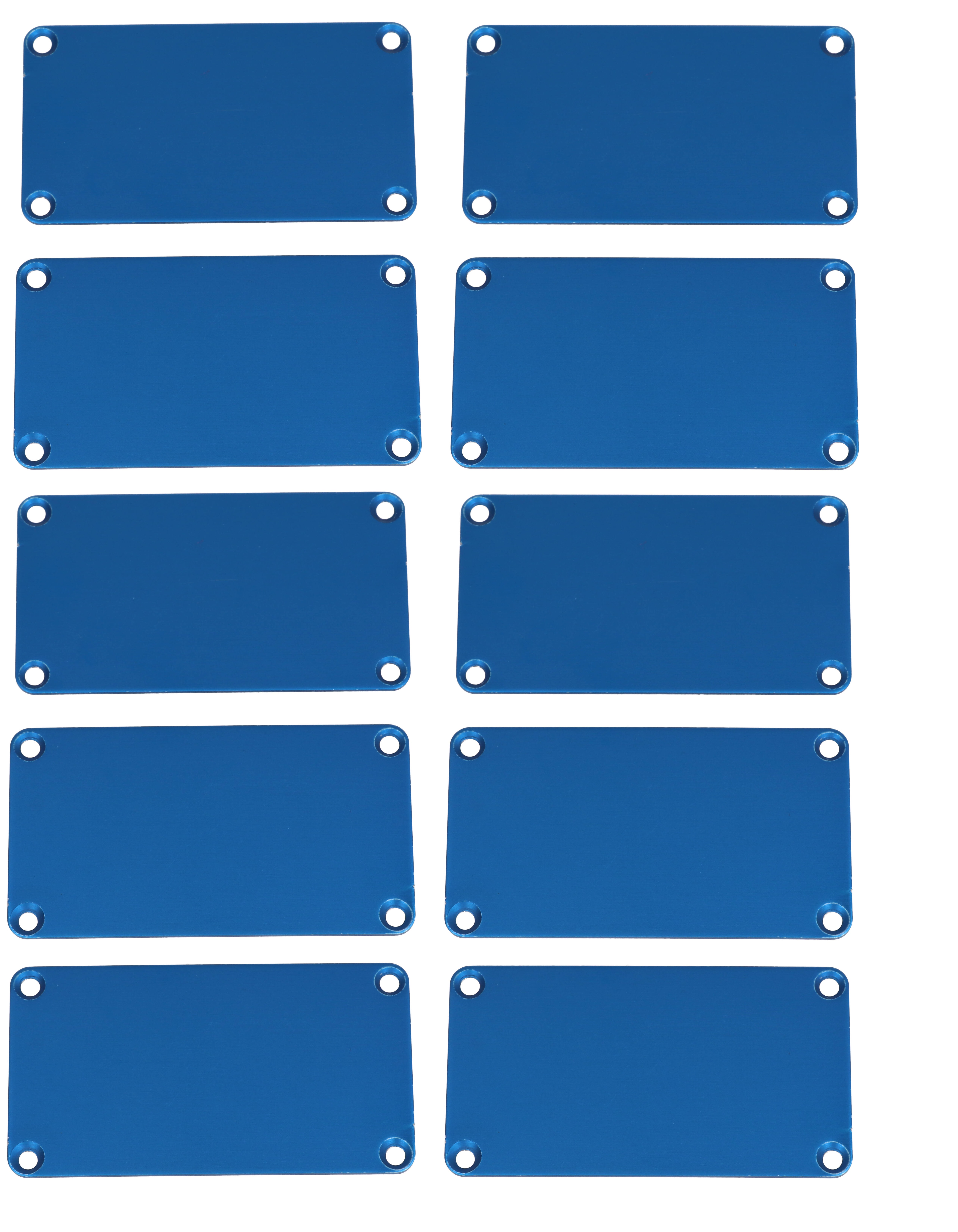

Hammond 1455KALBU-10 1455K Blue Anodized Aluminum End Panels, 10-Pack

The 1455KALBU-10 is a 10-pack of blue anodized aluminum end panels for 1455K enclosures. Use them with 1455K metal end plate enclosures such as the blue 1455K1201BU and 1455K1601BU, or to add a blue accent to another 1455K housing.

Each panel is aluminum with a blue anodize finish, supplied ten to a bag with a shipping weight of 0.31 lbs (0.14 kg). The 1455 series is designed so that accessory panels and bezels allow mixing and matching of colours; the 1455K aluminum end panels are also offered in clear, black and red anodize. The panels are RoHS and REACH compliant.

Blue anodized 1455 enclosures are supplied with black end panel screws; replacements are 1455MS100BK (quantity 100). Recommended screw torque is 5 lbf-in.

In the 1455 series, 1455K enclosures are 78 mm wide by 43 mm deep extruded aluminum housings offered in 80, 120 and 160 mm lengths, and the versions with metal end plates ship with two flat aluminum end panels color matched to the housing plus two open black plastic bezels. End panels are secured with #6 x 3/8 in thread rolling steel screws with a #4 flat head phillips drive. For ordering and purchasing systems, the 1455KALBU-10 carries UPC 623980101903 and UNSPSC 39121301.
