Hammond 1455K802BK 80x78x43mm Black Aluminum Enclosure, Plastic Ends
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 80 x 78 x 43 mm (3.15 x 3.07 x 1.69 in) black anodized extruded aluminum body
- Plastic end plates: two black closed end panels
- Internal extruded slots hold PC boards horizontally; designed for 75 mm wide boards
- Removable sliding plate included
- Minimum wall thickness 0.06" (1.5 mm)
- Four adhesive rubber feet and end panel screws included (5 lbf-in torque)
- RoHS and REACH compliant

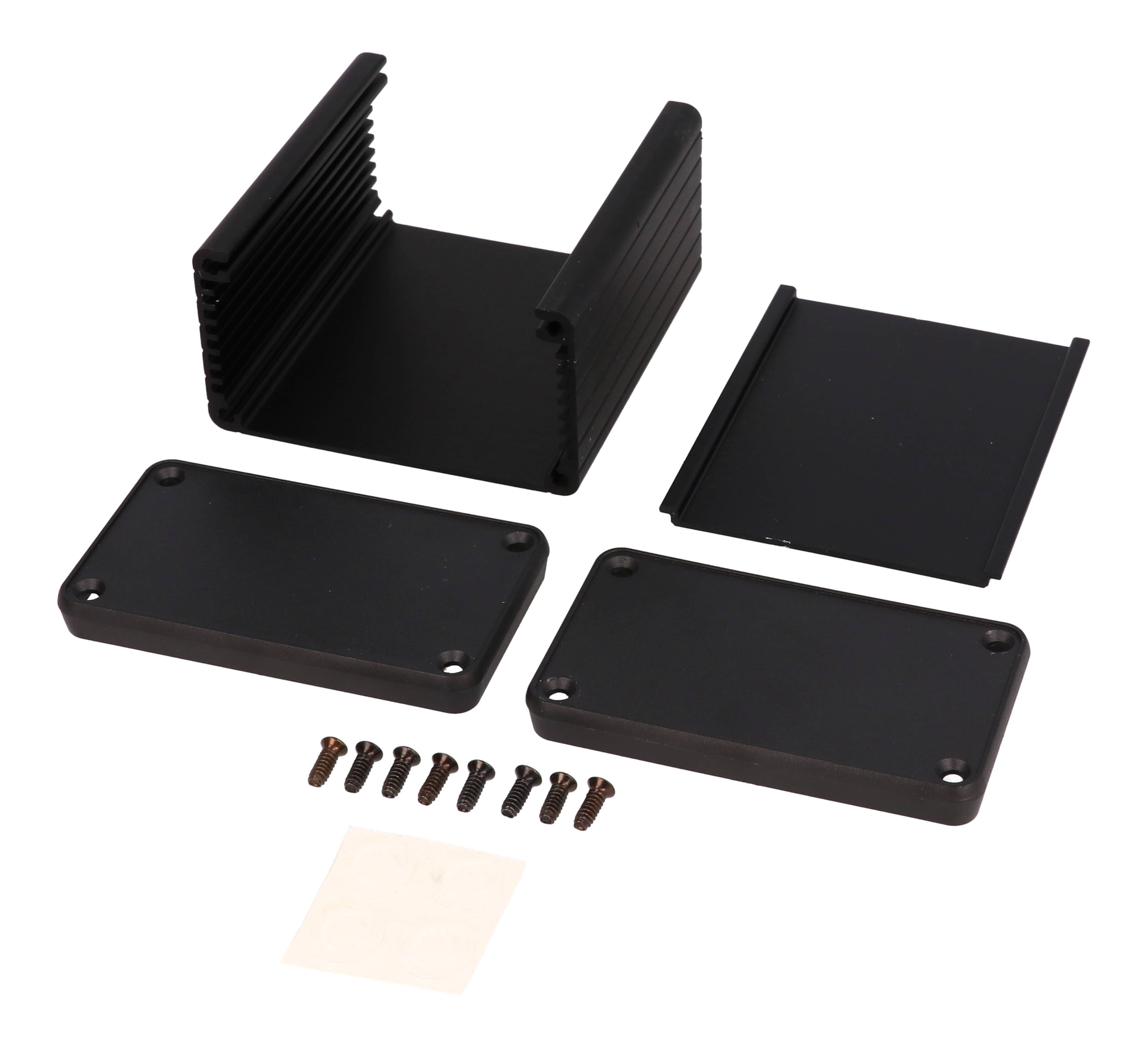

1455K802BK is a black anodized extruded aluminum enclosure with plastic end panels from the Hammond 1455 series, measuring 80 x 78 x 43 mm (3.15 x 3.07 x 1.69 in). It is designed to house PC boards or for equipment interfacing, making it a fit for electronics designers, OEM engineers and integrators building compact instruments, interface modules and controllers.
The rugged body is extruded aluminum with a minimum wall thickness of 0.06" (1.5 mm) and an anodized finish. PC boards mount horizontally by sliding into internal slots extruded into the body; the drawing notes the extrusion is designed for a 75 mm wide PC board. This size is listed in the Enclosures With Sliding Plate table, so it includes a removable sliding plate.
Per the drawing, the extrusion is 78.00 mm [3.071 in] wide and 43.02 mm [1.694 in] high, with a length of 80.00 ± 0.50 mm [3.150 ± 0.020 in]. The closed bezel measures 81.13 x 46.13 mm with a 9.00 mm depth and fastens through four 3.50 mm thru holes countersunk 5.72 mm x 82°.
It includes two closed plastic end panels in black, four adhesive rubber feet, and #6 x 3/8" thread rolling steel end panel screws with a #4 flat head Phillips drive in a black finish. Recommended screw torque is 5 lbf-in. Replacement rubber feet are 1421T2CL (pack of 24); replacement screws are 1455MS100 (natural) and 1455MS100BK (black), 100 per pack.
1455K802BK has a shipping weight of 0.35 lbs (0.16 kg), is listed as RoHS and REACH compliant, and carries UPC 623980615004. Enclosures can be factory modified (milling, drilling, printing) and solid models are available in STEP or IGES.
Ideal For
- Housing PC boards up to 75 mm wide
- Equipment interfacing and interface modules
- Compact electronics prototypes and OEM products
- Enclosures needing closed plastic end caps
Overview
| Series | 1455 Series Extruded Aluminum Enclosures |
| Included | Two closed plastic end panels (black), four adhesive rubber feet, end panel screws |
| End Panels | Plastic end panels |
| Description | extruded black aluminum enclosure w/ plastic endpanels |
| Part Number | 1455K802BK |
| Anodize Color | Black |
| Sliding Plate | Yes (Enclosures With Sliding Plate table) |
| Short Description | 80 X 78 X 43MM EXTRUDED BOX |
| Replacement Screws | 1455MS100BK (black, 100) / 1455MS100 (natural, 100) |
| Metal End Panel Version | 1455K801BK |
| Replacement Rubber Feet | 1421T2CL (pack of 24) |
Dimensions
| Bezel Depth | 9.00 mm [0.354 in] |
| Designed For | 75 mm wide PC board |
| Size L X W X H | 3.15 in x 3.07 in x 1.69 in (80 mm x 78 mm x 43 mm) |
| Depth (Ordering Table) | 43.00 mm |
| Width (Ordering Table) | 78.00 mm |
| Length (Ordering Table) | 80.00 mm |
| Extrusion Width (Drawing) | 78.00 mm [3.071 in] |
| Extrusion Height (Drawing) | 43.02 mm [1.694 in] |
| Extrusion Length (Drawing) | 80.00 ± 0.50 mm [3.150 ± 0.020 in] |
| Closed Bezel Size (Drawing) | 81.13 mm [3.194 in] x 46.13 mm [1.816 in] |
| PC Board Slot Width (Drawing) | 75.00 ± 0.51 mm [2.953 ± 0.020 in] |
| Extrusion Slot Height Dimension (Drawing) | 40.02 ± 0.38 mm [1.576 ± 0.015 in] |
Identifiers
| UPC | 623980615004 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Body | Extruded aluminum, minimum thickness 0.06" (1.5 mm) |
| Finish | Black anodize |
| CAD Models | STEP or IGES |
| End Panel Screws | #6 x 3/8" thread rolling steel, #4 flat head Phillips drive, black |
| PC Board Mounting | Horizontal, sliding into internal extruded slots |
| Factory Modification | Milling, drilling, printing etc. available |
| Recommended Screw Torque | 5 lbf-in |
| Wall Thickness (Drawing) | 1.50 mm [0.059 in] TYP |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of 1455K802BK?▾
3.15 in x 3.07 in x 1.69 in (80 mm x 78 mm x 43 mm) (L x W x H). The drawing shows the extrusion at 80.00 ± 0.50 mm [3.150 ± 0.020 in] long, 78.00 mm wide and 43.02 mm high.
What size PC board fits?▾
The extrusion is designed for a 75 mm wide PC board, which slides horizontally into internal slots.
What comes in the box?▾
Two black closed plastic end panels, four adhesive rubber feet and black #6 x 3/8" thread rolling end panel screws, with the extruded body and sliding plate.
Does it have a sliding plate?▾
Yes. It is listed in the Enclosures With Sliding Plate table.
Is there a version with metal end panels?▾
Yes, the same size and colour with aluminum end panels is 1455K801BK.
Can the enclosure be customised?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.) and solid models are available in STEP or IGES.
