Hammond 1455DF Clear Anodized Flanged End Panel Kit, Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear anodized aluminum flanged end panels for 1455D enclosures
- Sold as a pair (2 panels total) with black pan head assembly screws
- Flange holes 4.50 mm [0.177 in] diameter for #6 and #8 screws

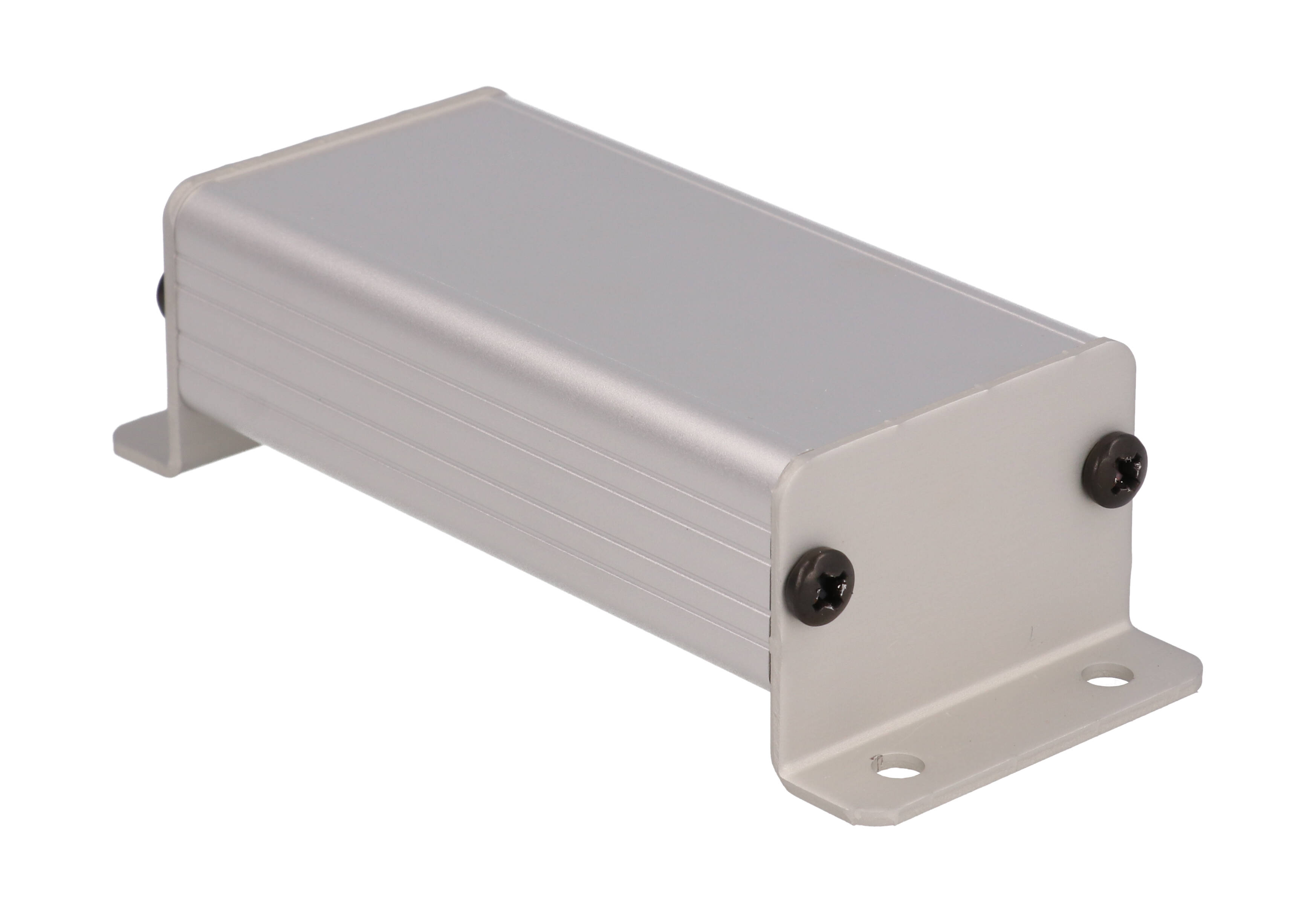

- Converts a 1455D case for surface mounting
- Replacement flange-kit screws: 1455MSFL100BK (100-pack)
- RoHS and REACH compliant

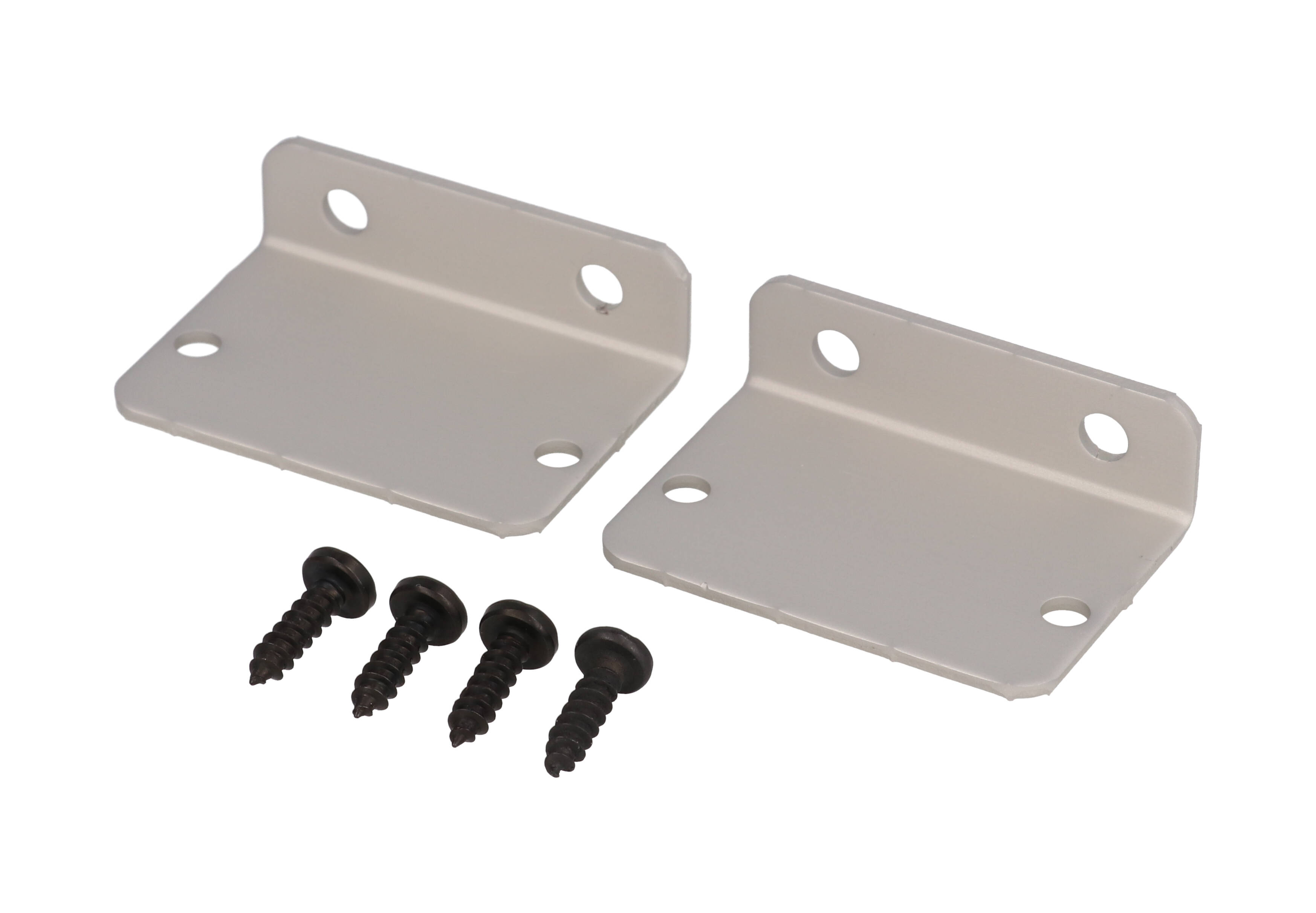

The 1455DF is a clear anodized flanged end panel kit for 1455D extruded aluminum enclosures. Flanged end panels replace the standard flat ends with panels that extend into mounting flanges, giving panel builders, OEM engineers and installers a way to screw a small 1455D case down to a surface.
The panels are aluminum with a clear anodized finish. According to the 1455 series specification sheet, flanged end panel kits are sold as a pair (2 panels total) and include black pan head assembly screws. Replacement screws for the flange kits are listed as part 1455MSFL100BK, a 100-pack.
The manufacturer's drawing shows two flange holes of 4.50 mm [0.177 in] diameter, marked for #6 and #8 screws, plus two 4.00 mm [0.157 in] holes. Other drawing dimensions include 42.50 mm [1.673 in], 35.60 mm [1.402 in], 30.00 mm [1.181 in], 25.40 mm [1.000 in] and 12.70 mm [0.500 in]; check the drawing for how these relate to your mounting surface.
In the flanged end panel kit table the 1455DF is the clear anodized option for enclosures whose part number starts with 1455D; the black anodized 1455DFBK kit is the alternative finish. The kit ships in a bag with a listed shipping weight of 0.07 lbs (0.03 kg), is RoHS and REACH compliant, and carries UPC 623980102344.
Ideal For
- Surface-mounting 1455D extruded aluminum enclosures
- Fixing small electronics cases inside panels or equipment
- Converting a standard 1455D case to a flanged mount
Overview
| Type | Flanged End Panels |
| Description | clear anodized flange kit 1455D enclosures |
| For Use With | Enclosures with part number starting 1455D |
| Kit Contents | Pair of flanged end panels (2 panels total) with black pan head assembly screws |
| Short Description | CLR, D FLANGED ENDPLATES, 2/PK |
| Alternative Finish | black anodized 1455DFBK |
| Replacement Screws For Flange Kits | 1455MSFL100BK (100-pack) |
Dimensions
| Additional Holes | 2 x Ø4.00 mm [0.157 in] |
| Drawing Dimensions | 42.50 mm [1.673 in]; 35.60 mm [1.402 in]; 30.00 mm [1.181 in]; 25.40 mm [1.000 in]; 12.70 mm [0.500 in]; 11.50 mm [0.453 in]; 1.43 mm [0.056 in] |
| Flange Mounting Holes | 2 x Ø4.50 mm [0.177 in], hole for #6 & #8 screw |
Identifiers
| UPC | 623980102344 |
| UNSPSC | 39121301 |
| Part Number | 1455DF |
Packaging & Shipping
| Pack Quantity | 2 per pack |
| Packaging Type | bag |
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Color | Clear (Anodize) |
| Material | Aluminum |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1455DF fit?▾
It is listed for 1455 series enclosures whose part number starts with 1455D.
How many panels are in the kit?▾
The kit is sold as a pair, 2 panels total, and includes black pan head assembly screws.
What screw size do the flange holes take?▾
The drawing shows 2 x Ø4.50 mm [0.177 in] holes marked for #6 and #8 screws.
Can I get replacement screws for the flange kit?▾
Yes. Replacement screws for flange kits are listed as 1455MSFL100BK, a 100-pack.
What finishes are available?▾
The 1455D flange kit is offered in clear anodize (1455DF) and black anodize (1455DFBK); this part is the clear anodized version.
Related Products

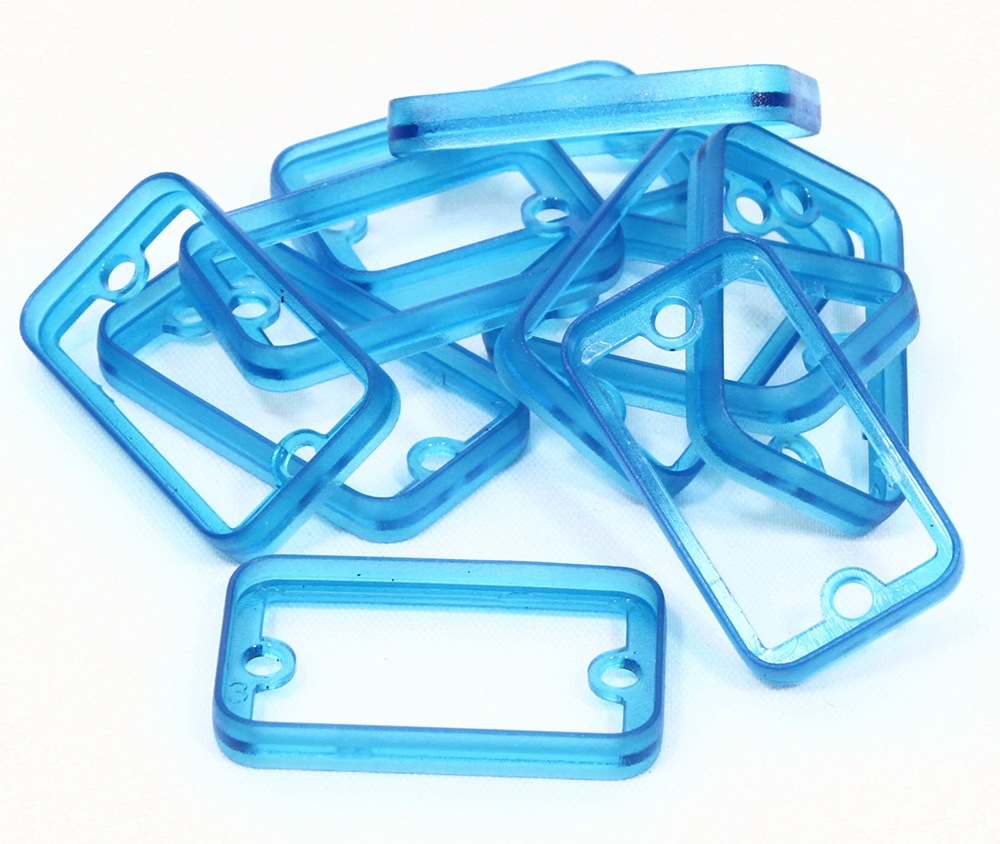

Save 52%1455DBTBU-10 — translucent blue plastic bezels for 1455D enclosures- 10/pack
Hammond Manufacturing · 1455DBTBU-10

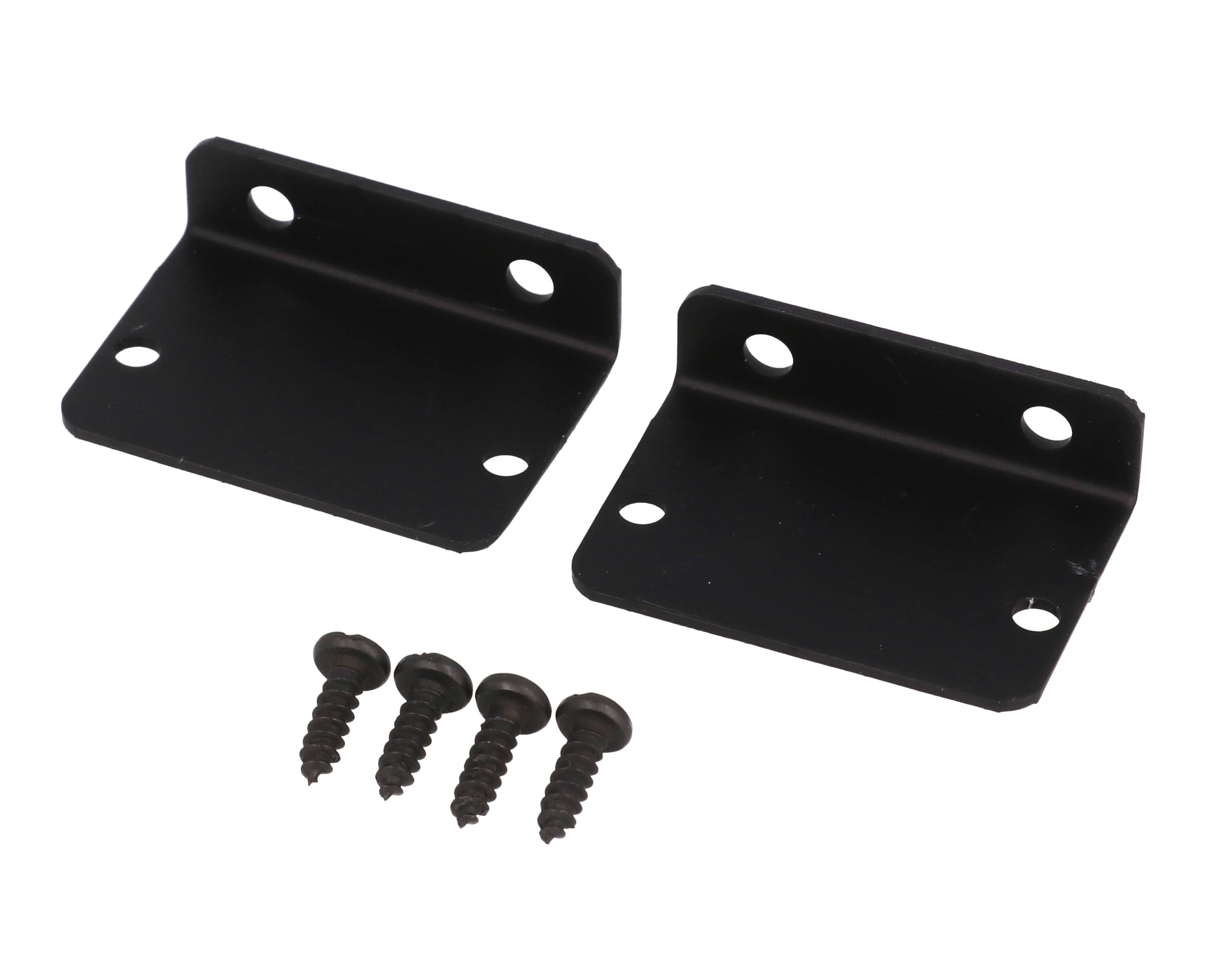

Save 52%1455DFBK — black anodized flange kit for 1455D enclosures
Hammond Manufacturing · 1455DFBK
Save 52%1455DBTBU — translucent blue plastic bezels for 1455D enclosures- 2/pack
Hammond Manufacturing · 1455DBTBU

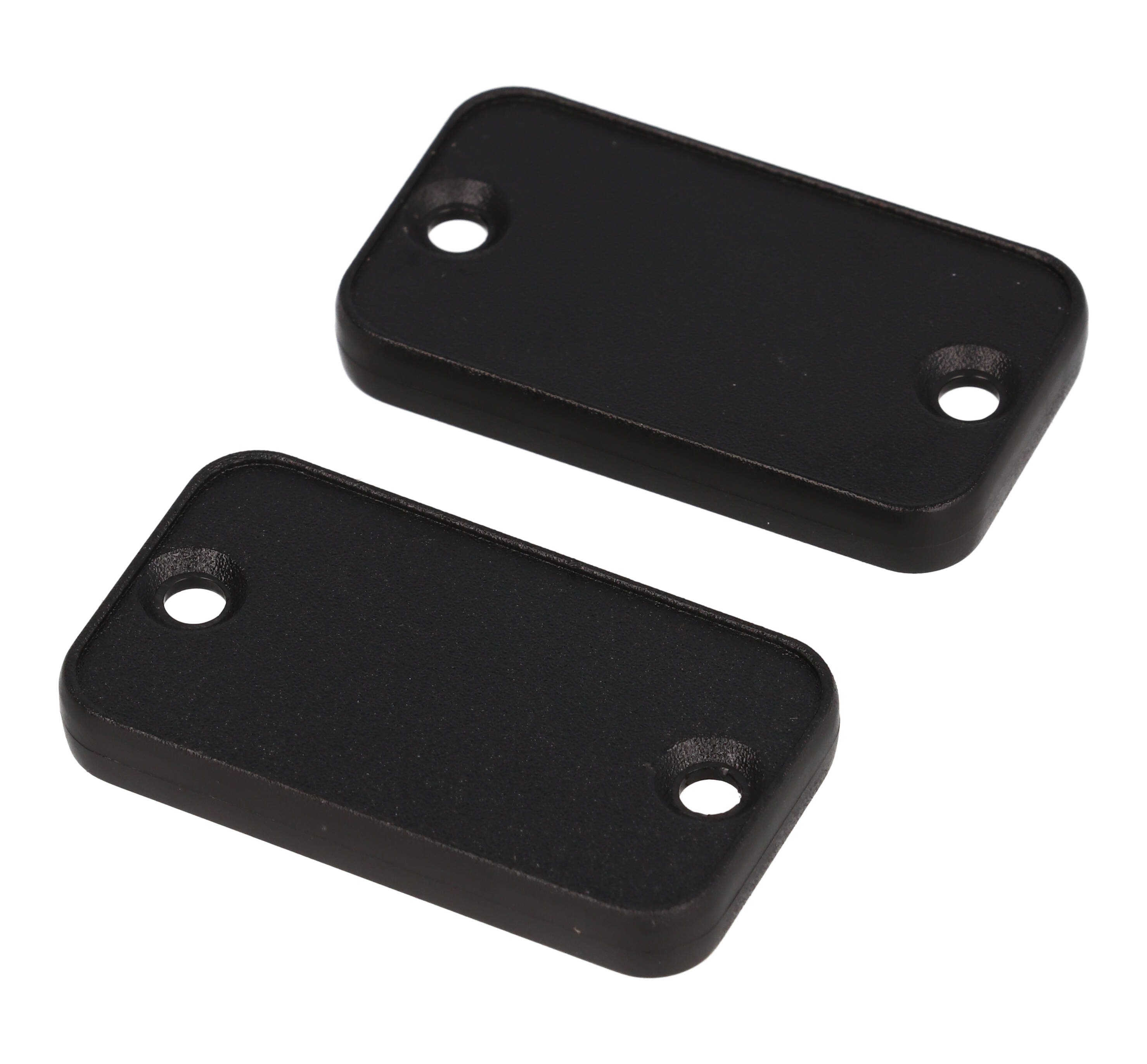

Save 52%1455DPLBK — black plastic bezels for 1455D enclosures- 2/pack
