Hammond 1455CS801 Clear Square Extruded Aluminum Enclosure, 80x54x54mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 80 x 54 x 54 mm (3.15 x 2.13 x 2.13 in) extruded aluminum body, clear anodized
- Extrusion designed for a 50 mm wide PC board mounted horizontally in internal slots

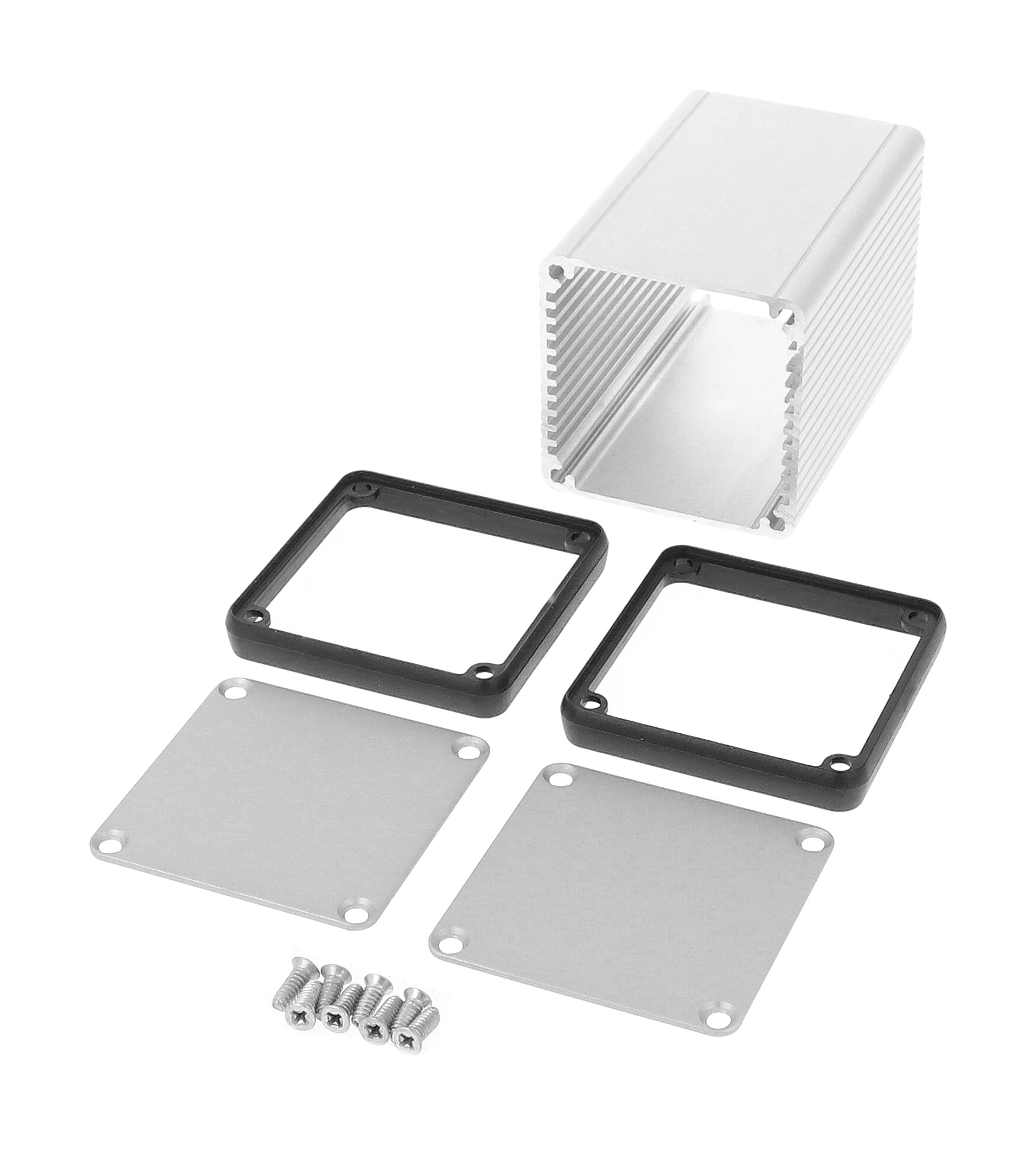

- Two flat aluminum end panels colour matched to the housing, plus two open black plastic bezels
- Extruded aluminum body with 0.06 in (1.5 mm) minimum thickness
- #6 x 3/8 in thread-rolling end panel screws (natural) and four adhesive rubber feet included
- Factory modification available: milling, drilling, printing; STEP or IGES models
- RoHS and REACH compliant
The 1455CS801 is a square-profile extruded aluminum enclosure from the 1455 Series, measuring 80 x 54 x 54 mm (3.15 x 2.13 x 2.13 in) with a clear anodize finish and metal end panels. It is designed to house PC boards or to serve in equipment interfacing, making it a fit for OEM engineers and electronics builders who want a short, deep housing.
The rugged body is extruded aluminum with a minimum thickness of 0.06 in (1.5 mm). The extrusion is designed for a 50 mm wide PC board, which mounts horizontally by sliding into internal slots extruded into the body. The internal width is 51.00 ± 0.50 mm. This size is listed without a sliding belly plate.
As a metal end plate version, the 1455CS801 includes two flat aluminum end panels colour matched to the clear housing plus two open black plastic bezels that frame them, along with four adhesive rubber feet. End panels fasten with #6 x 3/8 in thread-rolling steel screws with a #4 flat head Phillips drive, supplied in a natural finish; the recommended screw torque is 5 lbf-in. Replacement screws are 1455MS100 (quantity 100) and replacement feet are 1421T2CL (pack of 24).
Shipping weight is 0.29 lbs (0.13 kg), and the part is RoHS and REACH compliant. The enclosure can be factory modified with milling, drilling or printing, with solid models available in STEP or IGES. The colour sibling is 1455CS801BK (black); the plastic end panel version of this size is 1455CS802.
Ideal For
- Housing a 50 mm wide PC board
- Equipment interfacing enclosures
- Panel-mount connectors or controls on aluminum end plates
- OEM electronic assemblies
Included
| Included Items | Extruded aluminum body, two flat aluminum end panels (colour matched to housing), two open plastic bezels (black), four adhesive rubber feet, end panel screws |
| End Panel Screws | #6 x 3/8" thread rolling, steel, #4 flat head Phillips drive (natural) |
| Replacement Screws | 1455MS100 (quantity 100) |
| Replacement Rubber Feet | 1421T2CL (pack of 24) |
Overview
| Series | 1455 Series Extruded Aluminum Enclosures |
| Description | extruded aluminum enclosure w/ metal end panels |
| Part Number | 1455CS801 |
| Sliding Plate | No (Enclosures Without Sliding Plate) |
| End Panel Type | Aluminum (metal) end panels |
| Short Description | 80 X 54 X 54MM SQUARE EXT ENCL |
PC Board
| Board Mounting | Horizontal, slides into internal slots extruded into the body; extrusion designed for 50 mm wide PC board |
Dimensions
| Bezel Depth | 9.00 mm [0.354 in] |
| End Plate Size | 54.10 mm x 54.10 mm [2.130 in x 2.130 in] |
| Internal Width | 51.00 ± 0.50 mm [2.008 ± 0.020 in] |
| Extrusion Length | 80.00 ± 0.50 mm [3.150 ± 0.020 in] |
| Size (L X W X H) | 3.15 in x 2.13 in x 2.13 in (80 mm x 54 mm x 54 mm) |
| Open Bezel Outer Size | 57.40 mm x 57.40 mm [2.260 in x 2.260 in] |
| Extrusion Width X Height | 54.00 mm x 54.00 mm [2.126 in x 2.126 in] |
Identifiers
| UPC | 623980222882 |
| UNSPSC | 39121301 |
| Plastic End Panel Equivalent | 1455CS802 |
Installation
| Recommended Screw Torque | 5 lbf-in |
Packaging & Shipping
| Shipping Weight | 0.29 lbs (0.13 kg) |
Construction & Finish
| Anodize Color | Clear |
| Body Material | Extruded aluminum |
| Customization | Can be factory modified (milling, drilling, printing etc.); solid models available in STEP or IGES |
| Minimum Wall Thickness | 0.06" (1.5 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1455CS801?▾
3.15 in x 2.13 in x 2.13 in (80 mm x 54 mm x 54 mm).
What PC board width does it accept?▾
The extrusion is designed for a 50 mm wide PC board, which slides horizontally into internal slots.
What end panels are included?▾
Two flat aluminum end panels colour matched to the clear housing, plus two open black plastic bezels.
What screws are used and how tight should they be?▾
#6 x 3/8" thread-rolling steel screws with a #4 flat head Phillips drive (natural); recommended torque is 5 lbf-in. Replacements: 1455MS100 (100).
Does this size have a sliding belly plate?▾
No, it is listed among the 1455 enclosures without a sliding plate.
Can I get it machined or printed?▾
Yes, the enclosure can be factory modified (milling, drilling, printing etc.).
