Hammond 1455A1202 120x70x12mm Clear Anodized Extruded Aluminum Enclosure

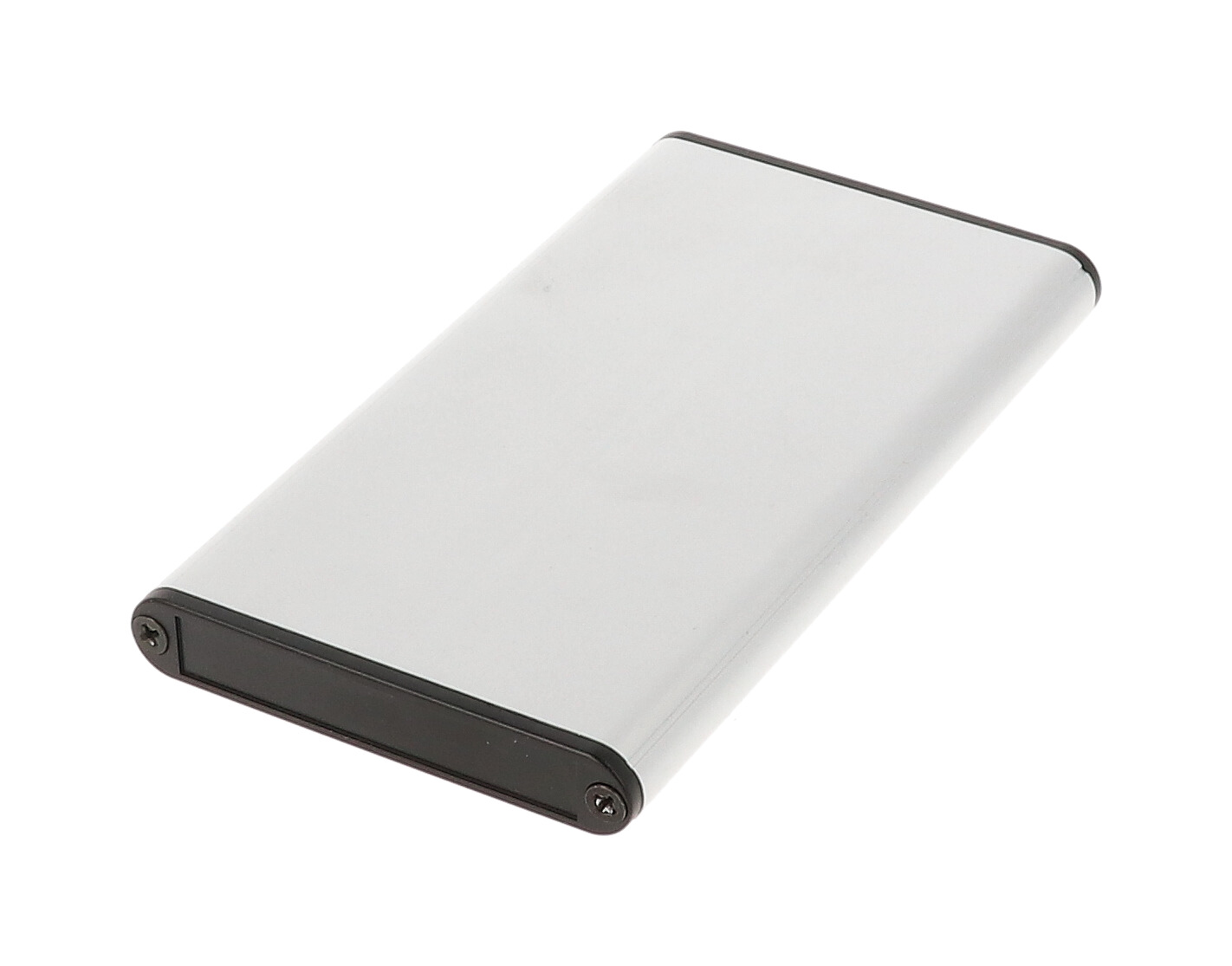

The 1455A1202 is a clear anodized extruded aluminum enclosure with plastic end panels from the 1455 Series, measuring 4.72 in x 2.76 in x 0.47 in (120 mm x 70 mm x 12 mm). Designed to house PC boards or for equipment interfacing, it suits electronics designers, OEM engineers and hobbyists building slim, low-profile devices. At 120 mm long, this clear anodized model is the longest A-size length, accepting PC boards up to 119 mm long in the same 12 mm-high profile.

The box is made from extruded aluminum 6063, with the series specifying a minimum body thickness of 0.06" (1.5 mm), and the bezels are made from polycarbonate. PC boards mount horizontally by sliding into internal slots extruded into the enclosure body. The extrusion is designed for 60 mm wide x 120 mm long PC boards, with a maximum board size of 119 mm long by 59.5 mm wide. This A-size model is listed among the enclosures without a sliding plate.

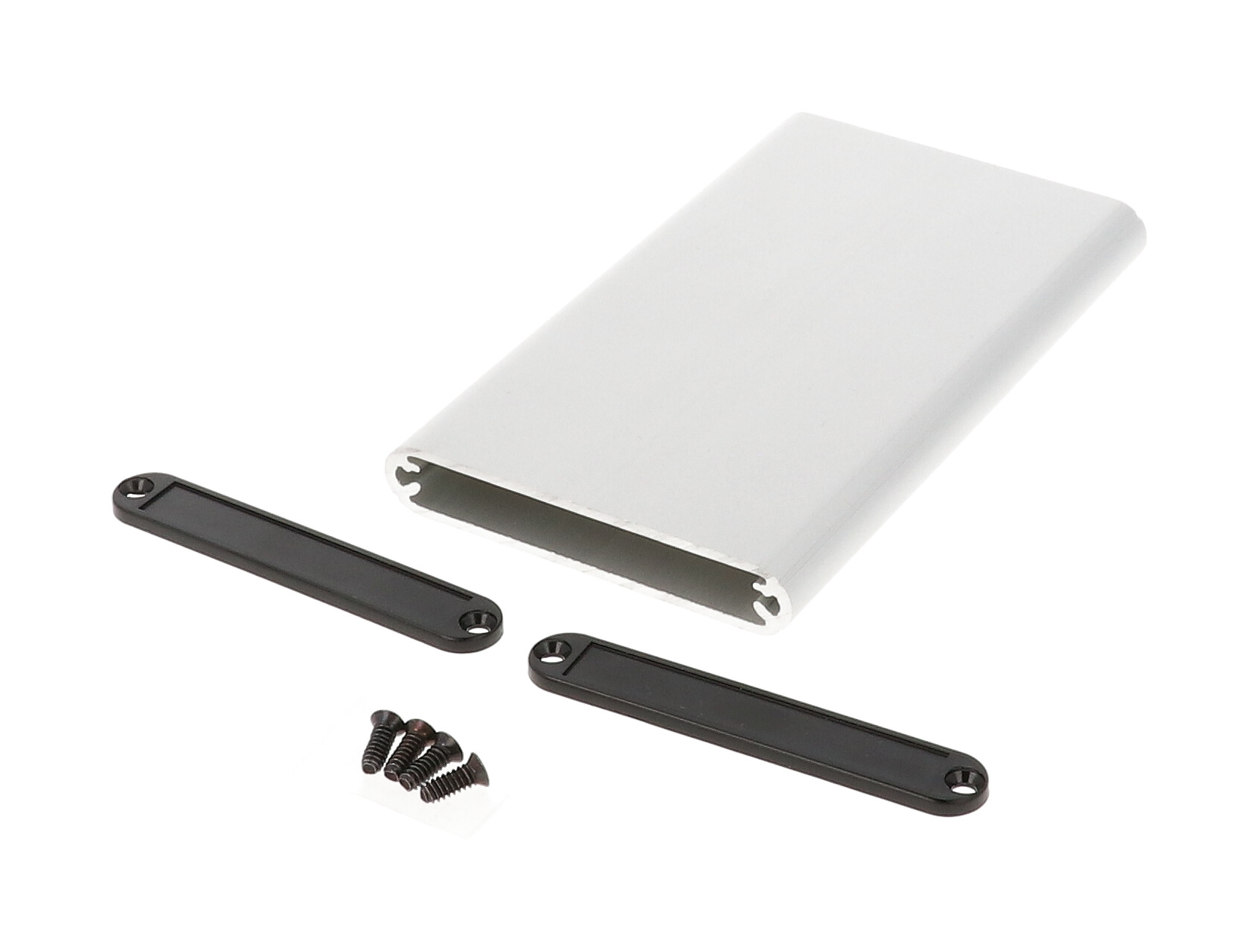

The purchased assembly includes the box, plastic bezels, #6 Taptight screws and self-adhesive rubber feet. Per the series, plastic end-plate versions include two closed end panels in black, four adhesive rubber feet, and #6 x 3/8" thread rolling steel end-panel screws with a #4 flat head Phillips drive; clear anodized versions include natural screws. Recommended screw torque is 5 lbf-in.

The 1455A1202 is rated IP54 and is RoHS and REACH compliant. The drawing shows an overall length of 121.00 ± 0.50 mm [4.764 ± 0.020 in], and it ships shrink wrapped at 0.19 lbs (0.09 kg). Enclosures can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES.
