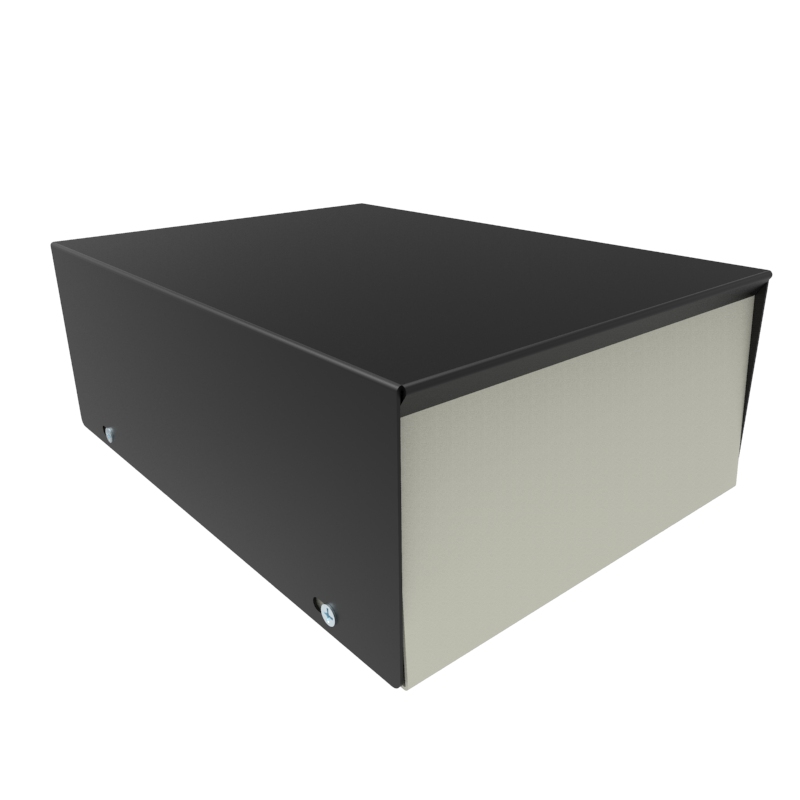

Hammond 1454N 8.25x6x3 in Low-Profile Steel Instrument Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8.25 in W x 6.00 in D x 3.00 in H (210 x 152 x 76 mm) low-profile case
- Strong, economical 20 gauge steel
- Rugged powder coat: beige panels with textured black covers
- Sloping or vertical front panel by reversing the case
- Includes 6-32 Philips nickel plated screws and self-adhesive rubber feet
- Factory milling, drilling and printing available
- RoHS and REACH compliant
The 1454N is a low-profile 20 gauge steel instrument case from the 1454 Series, measuring 8.25 in wide by 6.00 in deep by 3.00 in high (210 x 152 x 76 mm). Its wide, shallow shape gives generous front-panel width for switches, meters and connectors while keeping bench height down.
The body is strong, economical 20 gauge steel finished in a rugged powder coat: beige panels with textured black covers, with black listed as the colour. The case can be reversed to give either a sloping or a vertical front panel. Note that the short description reads UTILITY CASE 8.0 X 6.0 X 3.0, while the size and ordering table give the width as 8.25 in.
The manufacturer drawing confirms an overall cover footprint of 209.55 mm [8.250 in] by 152.40 mm [6.000 in] with a height of 76.20 mm [3.000 in]. Shipping weight is 2.59 lbs (1.17 kg), packed in a box.
6-32 Philips nickel plated screws and self-adhesive rubber feet are included, with replacements available as 1421J6 (6 screws) and 1421T2 (24 rubber feet). The 1454N can be factory modified by milling, drilling or printing, solid models are offered in STEP or IGES, and it is RoHS and REACH compliant.
Ideal For
- Wide, low-profile instrument housings
- Front-panel control and meter boxes
- OEM electronics enclosures
- Custom cases with factory milling, drilling or printing
Overview
| Type | Instrument Enclosure |
| Series | 1454 Series Instrument Enclosure |
| Part Number | 1454N |
| Long Description | enclosure - 20 gauge steel instrument case |
| Short Description | UTILITY CASE 8.0 X 6.0 X 3.0 |
Dimensions
| Depth | 6.00 in (152 mm) |
| Width | 8.25 in (210 mm) |
| Height | 3.00 in (76 mm) |
| Size (L X W X H) | 8.25 in x 6 in x 3 in (210 mm x 152 mm x 76 mm) |
Identifiers
| UPC | 623980000398 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 2.59 lbs (1.17 kg) |
Construction & Finish
| Color | Black |
| Finish | Rugged powder coat: beige panels with textured black covers |
| Material | Steel |
| Steel Gauge | 20 gauge |
| Front Panel Orientation | Sloping or vertical front panel by reversing the case |
Hardware & Accessories
| Included Hardware | 6-32 Philips nickel plated screws and self-adhesive rubber feet |
| Replacement Screws | 1421J6 (pack of 6x #6-32 Philips head screws) |
| Replacement Rubber Feet | 1421T2 (pack of 24x black rubber feet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1454N?▾
The 1454N is 8.25 in wide x 6.00 in deep x 3.00 in high (210 mm x 152 mm x 76 mm). The drawing shows 209.55 mm [8.250 in] x 152.40 mm [6.000 in].
Why does the description say 8.0 x 6.0 x 3.0?▾
The short description reads UTILITY CASE 8.0 X 6.0 X 3.0, but the listed size, the series ordering table and the drawing all give the width as 8.25 in (210 mm).
Can the front panel be vertical or sloping?▾
Yes. The 1454 series offers a choice of sloping or vertical front panels by reversing the case.
What hardware comes with it?▾
6-32 Philips nickel plated screws and self-adhesive rubber feet are included. Replacement screws are part 1421J6 (pack of 6) and replacement rubber feet are part 1421T2 (pack of 24).
Is the 1454N RoHS and REACH compliant?▾
Yes, it is listed as compliant with both.
What is the shipping weight?▾
2.59 lbs (1.17 kg), shipped in a box.
