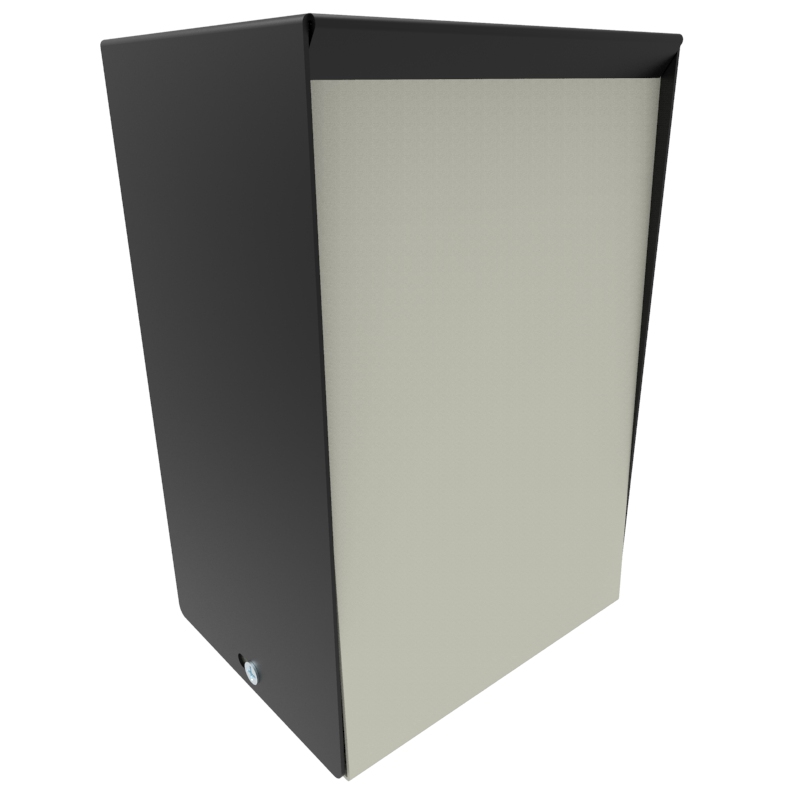

Hammond 1454M 4x3x6 in Tall Steel Instrument Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Tall format: 4.00 in W x 3.00 in D x 6.00 in H (102 x 76 x 152 mm)
- 20 ga. steel case (gray per drawing) with textured black 20 ga. steel cover
- Reverse the case for a sloping or vertical front panel
- 4 supplied #6-32 x 1/4" self-tap screws plus self-adhesive rubber feet
- Factory modification available: milling, drilling, printing
- Solid models available in STEP or IGES
- RoHS and REACH compliant
The 1454M is a tall, narrow 20 gauge steel instrument enclosure in the 1454 Series, measuring 4.00 in wide by 3.00 in deep by 6.00 in high (102 x 76 x 152 mm). Its upright proportions make it a fit for small control boxes, vertical instrument housings and OEM projects where footprint matters more than height.
Construction is strong, economical 20 gauge steel with a rugged powder coat finish. The part drawing specifies a 20 ga. steel case in gray and a 20 ga. steel cover with a textured black finish; the listed colour is black. Reversing the case gives a choice of a sloping or vertical front panel.
- Overall cover footprint (drawing): 101.60 mm [4.000 in] x 82.55 mm [3.250 in]
- Height (drawing): 152.40 mm [6.000 in]
- Shipping weight: 1.36 lbs (0.62 kg)
The drawing lists 4 supplied screws (#6-32 x 1/4 in self tap) and self-adhesive rubber feet; replacements are 1421J6 (6 screws) and 1421T2 (24 black rubber feet). The 1454M can be factory modified by milling, drilling or printing, solid models are available in STEP or IGES, and it is RoHS and REACH compliant. It ships in a box.
Ideal For
- Tall, narrow instrument housings
- Small upright control boxes
- OEM electronics enclosures
- Factory-modified cases with milling, drilling or printing
Overview
| Type | Instrument Enclosure |
| Series | 1454 Series Instrument Enclosure |
| Part Number | 1454M |
| Long Description | enclosure - 20 gauge steel instrument case |
| Short Description | UTILITY CASE 4.0X3.0X6.0 |
Dimensions
| Depth | 3.00 in (76 mm) |
| Width | 4.00 in (102 mm) |
| Height | 6.00 in (152 mm) |
| Size (L X W X H) | 4 in x 3 in x 6 in (102 mm x 76 mm x 152 mm) |
Identifiers
| UPC | 623980504803 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 1.36 lbs (0.62 kg) |
Construction & Finish
| Color | Black |
| Finish | Rugged powder coat: beige panels with textured black covers |
| Material | Steel |
| Steel Gauge | 20 gauge |
| Cover (Drawing) | 20 ga. Steel, Textured black finish |
| Case Material (Drawing) | 20 ga. Steel, Gray color |
| Front Panel Orientation | Sloping or vertical front panel by reversing the case |
Hardware & Accessories
| Feet (Drawing) | Self-Adhesive rubber |
| Screws (Drawing) | 4 Supplied (#6-32 X 1/4" self tap) |
| Included Hardware | 6-32 Philips nickel plated screws and self-adhesive rubber feet |
| Replacement Screws | 1421J6 (pack of 6x #6-32 Philips head screws) |
| Replacement Rubber Feet | 1421T2 (pack of 24x black rubber feet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How big is the 1454M?▾
It is 4.00 in wide x 3.00 in deep x 6.00 in high (102 mm x 76 mm x 152 mm). The drawing shows an overall cover footprint of 101.60 mm [4.000 in] x 82.55 mm [3.250 in].
What colour and material is the 1454M?▾
The drawing lists the case as 20 ga. steel, gray color, and the cover as 20 ga. steel with a textured black finish. The part listing gives the colour as black, and the series describes a rugged powder coat finish.
What screws are supplied?▾
The drawing lists 4 supplied screws (#6-32 X 1/4" self tap). Replacement screws are part 1421J6, a pack of 6 #6-32 Philips head screws.
Can the front panel be vertical or sloping?▾
Yes. The 1454 series offers a choice of sloping or vertical front panels by reversing the case.
Is the 1454M RoHS compliant?▾
Yes, it is listed as both RoHS and REACH compliant.
What does it weigh?▾
Shipping weight is 1.36 lbs (0.62 kg).
