Hammond 1444-20 17x4x3 Inch Natural Aluminum Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm) natural aluminum chassis
- Spot welded, heavy duty construction in 0.040 in aluminum
- Drawing inner box 429.77 mm [16.92 in] long, 99.57 mm [3.92 in] wide, 74.17 mm [2.92 in] high
- Matching bottom plate 1434-20, punched with 4 holes of 3/16 in diameter, sold separately
- Cover screws 1421J6: package of six 6-32 x 1/4 in self-tapping screws, sold separately
- Factory modification (milling, drilling, printing) available; STEP or IGES models
- RoHS and REACH compliant; ships in shrink wrap
The 1444-20 is a 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm) aluminum chassis. Its full 17 in width with only 4 in of depth makes it a distinctive shape in the 1444 Series, suited to long front panels, strip-style audio or control units, and electronics that need height but little depth.
The chassis is spot welded, heavy duty construction in 0.040 in aluminum (0.04 in / 1 mm) with a natural aluminum finish. The protective covering on the aluminum can be used as a layout tool, per the series photo notes.
From the drawing, the inner box is 429.77 mm [16.92 in] long, 99.57 mm [3.92 in] wide and 74.17 mm [2.92 in] high. The 1444-20 ships at 0.79 lbs (0.36 kg).
Bottom plate 1434-20 (natural finish, 0.040 in aluminum, punched with 4 holes of 3/16 in diameter) closes the underside, secured with plated cover screws 1421J6 (package of 6, 6-32 x 1/4 in self-tapping). Both are sold separately, and the 1451 series steel chassis covers do not fit this series.
The 1444-20 is RoHS and REACH compliant and ships in shrink wrap. Factory modification (milling, drilling, printing) is available, with STEP or IGES solid models on request.
Ideal For
- Tube amplifier and audio equipment builds
- Vintage and classic-style electronics projects
- Chassis-mounted electronics prototypes
- Custom enclosures with factory milling, drilling or printing
Overview
| Type | Chassis (Aluminum) |
| Series | 1444 Series Aluminum Chassis |
| Description | chassis - aluminum |
| Short Description | ALUMINUM CHASSIS 17X4X3 |
Dimensions
| Depth | 4.00 in (102 mm) |
| Width | 17.00 in (432 mm) |
| Height | 3.00 in (76 mm) |
| Inner Box Width | 99.57 mm [3.92 in] |
| Inner Box Height | 74.17 mm [2.92 in] |
| Inner Box Length | 429.77 mm [16.92 in] |
| Size (L X W X H) | 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm) |
Identifiers
| UPC | 623980498508 |
| UNSPSC | 39121301 |
| Part Number | 1444-20 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. (contact factory for quotes) |
Included Items
| Components | All components sold separately |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
| Construction | Spot welded - heavy duty construction |
| Aluminum Thickness | 0.04 in (1 mm) |
| Chassis Material (Drawing) | Made of 0.040" Aluminum |
Accessories & Compatibility
| Not Compatible With | 1451 series steel chassis covers |
| Bottom Plate (Sold Separately) | 1434-20 (Natural Finish; made of 0.040" Aluminum; punched with 4 holes, 3/16 in diameter) |
| Cover Screws (Sold Separately) | 1421J6 Plated Cover Screws (Pkg 6) [6-32 x 1/4" Self-Tapping Screws] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1444-20?▾
The 1444-20 measures 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm). The drawing gives inner box 429.77 mm [16.92 in] long, 99.57 mm [3.92 in] wide, 74.17 mm [2.92 in] high.
Does the 1444-20 include a bottom plate?▾
No. The bottom plate is 1434-20 and is sold separately, along with 1421J6 cover screws (package of six 6-32 x 1/4 in self-tapping screws).
What aluminum thickness is used?▾
The ordering table lists 0.04 in (1 mm), and the drawing states the chassis is made of 0.040" Aluminum; the bottom plate is also made of 0.040" Aluminum.
Can I fit a 1451 series steel cover to the 1444-20?▾
No. The series notes state that the 1451 series steel chassis covers are not compatible with the 1444 Series.
Can the chassis be modified at the factory?▾
Yes. The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
Related Products
Save 52%1444-18 — chassis - aluminum
Hammond Manufacturing · 1444-18
Save 52%1444-22 — chassis - aluminum
Hammond Manufacturing · 1444-22
Save 52%1444-1783 — chassis - aluminum
Hammond Manufacturing · 1444-1783
Save 52%1444-22CWW — chassis - aluminum with wood sides
Hammond Manufacturing · 1444-22CWW

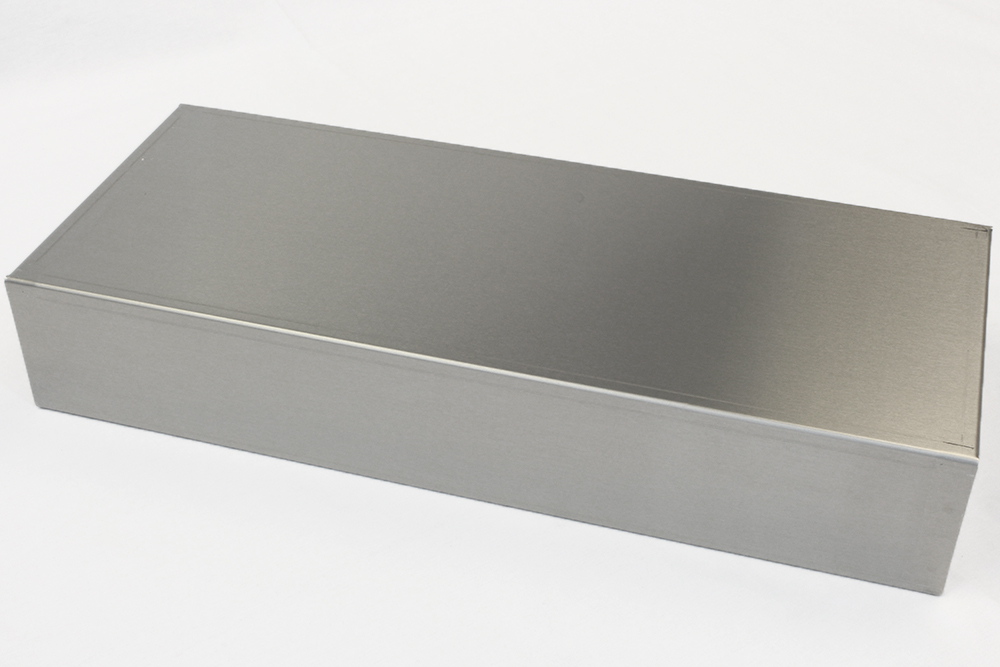

Save 52%1444-1773 — chassis - aluminum
