Hammond 1444-17143 17x14x3" Spot-Welded Aluminum Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 17 x 14 x 3 in (432 x 356 x 76 mm) aluminum chassis, width x depth x height
- Inner box 16.90 x 13.90 x 2.90 in (L x W x H) per the part drawing
- Spot-welded, heavy-duty construction in 0.051" (1.30 mm) aluminum
- Natural aluminum finish; protective covering doubles as a layout surface
- Optional bottom plate 1434-1714 with four 3/16" holes, sold separately
- Bottom plate screws: order 1421J6 (6 pcs, 6-32 x 1/4" self-tapping)
- RoHS and REACH compliant; STEP or IGES solid models available
- Not compatible with 1451 Series steel chassis covers
Measuring 17 x 14 x 3 in (432 x 356 x 76 mm), the 1444-17143 is a natural-finish aluminum chassis in the 1444 Series, sized for OEM engineers, hobbyists and audio builders assembling tube, audio or other classic-style electronics on a sturdy metal deck.
The chassis is spot welded for heavy-duty construction and formed from 0.051" (1.30 mm) aluminum — the thicker of the two gauges used in the series. It ships in a natural aluminum finish, and the protective covering on the aluminum can double as a layout surface for marking hole positions before you cut.
Inside, the drawing gives an inner box of 16.90 in (429.21 mm) long, 13.90 in (353.01 mm) wide and 2.90 in (73.61 mm) high, so you can check internal component clearances before ordering. Shipping weight is 0.25 lbs (0.11 kg).
The bottom is open. A matching natural-finish bottom plate, part 1434-1714, is available separately; bottom plates are punched with four 3/16" diameter holes and are made from the same 0.051" aluminum. Mounting hardware for the plate is not included — order 1421J6, a package of six 6-32 x 1/4" self-tapping cover screws.
Keep in mind that Hammond's 1451 Series steel chassis covers are not compatible with this series. The chassis is RoHS and REACH compliant, can be factory modified (milling, drilling, printing) on request, and solid models are available in STEP or IGES formats.
Ideal For
- Tube amplifier and audio chassis builds
- Classic and vintage-style electronics projects
- Prototype and OEM electronics mounting base
- Custom front-panel and connector layouts on aluminum
Overview
| Type | Chassis (Aluminum) |
| Series | 1444 Series Aluminum Chassis |
| CAD Models | Solid models available in STEP or IGES |
| Description | chassis - aluminum |
| Part Number | 1444-17143 |
| Customization | Factory modification available (milling, drilling, printing) |
| Short Description | ALUMINUM CHASSIS 17X14X3 |
Dimensions
| Depth | 14.00 in (356 mm) |
| Width | 17.00 in (432 mm) |
| Height | 3.00 in (76 mm) |
| Inner Box Width | 13.90 in (353.01 mm) |
| Inner Box Height | 2.90 in (73.61 mm) |
| Inner Box Length | 16.90 in (429.21 mm) |
| Size (L X W X H) | 17 in x 14 in x 3 in (432 mm x 356 mm x 76 mm) |
Accessories
| Components | All components sold separately |
| Bottom Plate | 1434-1714 (Natural Finish, 0.051" aluminum) |
| Bottom Plate Holes | 4 holes, 3/16" diameter |
| Bottom Plate Screws | 1421J6 (Pkg of 6, 6-32 x 1/4" self-tapping, Phillips head; not included) |
| Incompatible Covers | 1451 Series steel chassis covers are not compatible |
Identifiers
| UPC | 623980026671 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Bottom | Open; bottom plate sold separately |
| Material | Aluminum |
| Construction | Spot welded, heavy duty |
| Protective Covering | Protective covering on aluminum usable as a layout tool |
| Chassis Material (Drawing) | 0.051" aluminum |
| Aluminum Thickness (Ordering Table) | 0.05 in (1 mm) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1444-17143?▾
The ordering table gives 17.00 in (432 mm) wide, 14.00 in (356 mm) deep and 3.00 in (76 mm) high. The drawing gives an inner box of 16.90 x 13.90 x 2.90 in (length x width x height).
Does it come with a bottom plate?▾
No. All components are sold separately. The matching bottom plate is part 1434-1714, made from 0.051" aluminum and punched with four 3/16" diameter holes.
What screws attach the bottom plate?▾
Bottom plate hardware is not provided. Order part 1421J6, a package of six 6-32 x 1/4" self-tapping Phillips head cover screws.
How thick is the aluminum?▾
The chassis and its bottom plate are made of 0.051" aluminum; the series ordering table lists the thickness as 0.05 in (1 mm).
Will a 1451 Series steel chassis cover fit?▾
No. Hammond states that its 1451 Series steel chassis covers are not compatible with the 1444 Series.
Related Products
Save 52%1444-17135 — chassis - aluminum
Hammond Manufacturing · 1444-17135
Save 52%1444-17154 — chassis - aluminum
Hammond Manufacturing · 1444-17154
Save 52%1444-17134 — chassis - aluminum
Hammond Manufacturing · 1444-17134

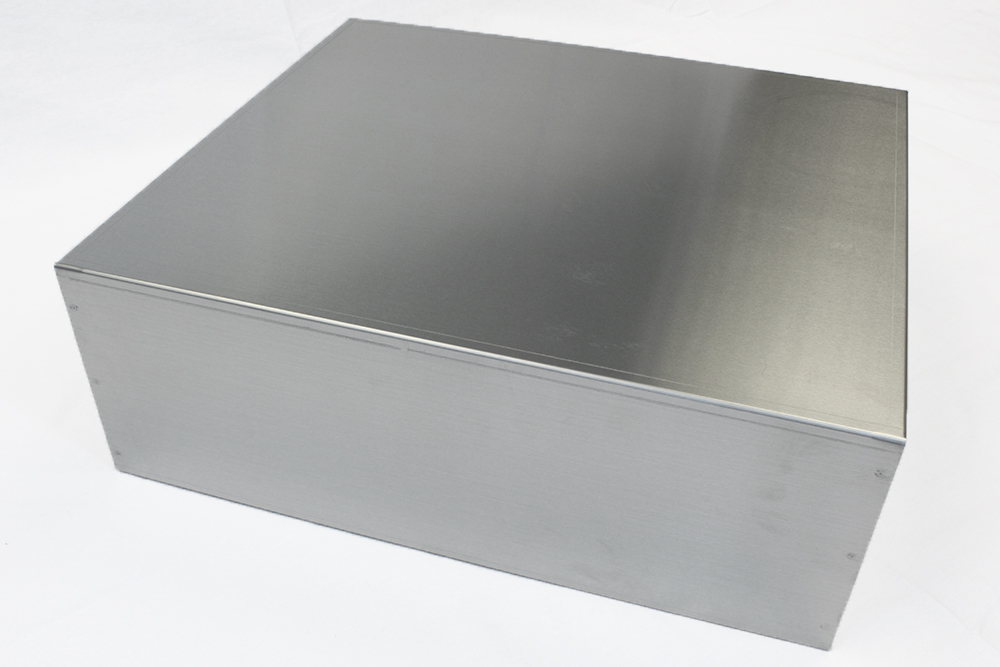

Save 52%1444-17156 — chassis - aluminum
