Hammond 1427WGC 6 in Centers Metal Handle, Grey Posts, Clear Bar

The 1427WGC is a 6 in metal bar handle with plastic end posts from the 1427 Metal Handles w/ Plastic Posts series, made for OEM engineers, panel builders and electronics enclosure users who need a durable pull or carrying handle. With 6.00 in (152 mm) between mounting holes it is the second-longest size in the series, giving a wider grip than the 5 in and 5.3 in versions.

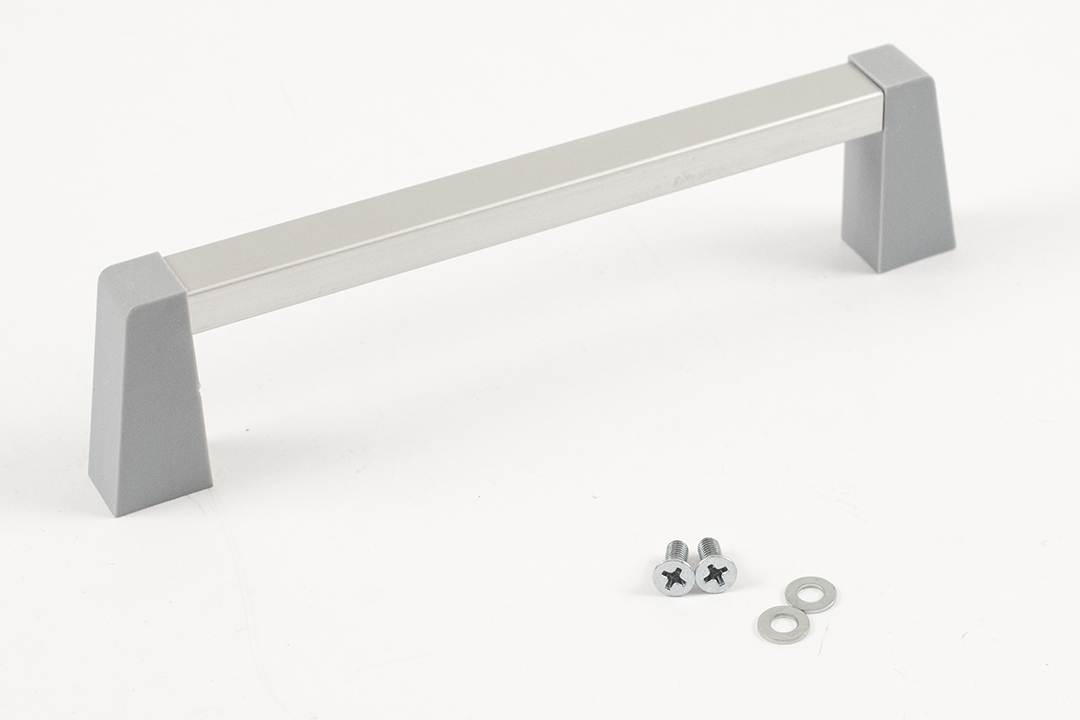

The handle uses a heavy duty extruded anodized aluminum bar held between rugged end posts made of Polyamid with 30% reinforced glass fiber and molded-in brass inserts, giving it a modern style. This version pairs grey end posts with a clear extruded aluminum bar, a lighter two-tone combination that suits grey and light-coloured panels. The same size is also offered as 1427WBC and 1427WBB, since the series provides three colour versions for each size.

Key dimensions for this size:

• Mounting hole centers: 6.00 in (152 mm)
• Overall size (L x W x H): 6.76 in x 0.55 in x 1.64 in (172 mm x 14 mm x 42 mm)
• Handle depth: 1.64 in (42 mm); handle width: 0.52 in (13 mm)
• Overall length on drawing: 171.63 mm; bar length between posts: 135.26 mm

The posts are tapped M4-0.7 (M4x0.7-6H on the drawing) and the handle ships with its hardware: 2 countersink M4 x 10 screws and 2 washers. It is sold singly, so order one per handle position. The 1427WGC is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.11 lbs (0.05 kg).
