Hammond 1427TBC 5 in Centers Metal Handle, Black Posts, Clear Bar

The 1427TBC is a 5 in metal bar handle with plastic end posts from the 1427 Metal Handles w/ Plastic Posts series, made for OEM engineers, panel builders and electronics enclosure users who need a durable pull or carrying handle. Its 5.00 in (127 mm) hole centers place it between the 4 in and 5.3 in sizes in a series that runs from 3 in to 7 in centers.

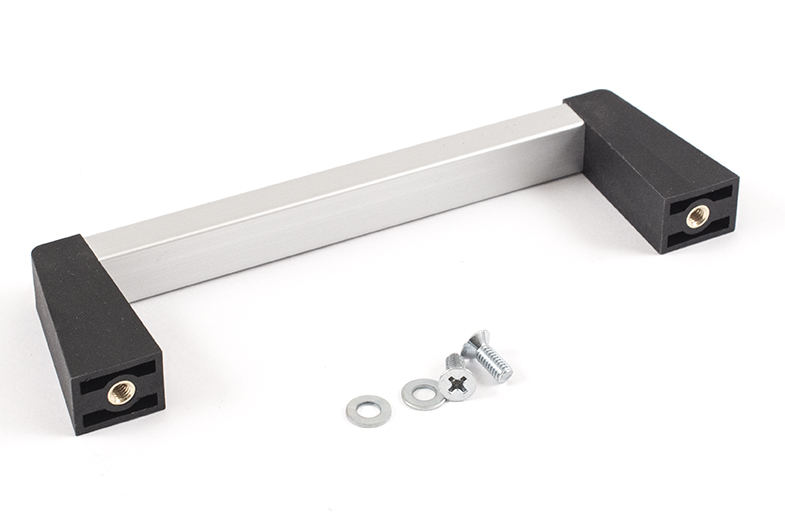

The handle uses a heavy duty extruded anodized aluminum bar held between rugged end posts made of Polyamid with 30% reinforced glass fiber and molded-in brass inserts, giving it a modern style. This version combines black end posts with a clear extruded aluminum bar, giving a two-tone contrast of bright metal against dark posts. The same size is also offered as 1427TBB and 1427TGC, since the series provides three colour versions for each size.

Key dimensions for this size:

• Mounting hole centers: 5.00 in (127 mm)
• Overall size (L x W x H): 5.76 in x 0.55 in x 1.64 in (146 mm x 14 mm x 42 mm)
• Handle depth: 1.64 in (42 mm); handle width: 0.52 in (13 mm)
• Overall length on drawing: 146.23 mm; bar length between posts: 109.86 mm

The posts are tapped M4-0.7 (M4x0.7-6H on the drawing) and the handle ships with its hardware: 2 countersink M4 x 10 screws and 2 washers. It is sold singly, so order one per handle position. The 1427TBC is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.1 lbs (0.05 kg).
