Hammond 1427MGC 5.3 in Centers Metal Handle, Grey Posts, Clear Bar

The 1427MGC is a 5.3 in metal bar handle with plastic end posts from the 1427 Metal Handles w/ Plastic Posts series, made for OEM engineers, panel builders and electronics enclosure users who need a durable pull or carrying handle. The 5.30 in (135 mm) hole spacing sits between the 5 in and 6 in sizes, useful when a panel layout or existing hole pattern calls for that exact spacing.

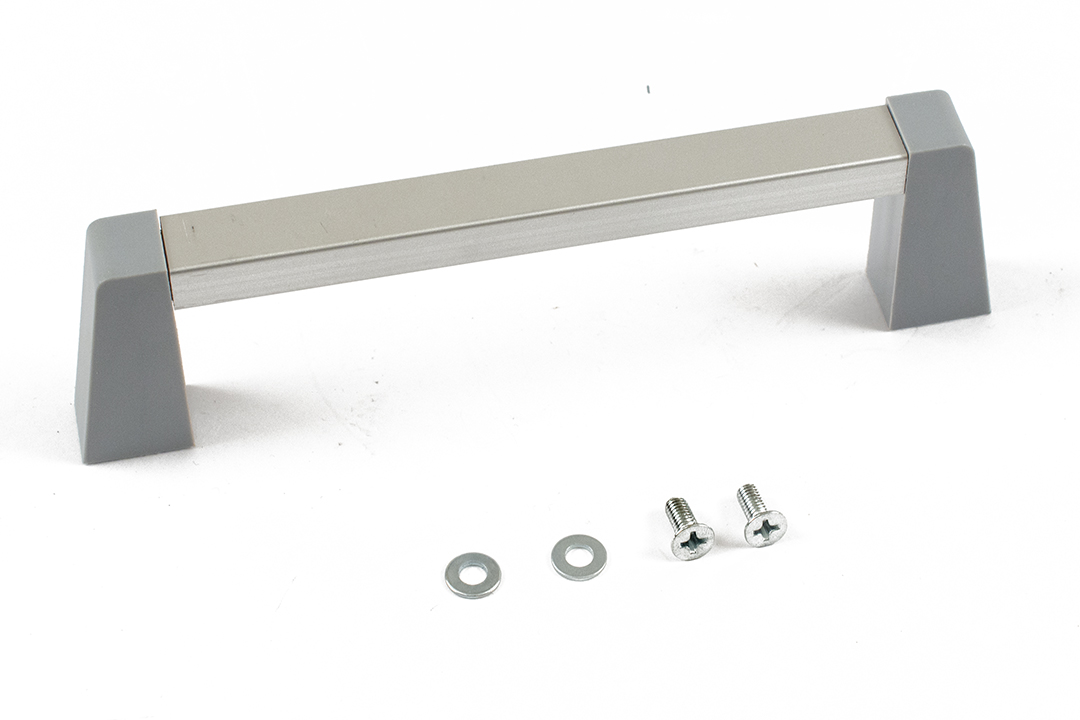

The handle uses a heavy duty extruded anodized aluminum bar held between rugged end posts made of Polyamid with 30% reinforced glass fiber and molded-in brass inserts, giving it a modern style. This version pairs grey end posts with a clear extruded aluminum bar, a lighter two-tone combination that suits grey and light-coloured panels. The same size is also offered as 1427MBC and 1427MBB, since the series provides three colour versions for each size.

Key dimensions for this size:

• Mounting hole centers: 5.30 in (135 mm)
• Overall size (L x W x H): 6.06 in x 0.55 in x 1.64 in (154 mm x 14 mm x 42 mm)
• Handle depth: 1.64 in (42 mm); handle width: 0.52 in (13 mm)
• Overall length on drawing: 153.85 mm; bar length between posts: 117.48 mm

The posts are tapped M4-0.7 (M4x0.7-6H on the drawing) and the handle ships with its hardware: 2 countersink M4 x 10 screws and 2 washers. It is sold singly, so order one per handle position. The 1427MGC is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.11 lbs (0.05 kg).
