Hammond 1427HK Polyester Lid Hinge Kit for 1590ZGRP Enclosures
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Adds hinges to 1590ZGRP glass reinforced polyester enclosure lids
- Polyester hinges with brass inserts; kit rated IP66
- Includes 12 stainless steel M4 screws and 8 Buna-N O-rings
- Screws supplied in 10, 12 and 14 mm lengths for various wall thicknesses
- Mounting/drill templates included; drill 4.25 mm (.167 in) holes
- All four lid screws remain required to maintain a proper seal
The 1427HK is the optional hinge kit for the 1590ZGRP Series of glass reinforced polyester enclosures. It turns the screw-down lid into a hinged lid, which is useful for technicians and integrators who open an enclosure regularly for service or inspection. It is listed on the 1590ZGRP drawings as "Hinge Kit (2 Pack)".

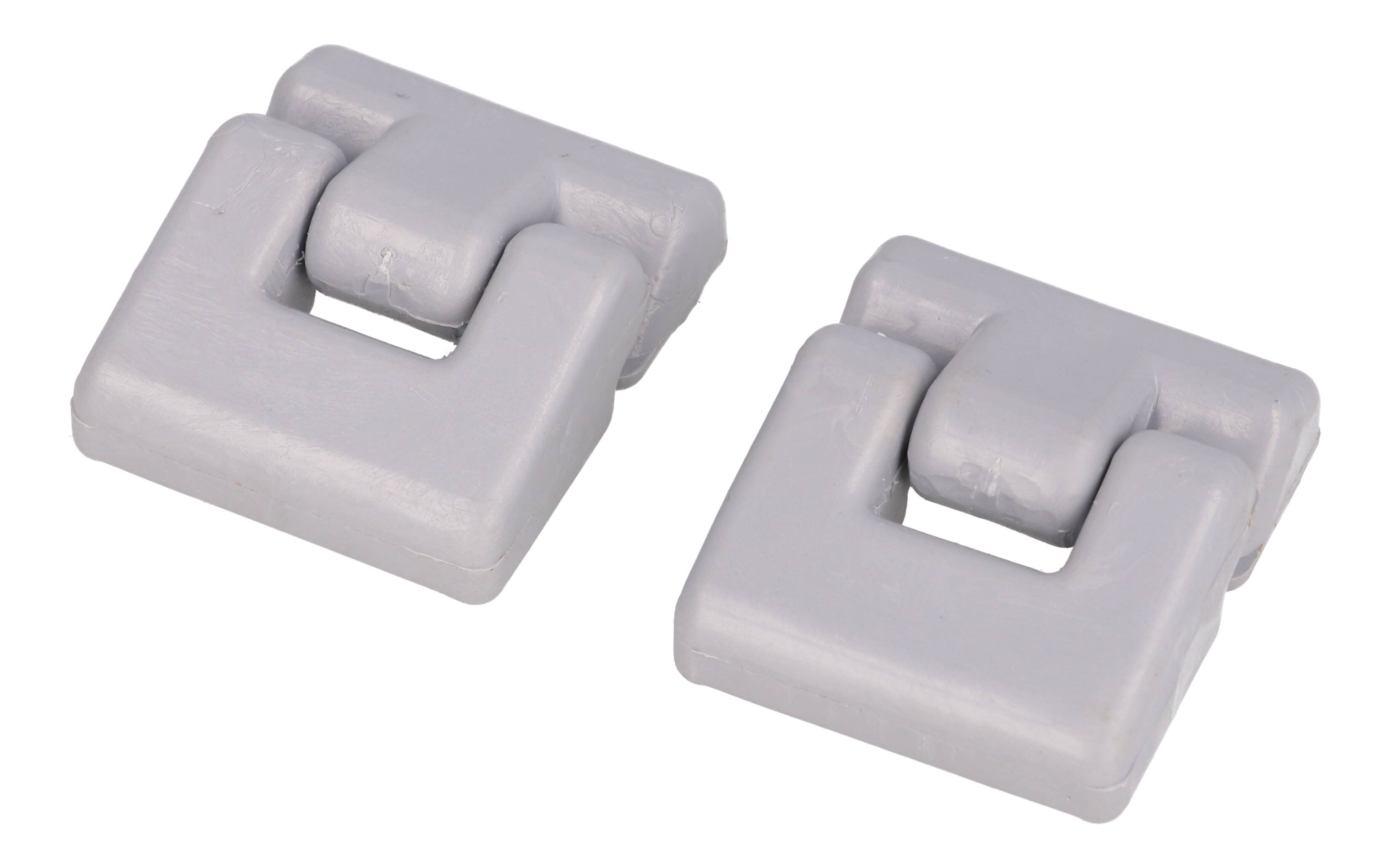

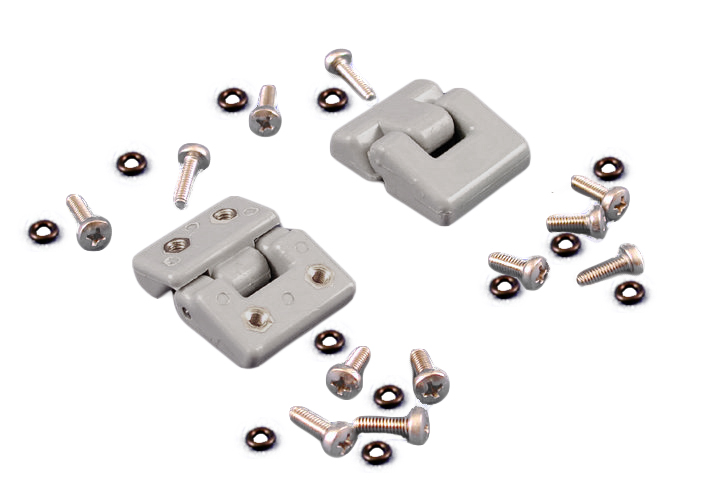

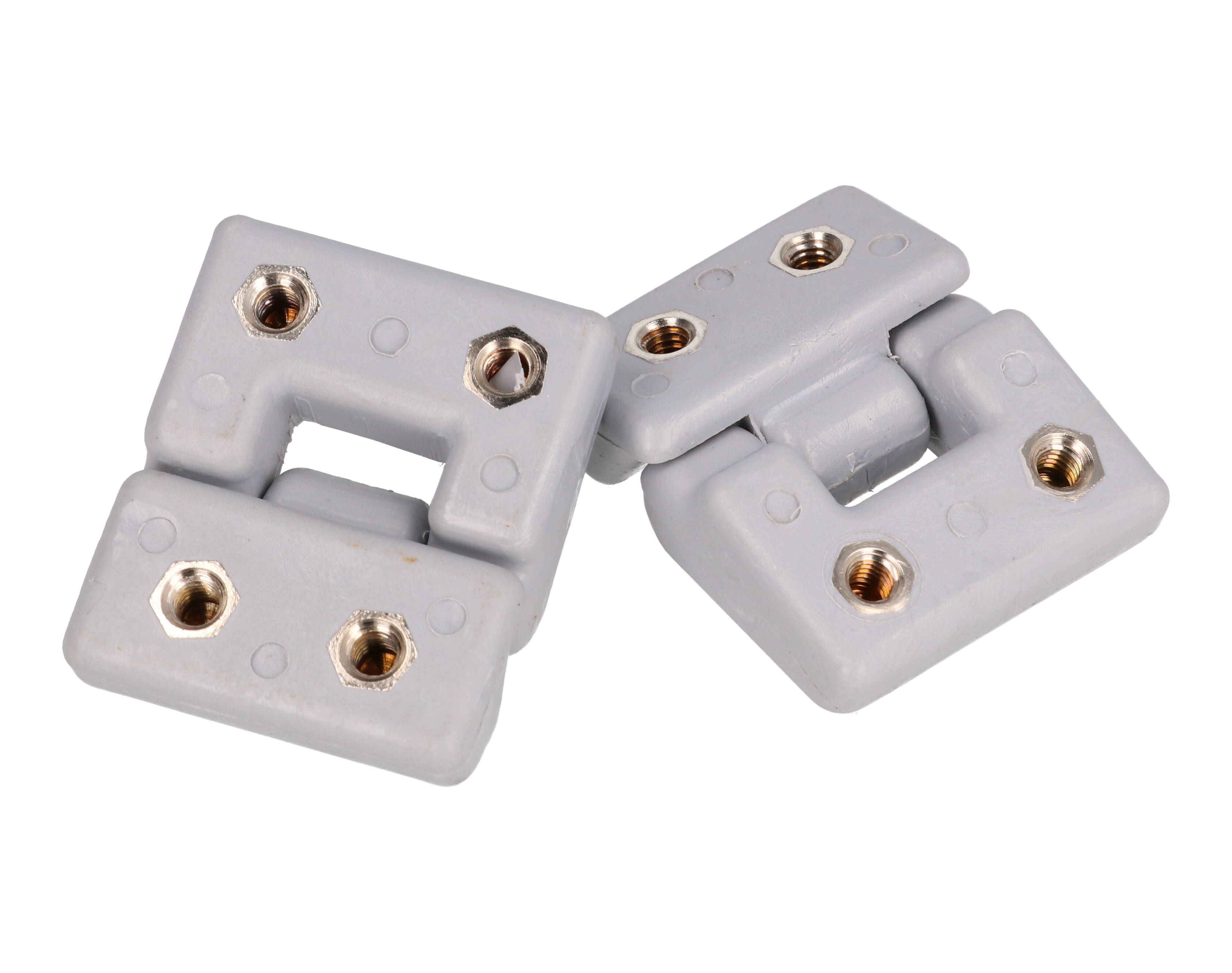

The hinges are molded from tough polyester with brass inserts, and the kit is rated IP66. According to the series sheet it includes 12 stainless steel M4 screws and 8 O-rings, plus a mounting template. The installation sheet specifies the screws in three lengths, 10 mm, 12 mm and 14 mm, to suit different wall thicknesses, and Buna-N O-rings that retain the water resistant feature.
Installation needs a drill with a 4.25 mm (.167 in) bit and a Phillips #2 screwdriver. Attach the two drill templates to the sides of the enclosure with adhesive tape, with the lid screws tight to ensure proper fit, drill four holes per hinge, then remove the lid screws and attach the hinges.
- With hinges installed, all four lid screws are required to maintain a proper seal.
- Drilling fiberglass creates dust that can be a respiratory irritant; wearing a dust mask is highly recommended.
The 1427HK is listed as an accessory on the 1590ZGRP081, 1590ZGRP082, 1590ZGRP083, 1590ZGRP084, 1590ZGRP121 and 1590ZGRP123 enclosure drawings. Shipping weight is 0.18 lbs (0.08 kg), packed in a bag.
Ideal For
- Converting 1590ZGRP enclosures to hinged-lid access
- Enclosures opened frequently for service or inspection
- Retrofitting installed fiberglass enclosures while keeping the lid seal
Overview
| Fits | 1590ZGRP Series enclosures |
| Type | Hinge Kit |
| Description | Hinge kit - grey polyester with brass inserts. Includes screws and o-rings |
| Part Number | 1427HK |
| Short Description | 1590ZGRP HINGE KIT |
| Pack (Per Enclosure Drawings) | Hinge Kit (2 Pack) |
Identifiers
| UPC | 623980133447 |
| UNSPSC | 39121301 |
Rack Mounting
| Templates | Mounting template included (two drill templates attached with adhesive tape) |
| Safety Note | Drilling fiberglass creates dust which can be a respiratory irritant; wearing a dust mask is highly recommended |
| Tools Required | Drill with 4.25mm or .167 in drill bit; Phillips #2 screwdriver |
| Installation Note | With hinges installed, all 4 lid screws are required to maintain a proper seal |
| Installation Holes | 4 holes per hinge, drilled 4.25mm or .167 in diameter |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Beige |
| Screws | 12x stainless steel M4 screws; 3 sizes supplied: 10mm, 12mm and 14mm |
| O-Rings | 8x Buna-N O-rings to retain water resistant feature |
| Material | Fiberglass Polyester (molded from tough polyester) with brass inserts |
Environmental & Protection
| IP Rating | IP66 |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1427HK fit?▾
It is the optional hinge kit for the 1590ZGRP Series and is listed on the drawings for enclosures including 1590ZGRP081, 082, 083, 084, 121 and 123.
What is included in the kit?▾
The hinges, 12 stainless steel M4 screws, 8 Buna-N O-rings and a mounting template. The screws come in 10 mm, 12 mm and 14 mm lengths.
What tools are needed to install it?▾
A drill with a 4.25 mm or .167 in bit and a Phillips #2 screwdriver. Four holes per hinge must be drilled in the enclosure.
Can I leave out the lid screws once the hinges are fitted?▾
No. With hinges installed, all four lid screws are required to maintain a proper seal.
What is the hinge kit made of?▾
The part page describes it as grey polyester with brass inserts; the material attribute is fiberglass polyester and the listed color attribute is beige.
