Hammond 1427BAILKIT3 Half-Width RM Enclosure Tilt Bail Kit, 8.30
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Complete tilt bail kit for half-width RM_U08* rackmount enclosures (8.30 in / 211 mm chassis width)
- Works as a tilt bail or as a carrying handle
- Rotates and locks in 30 degree increments: 12 detent positions
- Black polycarbonate side sections with a black anodized extruded aluminum handle, pre-cut to fit
- Includes all mounting hardware, instructions and a drilling template
- Installs by drilling four mounting holes into the enclosure sides
- Not designed for RMC series rackmount enclosures
- RoHS and REACH compliant
The 1427BAILKIT3 is a complete chassis tilt bail kit designed for half-width RM_U series rackmount enclosures, specifically the RM_U08* chassis with an 8.30 in (211 mm) width. It serves either as a tilt bail that props the enclosure up at an angle on a bench, or as a carrying handle, making it a practical add-on for OEM engineers and integrators building bench-top or portable instruments in RM enclosures.
The kit pairs two side sections molded from tough black polycarbonate with a straight handle section of extruded aluminum. The aluminum is black anodized and pre-cut to fit the RM_U08* enclosure, so no cutting is needed. The bail rotates and locks in 30 degree increments, giving 12 detent positions for setting the viewing or working angle.
Everything needed for installation ships in the bag:

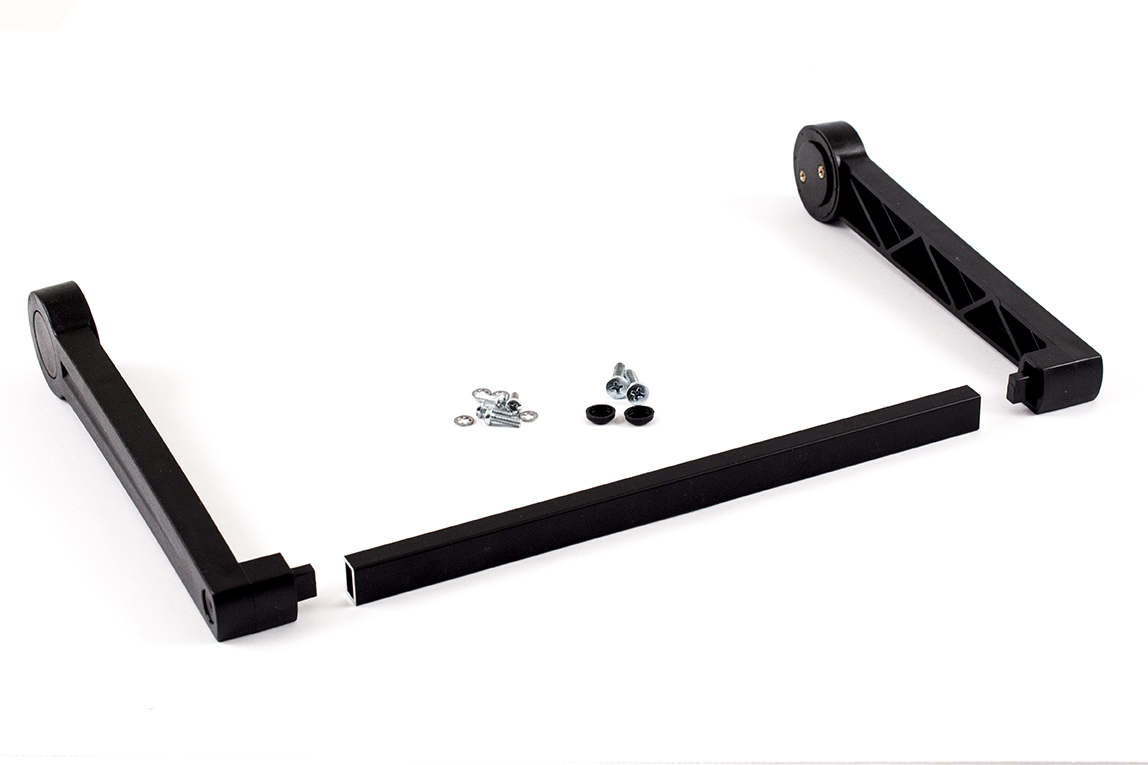

- 2 bails in black polycarbonate
- 1 handle in black anodized aluminum extrusion
- 2 #8 x 3/4" AB type screws and 2 black cap covers
- 4 M3 x 10 screws and 4 #4 locktooth washers
- Instructions and a drilling template
Installation requires drilling four mounting holes into the sides of the enclosure, using the included template to locate them. The enclosure itself is not included. Note that this kit is not designed to be compatible with the RMC series of rackmount enclosures; for full-width RM_U19* enclosures, the series offers a separate complete kit.
The 1427BAILKIT3 is RoHS and REACH compliant and has a shipping weight of 0.77 lbs (0.35 kg).
Ideal For
- Tilting half-width RM_U08* enclosures for bench-top viewing
- Adding a carrying handle to portable RM enclosure builds
- Test and measurement instruments housed in half-width rackmount cases
Overview
| Function | Tilt bail or carrying handle |
| Kit Type | Complete kit for RMU enclosures |
| Description | Tilt bail designed for half-width RM_U series enclosures |
| Product Type | Tilt bail, stand |
Dimensions
| Bail Radius (Drawing) | R18.73 mm [0.738 in] |
| Bail Diameter (Drawing) | 23.62 mm [0.930 in] |
| Drawing Dimension (Assembly) | 213.36 mm [8.400 in] |
| Drawing Dimension (Assembly, View From Outside) | 162.77 mm [6.408 in] |
Mechanical
| Rotation | Rotates and locks in 30° increments |
| Detent Positions | 12 |
Identifiers
| UPC | 623980538877 |
| UNSPSC | 43201602 |
| Part Number | 1427BAILKIT3 |
| Short Description | TILT BAIL W/ EXT FOR 1/2 RM's |
Installation
| Mounting | Requires drilling four mounting holes into the sides of the enclosure |
Compatibility
| Not Compatible With | RMC series rackmount enclosures |
| Use With Chassis Width | 8.30 in (211 mm) |
| Use With Chassis Part No. | RM_U08* |
Included Items
| Hardware | 2 - #8 x 3/4" AB type screws; 2 - black cap covers; 4 - M3 x 10 screws; 4 - #4 locktooth washers |
| Enclosure | Not included |
| Documentation | Instructions and drilling template |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.77 lbs (0.35 kg) |
Construction & Finish
| Color | Black |
| Handle | Black anodized aluminum extrusion, pre-cut to fit |
| Material | Polycarbonate & Aluminum |
| Side Sections (Bails) | Black polycarbonate (2x) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1427BAILKIT3 fit?▾
It is a complete kit for half-width RM_U series enclosures, listed for use with chassis part numbers RM_U08* and a chassis width of 8.30 in (211 mm).
Does it work with RMC series rackmount enclosures?▾
No. The series notes that the tilt bail is not designed to be compatible with the RMC series of rackmount enclosures.
Do I need to modify the enclosure?▾
Yes. Installation requires drilling four mounting holes into the sides of the enclosure. A drilling template and instructions are included.
How many angle positions does the bail have?▾
The bail rotates and locks in 30 degree increments, giving 12 detent positions.
What hardware comes in the kit?▾
Two black polycarbonate bails, a black anodized aluminum handle extrusion, 2 #8 x 3/4" AB type screws, 2 black cap covers, 4 M3 x 10 screws and 4 #4 locktooth washers, plus instructions and a drilling template.
Do I need to cut the aluminum handle?▾
No. In the complete kit the extruded aluminum handle is pre-cut to fit the enclosure.
