Hammond 1421T9BK 0.88 in Black Round Self-Adhesive Feet, 24 Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

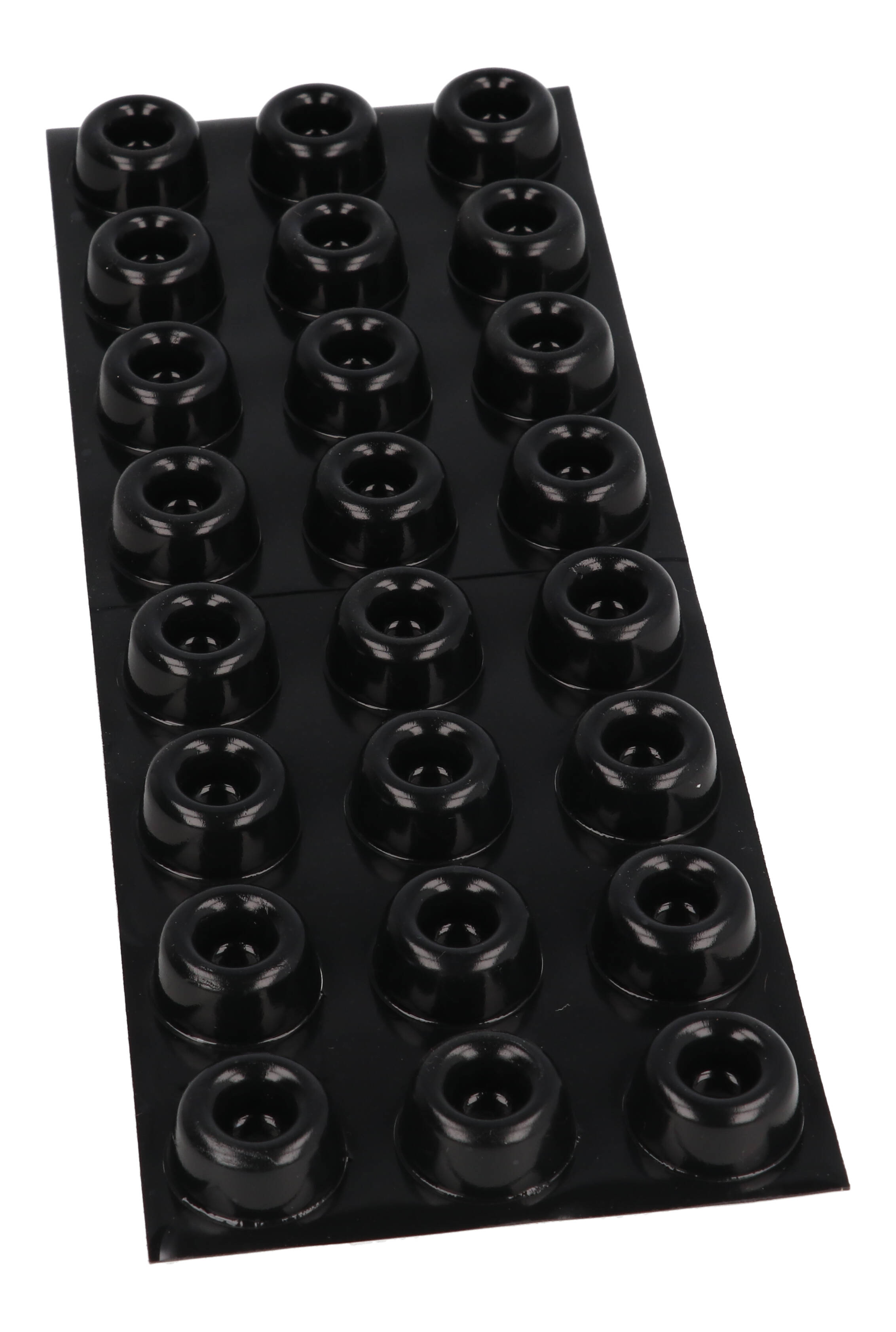

- Package of 24 round feet
- 0.88 in (22 mm) diameter, 0.40 in (10 mm) high
- Widest foot in the 1421-FEET Series
- Black, self-adhesive with Natural Rubber R-30 adhesive
- Series service temperature -34°C to 66°C (-30°F to 150°F)
- RoHS and REACH compliant

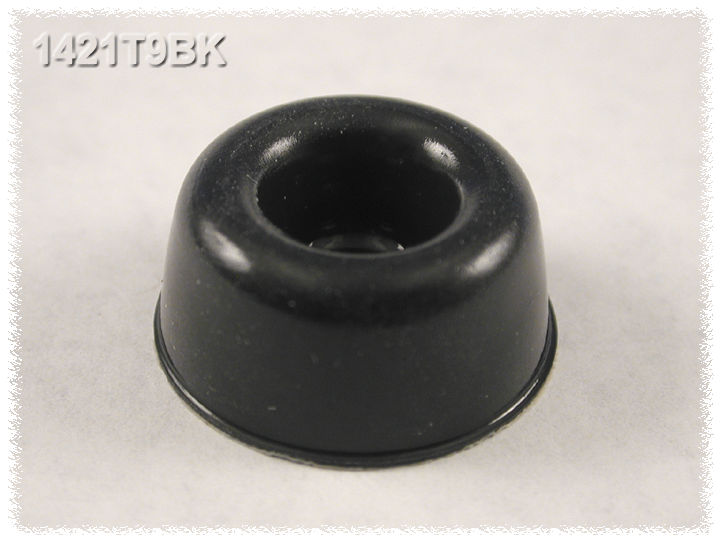

The 1421T9BK is a package of 24 black round feet from the 1421-FEET Series, and at 0.88 in (22 mm) in diameter it has the widest footprint in the series. Each foot is 0.40 in (10 mm) high, giving enclosures, desktop units and tabletop equipment a broad, raised anti-skid base.
The feet are self-adhesive and use Natural Rubber R-30 adhesive. The part page lists the material as rubber; the series data states that the feet are made from polyurethane material, except the screw-on 1421T7, which is SBR rubber. The series service temperature rating is -34°C to 66°C (-30°F to 150°F).
The manufacturer's recommendations for best adhesion:
- Clean surfaces with isopropyl alcohol (rubbing alcohol)
- Apply firm pressure to generate good initial contact
- Adhesion bond will increase over time
The 1421T9BK is RoHS compliant and REACH compliant, and the package ships at 0.22 lbs (0.10 kg). It is the tallest of the self-adhesive feet in the series. If you would rather screw the feet on, the 1421T7 is a 0.75 in round screw-on foot; for a large square self-adhesive foot, see the 0.81 in 1421T4.
Ideal For
- Large anti-skid feet for enclosures and cases
- Tabletop and desktop equipment feet
- No-skid feet for heavier small-case products
Mounting
| Adhesive Type | Natural Rubber R-30 |
| Attachment Method | Self-Adhesive |
| Adhesion Instructions | Clean surfaces with isopropyl alcohol (rubbing alcohol); apply firm pressure to generate good initial contact; adhesion bond will increase over time |
Overview
| Style | Round |
| Series | 1421-FEET Series |
| Product Type | Rubber Feet |
| Qty Per Package | 24 |
| Short Description | PKG OF 24 ROUND RUBBER FEET |
Dimensions
| Height | 0.40 in (10 mm) |
| Width / Diameter | 0.88 in (22 mm) |
Identifiers
| UPC | 623980566351 |
| UNSPSC | 39121301 |
| Part Number | 1421T9BK |
Packaging & Shipping
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material (Part Page) | Rubber |
| Material (Series Data) | Polyurethane |
Environmental & Protection
| Service Temperature | -34°C to 66°C (-30°F to 150°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How large is each 1421T9BK foot?▾
0.88 in (22 mm) in diameter and 0.40 in (10 mm) high.
What adhesive does the 1421T9BK use?▾
Natural Rubber R-30. The feet are self-adhesive.
How many feet are in a package?▾
24.
How should the surface be prepared?▾
Clean it with isopropyl alcohol (rubbing alcohol) and apply firm pressure for good initial contact. The bond increases over time.
What is the temperature rating?▾
The series service temperature rating is -34°C to 66°C (-30°F to 150°F).
