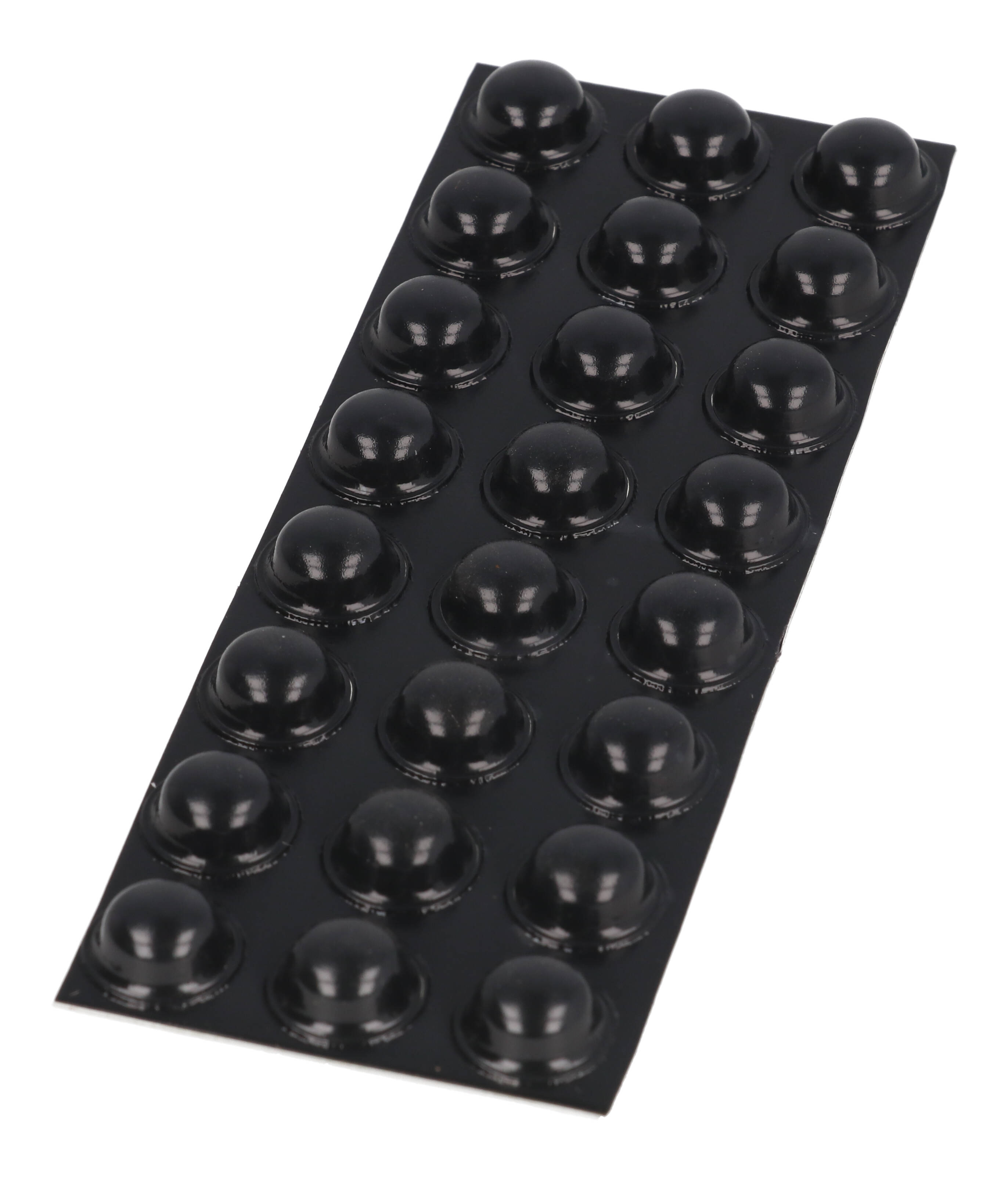

1421T5BK black round hemisphere self-adhesive feet, package of 24

Hammond 1421T5BK 0.44 in Black Hemisphere Self-Adhesive Feet, 24 Pack

Hammond Manufacturing|

MPN: 1421T5BK

|

UPC: 623980566320

In Stock
$5.69

Ships from and sold by A5 IT

Ground Shipping · $16.89Arrives by Monday, Oct 26
Order within 4h 24m to get it by Monday, Oct 26
New, with full manufacturer warranty
Business Pricing Available

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

  • Package of 24 round hemisphere feet
  • 0.44 in (11 mm) diameter, 0.20 in (5 mm) high
  • Black color
  • Self-adhesive with Natural Rubber R-30 adhesive
  • Series service temperature -34°C to 66°C (-30°F to 150°F)
  • RoHS and REACH compliant

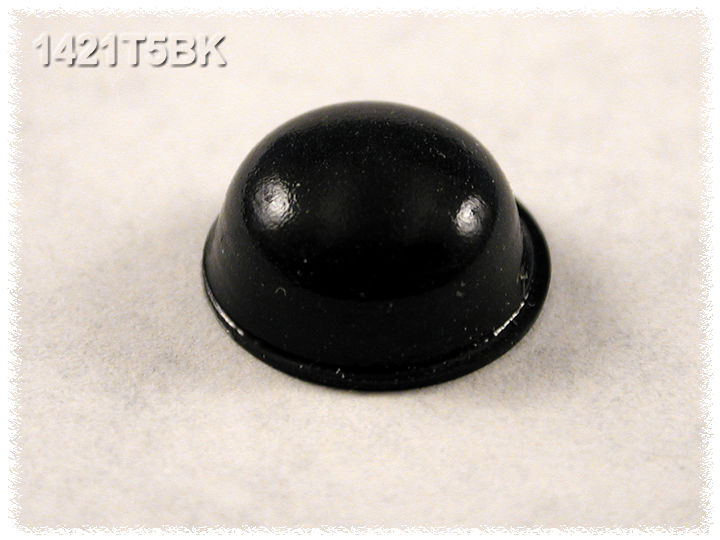

The 1421T5BK is a package of 24 black round hemisphere feet in the 1421-FEET Series. Each dome-shaped foot is 0.44 in (11 mm) in diameter and 0.20 in (5 mm) high, and works as a compact bumper foot for small cases, desktop devices and tabletop equipment.

The feet are self-adhesive, using Natural Rubber R-30 adhesive. The part page lists rubber as the material; the series data states the feet are made from polyurethane material, except the 1421T7. The series service temperature rating is -34°C to 66°C (-30°F to 150°F).

For the best bond, follow the manufacturer's guidance:

  • Clean surfaces with isopropyl alcohol (rubbing alcohol)
  • Apply firm pressure to generate good initial contact
  • Adhesion bond will increase over time

The 1421T5BK is RoHS compliant and REACH compliant, with a package shipping weight of 0.03 lbs (0.01 kg). The same hemisphere size is also available in clear as the 1421T5CL, which uses Acrylic A-20 adhesive instead of Natural Rubber R-30. Choose the black 1421T5BK when a dark, rounded bumper foot suits the product. Of the black self-adhesive feet in the series, it has the smallest diameter, next to the 0.47 in square 1421T8BK and the 0.50 in 1421T2 and 1421T3.

Ideal For

  • Bumper feet for small electronic cases
  • Desktop and tabletop device feet
  • Anti-skid, no-skid feet for instruments

Mounting

Adhesive TypeNatural Rubber R-30
Attachment MethodSelf-Adhesive
Adhesion InstructionsClean surfaces with isopropyl alcohol (rubbing alcohol); apply firm pressure to generate good initial contact; adhesion bond will increase over time

Overview

StyleRound Hemisphere
Series1421-FEET Series
Product TypeRubber Feet
Qty Per Package24
Short DescriptionPKG OF 24 ROUND RUBBER FEET

Dimensions

Height0.20 in (5 mm)
Width / Diameter0.44 in (11 mm)

Identifiers

UPC623980566320
UNSPSC39121301
Part Number1421T5BK

Packaging & Shipping

Shipping Weight0.03 lbs (0.01 kg)

Construction & Finish

ColorBlack
Material (Part Page)Rubber
Material (Series Data)Polyurethane

Environmental & Protection

Service Temperature-34°C to 66°C (-30°F to 150°F)

Compliance & Certifications

RoHS CompliantYes
REACH CompliantYes

Purchasing this for your business?

Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.

Wholesale pricing below retail
Net-30 terms for qualified businesses
Volume discount tiers
Dedicated account representative
Saved payment methods & PO support
Priority order processing
Create Free Business Account

Frequently Asked Questions

What shape is the 1421T5BK foot?▾

Round hemisphere, 0.44 in (11 mm) in diameter and 0.20 in (5 mm) high.

How many feet are in the package?▾

24 per package.

Is there a clear version of the 1421T5BK?▾

Yes, the 1421T5CL is the same size in clear, with Acrylic A-20 adhesive.

What adhesive does the 1421T5BK use?▾

Natural Rubber R-30.

What is the service temperature rating?▾

-34°C to 66°C (-30°F to 150°F) for the series.
