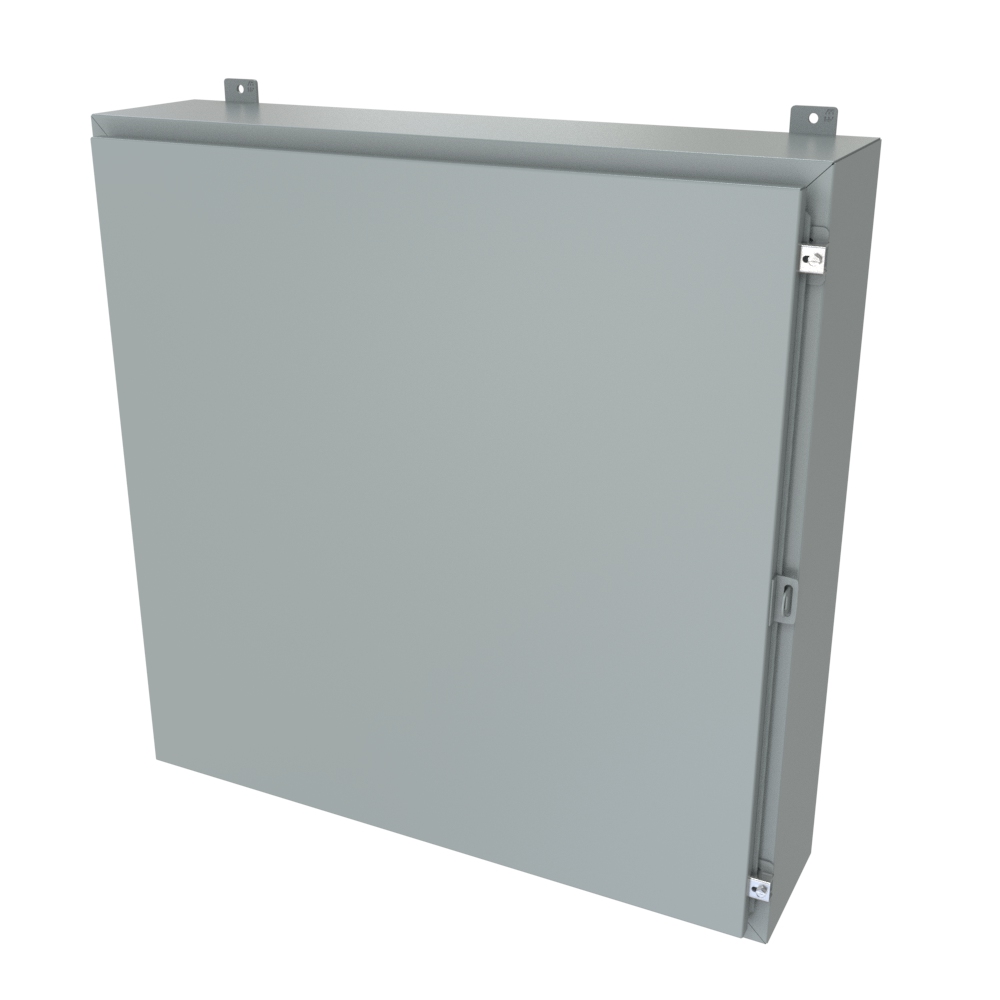

Hammond 1418LL8LP 36x36x8 in Type 4/12 Steel Wallmount Enclosure

The Hammond 1418LL8LP is a Type 4/12 mild steel wallmount enclosure from the 1418LP Series, supplied less inner panel and measuring 36 in x 36 in x 8 in (914 mm x 914 mm x 203 mm). It is designed for instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes and terminal wiring enclosures, and suits panel builders, electricians and OEM engineers who need a sealed, hose-down rated housing.

The body and door are formed 14 gauge steel with smooth, continuously welded seams and no knockouts, cutouts or holes. A formed lip on the door and enclosure excludes flowing liquids and contaminants, and a seamless poured-in-place gasket seals the door. The door swings on a stainless steel continuous hinge that can be removed by pulling the hinge pin, and is secured with easily operated stainless steel clamps with provision for padlocking. The cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

Its square 36 x 36 in front face gives a door opening of 33.25 x 33.25 in and 33.05 in of height of clear space available on the door. A 8 in (203 mm) usable depth leaves room for DIN-rail components, terminal blocks and control devices on the optional inner panel. Collar studs are provided for the optional inner panel, 18P3333 (white) or 18G3333 (galvanized), which measures 33.00 in (838 mm) high x 33.00 in (838 mm) wide. A bonding stud on the door, a grounding stud in the enclosure and a literature pocket inside the door are included features.

Welded brackets provide for wall mounting, with 30.00 x 37.25 in mounting hole spacing and 0.44 in diameter holes per the part drawing. The enclosure carries UL 508A Type 3R, 12, 13 and 4 and cUL Type 3R, 12, 13 and 4 ratings under UL file E65324, complies with NEMA Type 3R, 4, 12 and 13 and IEC 60529 IP66, and is RoHS and REACH compliant. Shipping weight is 106 lbs (48.08 kg).
