Hammond 1415J 15x7x9 Inch 18 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 15 x 7 x 9 in (381 x 178 x 229 mm) dual access utility case
- 18 gauge, 0.048 in (1.22 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Twelve 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 8.43 lbs (3.82 kg)
- RoHS and REACH compliant; STEP/IGES models available

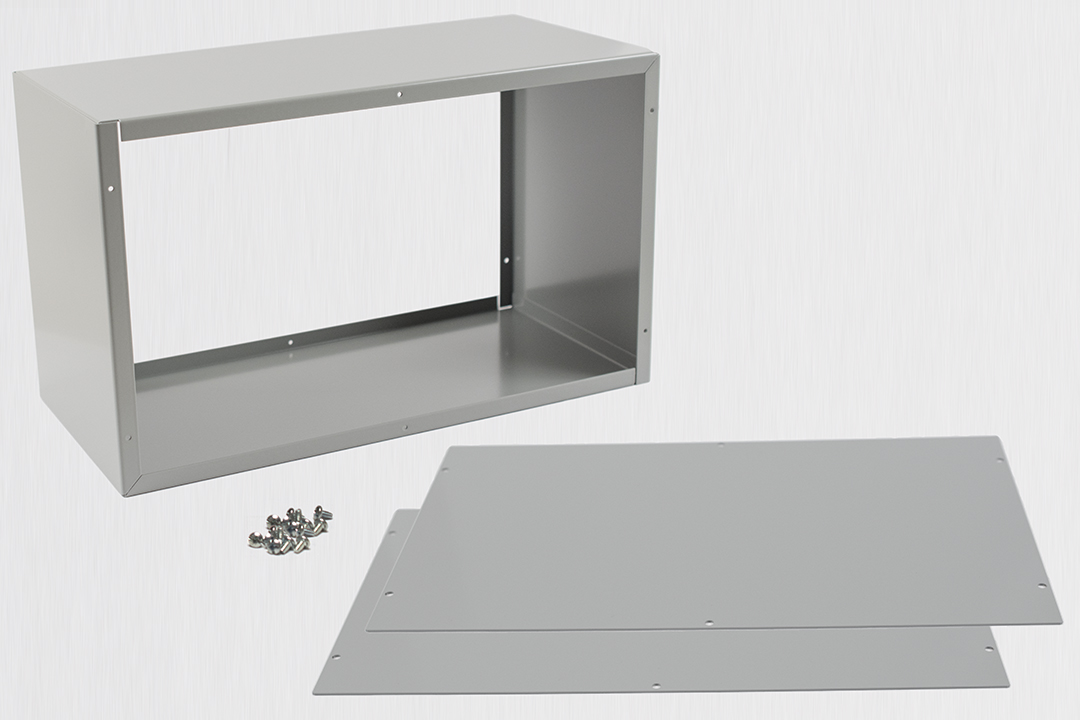

The 1415J is a 15 in x 7 in x 9 in (381 mm x 178 mm x 229 mm) dual access steel utility case in ASA 61 grey. As the longest size in the 1415 series, its 18 gauge steel body suits long rows of equipment, extended boards or control panels that need length more than width.
Construction is 18 gauge, 0.048 in thick steel - the series specification puts sizes F to J in this gauge, and the 1415J drawing shows a 1.22 mm [0.048 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 15.00 in (381 mm), B 7.00 in (178 mm) and C 9.00 in (229 mm). Self-tapping screws are included - the drawing specifies twelve 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415J ships in a box at 8.43 lbs (3.82 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Long equipment and control panel housings
- Extended board enclosures
- Large utility and instrument cases
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415J |
| Manufacturer Description | STEEL UTILITY CASE 15X7X9 |
Dimensions
| A | 15.00 in (381 mm) |
| B | 7.00 in (178 mm) |
| C | 9.00 in (229 mm) |
| Size (L X W X H) | 15 in x 7 in x 9 in (381 mm x 178 mm x 229 mm) |
Identifiers
| UPC | 623980488950 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 8.43 lbs (3.82 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 18 gauge |
| Included Screws | Twelve 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 1.22 mm [0.048 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415J?▾
The 1415J is 15 in x 7 in x 9 in (381 mm x 178 mm x 229 mm), with dimensions A 15.00 in, B 7.00 in and C 9.00 in.
What is the 1415J made of?▾
18 gauge steel, 0.048 in (1.22 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies twelve 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
Which 1415 size is the longest?▾
The 1415J, with an A dimension of 15.00 in (381 mm).
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
