Hammond 1415I 12x8x11 Inch 18 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 x 8 x 11 in (305 x 203 x 279 mm) dual access utility case
- 18 gauge, 0.048 in (1.22 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Twelve 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 8.72 lbs (3.96 kg)
- RoHS and REACH compliant; STEP/IGES models available

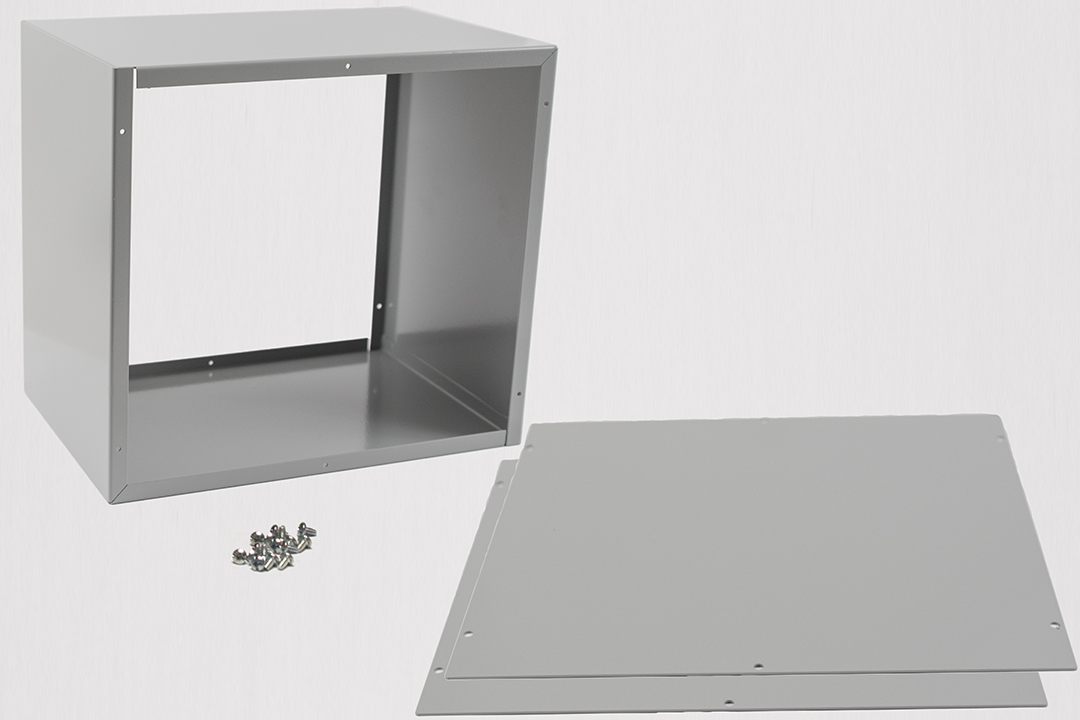

The 1415I is a 12 in x 8 in x 11 in (305 mm x 203 mm x 279 mm) dual access steel utility case in ASA 61 grey. It is the tallest size in the 1415 series and, at 8.72 lbs (3.96 kg) shipping weight, the heaviest - an 18 gauge housing for bulky components or multi-board equipment.
Construction is 18 gauge, 0.048 in thick steel - the series specification puts sizes F to J in this gauge, and the 1415I drawing shows a 1.22 mm [0.048 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 12.00 in (305 mm), B 8.00 in (203 mm) and C 11.00 in (279 mm). Self-tapping screws are included - the drawing specifies twelve 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415I ships in a box at 8.72 lbs (3.96 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Bulky component housings
- Multi-board equipment enclosures
- Large instrument and utility cases
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415I |
| Manufacturer Description | STEEL UTILITY CASE 12X8X11 |
Dimensions
| A | 12.00 in (305 mm) |
| B | 8.00 in (203 mm) |
| C | 11.00 in (279 mm) |
| Size (L X W X H) | 12 in x 8 in x 11 in (305 mm x 203 mm x 279 mm) |
Identifiers
| UPC | 623980488905 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 8.72 lbs (3.96 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 18 gauge |
| Included Screws | Twelve 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 1.22 mm [0.048 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415I?▾
The 1415I is 12 in x 8 in x 11 in (305 mm x 203 mm x 279 mm), with dimensions A 12.00 in, B 8.00 in and C 11.00 in.
What is the 1415I made of?▾
18 gauge steel, 0.048 in (1.22 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies twelve 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
Which 1415 size is the tallest?▾
The 1415I, with a C dimension of 11.00 in (279 mm).
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
