Hammond 1415F 10x7x8 Inch 18 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10 x 7 x 8 in (254 x 178 x 203 mm) dual access utility case
- 18 gauge, 0.048 in (1.22 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Twelve 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 5.89 lbs (2.67 kg)
- RoHS and REACH compliant; STEP/IGES models available

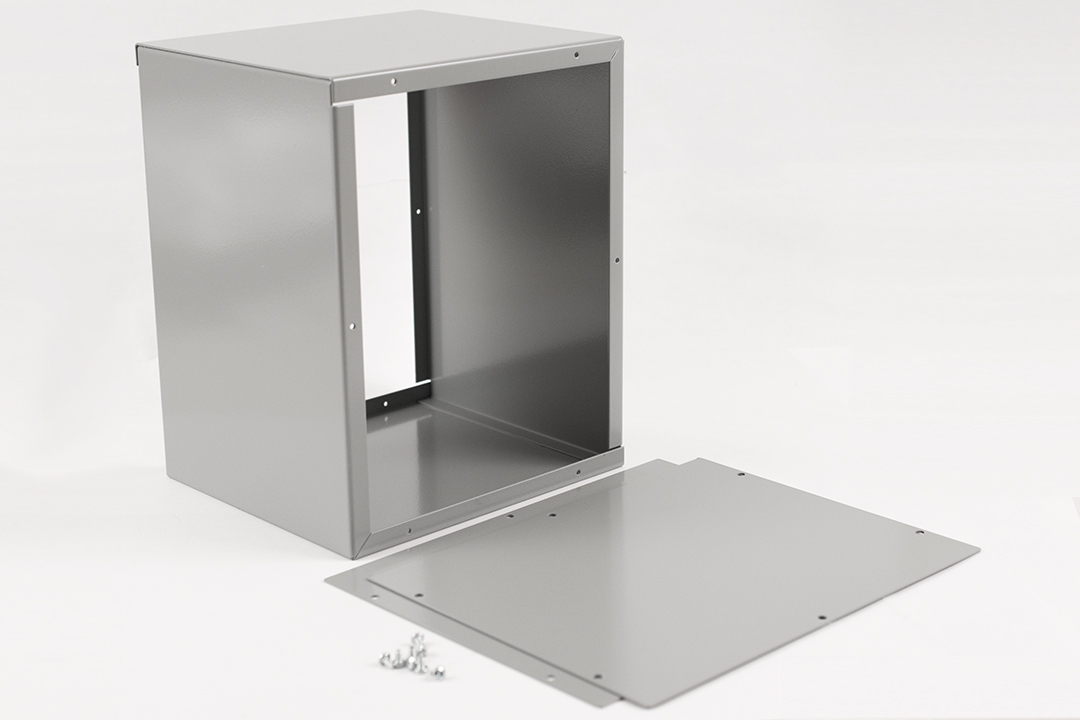

The 1415F is a 10 in x 7 in x 8 in (254 mm x 178 mm x 203 mm) dual access steel utility case in ASA 61 grey. It is the first of the heavier 18 gauge sizes in the 1415 series, offering a substantial steel housing for control electronics or equipment that benefits from thicker walls.
Construction is 18 gauge, 0.048 in thick steel - the series specification puts sizes F to J in this gauge, and the 1415F drawing shows a 1.22 mm [0.048 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 10.00 in (254 mm), B 7.00 in (178 mm) and C 8.00 in (203 mm). Self-tapping screws are included - the drawing specifies twelve 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415F ships in a box at 5.89 lbs (2.67 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Control electronics housings
- Heavier-duty steel utility enclosures
- Instrument and test equipment cases
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415F |
| Manufacturer Description | STEEL UTILITY CASE 10X7X8 |
Dimensions
| A | 10.00 in (254 mm) |
| B | 7.00 in (178 mm) |
| C | 8.00 in (203 mm) |
| Size (L X W X H) | 10 in x 7 in x 8 in (254 mm x 178 mm x 203 mm) |
Identifiers
| UPC | 623980488707 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 5.89 lbs (2.67 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 18 gauge |
| Included Screws | Twelve 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 1.22 mm [0.048 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415F?▾
The 1415F is 10 in x 7 in x 8 in (254 mm x 178 mm x 203 mm), with dimensions A 10.00 in, B 7.00 in and C 8.00 in.
What is the 1415F made of?▾
18 gauge steel, 0.048 in (1.22 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies twelve 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
What gauge steel is the 1415F?▾
Sizes F to J are 18 gauge 0.048 in thick steel; the 1415F drawing shows a 1.22 mm [0.048 in] wall.
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
