Hammond 1415D 6x6x6 Inch 20 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6 x 6 x 6 in (152 x 152 x 152 mm) dual access utility case
- 20 gauge, 0.036 in (0.91 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Eight 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 2.65 lbs (1.20 kg)
- RoHS and REACH compliant; STEP/IGES models available

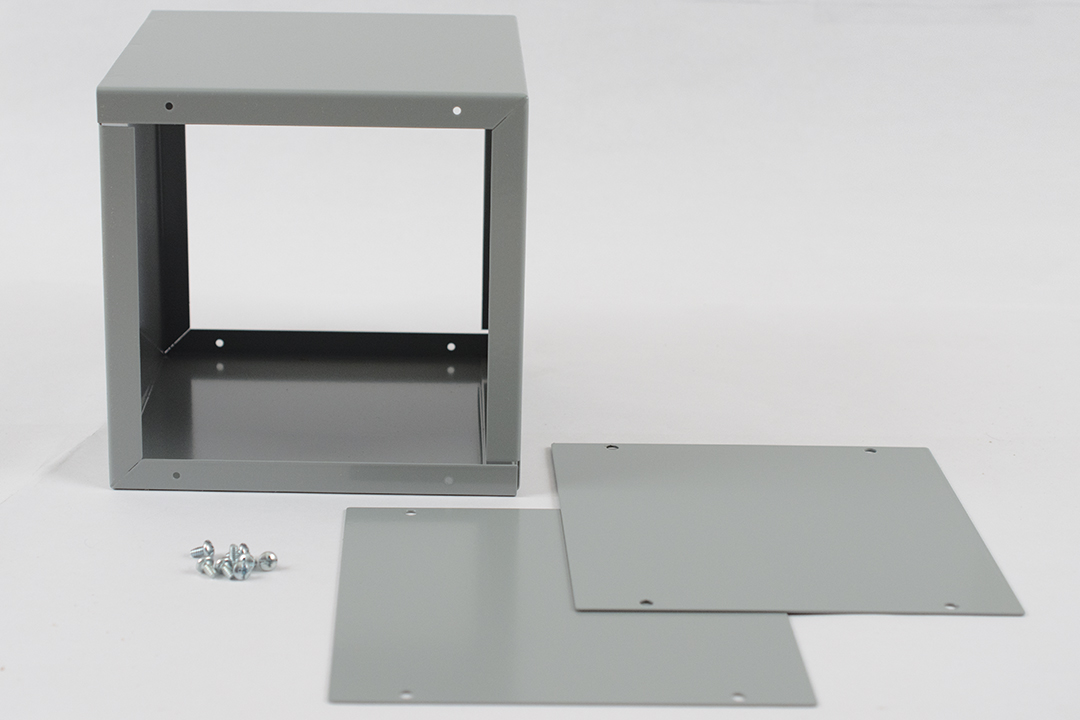

The 1415D is a cube-shaped 6 in x 6 in x 6 in (152 mm x 152 mm x 152 mm) dual access steel utility case in ASA 61 grey. Equal dimensions on every side give a balanced, compact volume for stacked boards, taller components or wiring that needs height as well as footprint.
Construction is 20 gauge, 0.036 in thick steel - the series specification puts sizes A to E in this gauge, and the 1415D drawing shows a 0.91 mm [0.036 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 6.00 in (152 mm), B 6.00 in (152 mm) and C 6.00 in (152 mm). Self-tapping screws are included - the drawing specifies eight 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415D ships in a box at 2.65 lbs (1.20 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Cube-shaped electronics housings
- Stacked board electronics enclosures
- Wiring and utility boxes
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415D |
| Manufacturer Description | STEEL UTILITY CASE 6X6X6 |
Dimensions
| A | 6.00 in (152 mm) |
| B | 6.00 in (152 mm) |
| C | 6.00 in (152 mm) |
| Size (L X W X H) | 6 in x 6 in x 6 in (152 mm x 152 mm x 152 mm) |
Identifiers
| UPC | 623980488509 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 2.65 lbs (1.20 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 20 gauge |
| Included Screws | Eight 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 0.91 mm [0.036 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415D?▾
The 1415D is 6 in x 6 in x 6 in (152 mm x 152 mm x 152 mm), with dimensions A 6.00 in, B 6.00 in and C 6.00 in.
What is the 1415D made of?▾
20 gauge steel, 0.036 in (0.91 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies eight 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
Is the 1415D a cube?▾
Yes. All three listed dimensions are 6.00 in (152 mm): 6 x 6 x 6 in.
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
