Hammond 1415B 4x3x5 Inch 20 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4 x 3 x 5 in (102 x 76 x 127 mm) dual access utility case
- 20 gauge, 0.036 in (0.91 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Eight 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 1.19 lbs (0.54 kg)
- RoHS and REACH compliant; STEP/IGES models available

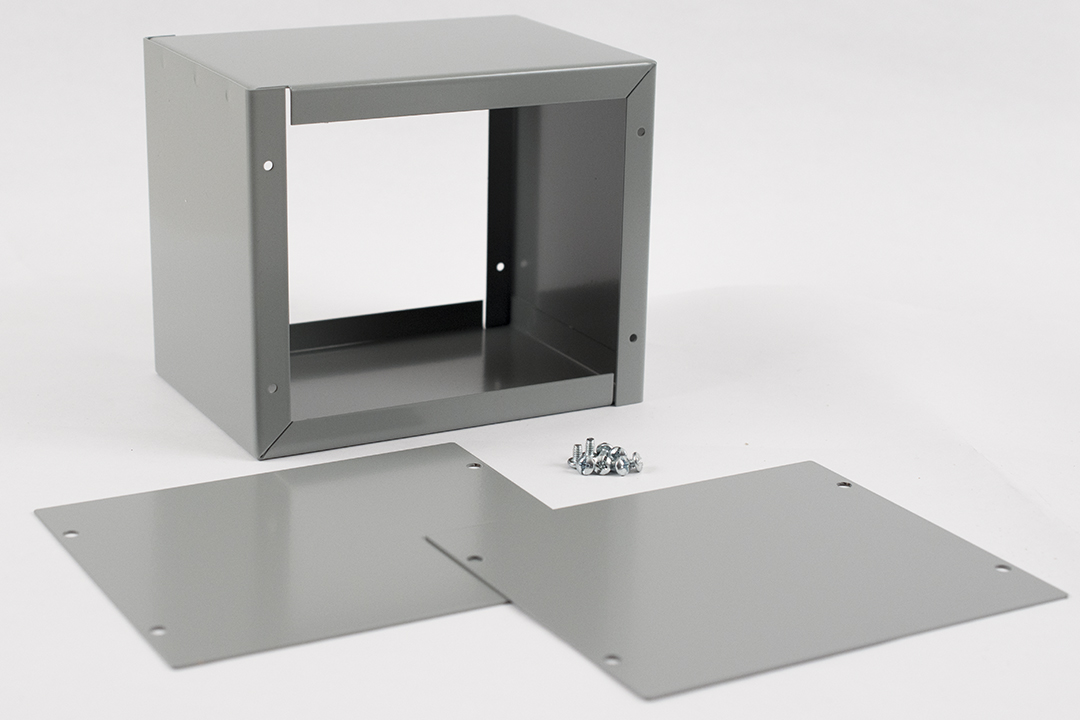

The 1415B is a 4 in x 3 in x 5 in (102 mm x 76 mm x 127 mm) dual access steel utility case in ASA 61 grey. It keeps the same 4 in dimension as the 1415A but adds width and height, giving extra room for a small board with connectors or a few panel-mounted controls.
Construction is 20 gauge, 0.036 in thick steel - the series specification puts sizes A to E in this gauge, and the 1415B drawing shows a 0.91 mm [0.036 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 4.00 in (102 mm), B 3.00 in (76 mm) and C 5.00 in (127 mm). Self-tapping screws are included - the drawing specifies eight 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415B ships in a box at 1.19 lbs (0.54 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Small control and interface housings
- Panel-mounted switch and indicator boxes
- Instrument project enclosures
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415B |
| Manufacturer Description | STEEL UTILITY CASE 4X3X5 |
Dimensions
| A | 4.00 in (102 mm) |
| B | 3.00 in (76 mm) |
| C | 5.00 in (127 mm) |
| Size (L X W X H) | 4 in x 3 in x 5 in (102 mm x 76 mm x 127 mm) |
Identifiers
| UPC | 623980488301 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 1.19 lbs (0.54 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 20 gauge |
| Included Screws | Eight 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 0.91 mm [0.036 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415B?▾
The 1415B is 4 in x 3 in x 5 in (102 mm x 76 mm x 127 mm), with dimensions A 4.00 in, B 3.00 in and C 5.00 in.
What is the 1415B made of?▾
20 gauge steel, 0.036 in (0.91 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies eight 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
How does the 1415B compare with the 1415A?▾
Both share a 4.00 in A dimension; the 1415B is 3.00 in in B and 5.00 in in C, versus 2.00 in and 4.00 in for the 1415A.
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
