Hammond 1415A 4x2x4 Inch 20 Gauge Dual Access Steel Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4 x 2 x 4 in (102 x 51 x 102 mm) dual access utility case
- 20 gauge, 0.036 in (0.91 mm) thick steel body
- ASA 61 grey baked powder paint finish
- Eight 6-32 nickel plated self-tapping screws included
- Extra screws available as 1421J6 (pack of 6, 6-32 x 1/4 in)
- Ships boxed; shipping weight 0.77 lbs (0.35 kg)
- RoHS and REACH compliant; STEP/IGES models available

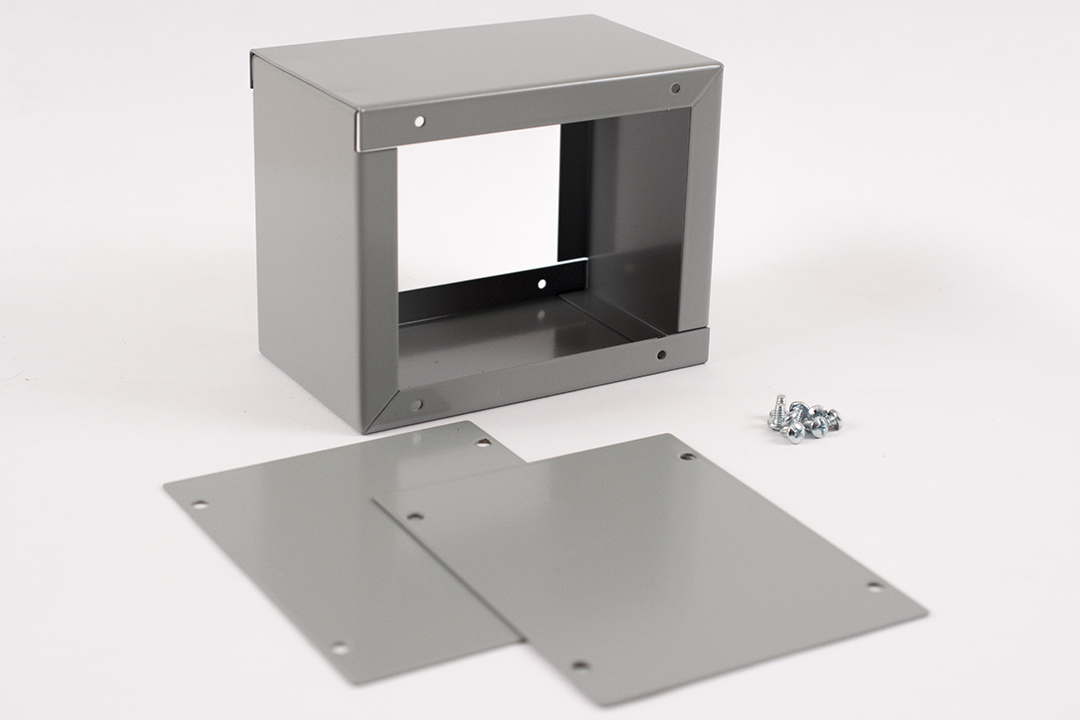

The 1415A is the smallest case in the 1415 dual access steel utility series: a 4 in x 2 in x 4 in (102 mm x 51 mm x 102 mm) box in ASA 61 grey. Its narrow 2 in dimension makes it a compact housing for a single small board, a pair of switches or a sensor interface where a painted steel shell is wanted.
Construction is 20 gauge, 0.036 in thick steel - the series specification puts sizes A to E in this gauge, and the 1415A drawing shows a 0.91 mm [0.036 in] wall. The body is finished in ASA 61 grey baked powder paint. The manufacturer lists this model as a dual access utility case.
Listed dimensions are A 4.00 in (102 mm), B 2.00 in (51 mm) and C 4.00 in (102 mm). Self-tapping screws are included - the drawing specifies eight 6-32 nickel plated screws - and extra 6-32 x 1/4 in sheet metal screws are available as 1421J6 in packs of six.
The 1415A ships in a box at 0.77 lbs (0.35 kg). It is RoHS and REACH compliant, the factory can mill, drill or print the enclosure on quotation, and STEP or IGES solid models are available for mechanical layout.
Ideal For
- Compact switch and sensor housings
- Single small circuit board enclosures
- Instrument and utility project boxes
Overview
| Type | Dual Access Utility Case |
| Series | 1415 Series Steel Utility Cases |
| Part Number | 1415A |
| Manufacturer Description | STEEL UTILTIY CASE 4X2X4 |
Dimensions
| A | 4.00 in (102 mm) |
| B | 2.00 in (51 mm) |
| C | 4.00 in (102 mm) |
| Size (L X W X H) | 4 in x 2 in x 4 in (102 mm x 51 mm x 102 mm) |
Identifiers
| UPC | 623980488202 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 0.77 lbs (0.35 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint |
| Material | Steel |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 20 gauge |
| Included Screws | Eight 6-32 nickel plated screws (self-tapping) |
| Steel Thickness | 0.91 mm [0.036 in] |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4 sheet metal Phillips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1415A?▾
The 1415A is 4 in x 2 in x 4 in (102 mm x 51 mm x 102 mm), with dimensions A 4.00 in, B 2.00 in and C 4.00 in.
What is the 1415A made of?▾
20 gauge steel, 0.036 in (0.91 mm) thick, finished in ASA 61 grey baked powder paint.
Are screws included?▾
Yes. Self-tapping screws are included; the drawing specifies eight 6-32 nickel plated screws. Extra screws are part 1421J6 (six 6-32 x 1/4 in sheet metal screws).
Which is the smallest 1415 case?▾
The 1415A, at 4 x 2 x 4 in (102 x 51 x 102 mm), is the smallest size listed in the 1415 series table.
Can Hammond modify the case before shipping?▾
The manufacturer offers factory milling, drilling and printing on quotation, and STEP or IGES solid models are available.
