Hammond 1411TTU 10x6x2" Unpainted Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal size 10 x 6 x 2 in (254 x 152 x 51 mm)
- Inner box 9.91 x 5.80 x 1.93 in (251.61 x 147.19 x 48.97 mm)
- Unpainted natural aluminum; protective film doubles as a removable drilling template
- Bottom and cover made from 0.04" (1.02 mm) aluminum panels
- Four self-tapping cover screws included; replacements are 1421J6 (pkg of 6, 6-32 x 1/4")
- Factory modification (milling, drilling, printing) available; STEP or IGES solid models
- REACH and RoHS compliant; shipping weight 0.75 lbs (0.34 kg)

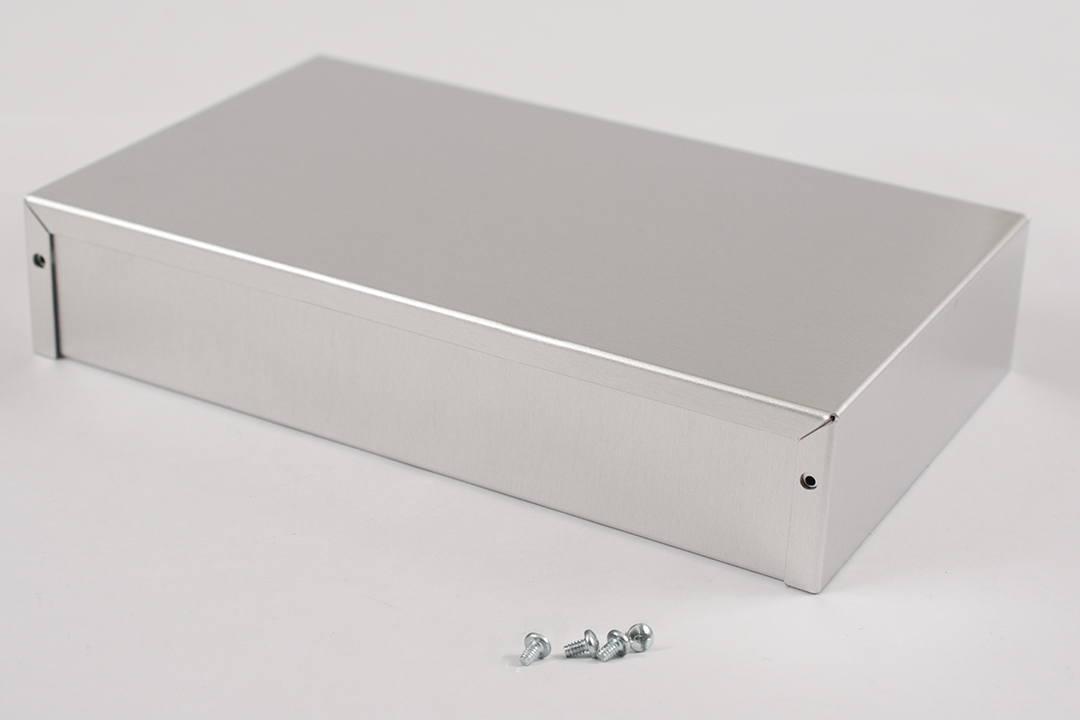

The 1411TTU is a 10 x 6 x 2 in (254 x 152 x 51 mm) utility case from the 1411 series, supplied in unpainted, natural aluminum. It is aimed at electronics hobbyists, OEM engineers and technicians who want a plain metal housing they can drill, mill, paint or label to suit their own project.
The case is a two-piece assembly made up of a bottom and a cover, both formed from 0.04" (1.02 mm) aluminum panels, and it ships with four self-tapping cover screws. Because the aluminum is left unfinished, it is protected through manufacturing and shipping by a plastic film cover that keeps the surface clean and also doubles as a removable drilling template for marking out holes.
The 10 x 6 x 2 inch size offers a large, flat footprint with a low 2 inch height, a good match for wide circuit boards that need plenty of surface area. The drawing gives overall assembly dimensions of 253.64 x 152.04 x 51.00 mm (9.99 x 5.99 x 2.01 in) and a usable inner box of 251.61 x 147.19 x 48.97 mm (9.91 x 5.80 x 1.93 in) length by width by height. Shipping weight is 0.75 lbs (0.34 kg).
1411TTU is REACH and RoHS compliant and ships shrink wrapped. The same size is also offered as 1411TT (ASA 61 grey powder coat); 1412TT (20 gauge steel, grey). The enclosure can be factory modified with milling, drilling or printing on a quote basis, and solid models are available in STEP or IGES format.
Ideal For
- Instrument housings
- Utility enclosures for small electronic assemblies
- Custom-machined project cases (drilling, milling, printing)
- Housings to drill, finish or paint in-house, using the film as a drilling template
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures (1411 aluminum version) |
| Description | enclosure - unpainted aluminum; utility |
| Part Number | 1411TTU |
| Short Description | UTILITY CASE 10.0 X 6.0 X 2.0 |
Dimensions
| Width | 6.00 in (152 mm) |
| Height | 2.00 in (51 mm) |
| Length | 10.00 in (254 mm) |
| Wall Thickness | 1.02 mm [0.04 in] |
| Inner Box Width | 147.19 mm [5.80 in] |
| Inner Box Height | 48.97 mm [1.93 in] |
| Inner Box Length | 251.61 mm [9.91 in] |
| Overall Assembly Width | 152.04 mm [5.99 in] |
| Overall Assembly Height | 51.00 mm [2.01 in] |
| Overall Assembly Length | 253.64 mm [9.99 in] |
| Nominal Size (L X W X H) | 10 x 6 x 2 in (254 x 152 x 51 mm) |
Identifiers
| UPC | 623980000121 |
| UNSPSC | 39121301 |
Related Parts
| Alternate Finish (Same Size) | 1411TT (ASA 61 grey powder coat) |
| Steel Version (20 Gauge, Grey) | 1412TT |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.75 lbs (0.34 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unfinished (unpainted) aluminum |
| Material | Aluminum |
| CAD Models | Solid models available in STEP or IGES |
| Panel Material | Bottom and cover made from 0.04" aluminum panels |
| Mounting Flanges | None (non-flanged version) |
| Assembly Contents | Bottom, cover and 4 cover screws |
| Replacement Screws | 1421J6 - plated cover screws, package of 6, 6-32 x 1/4" Philips head self-tapping |
| Surface Protection | Plastic film cover protects the finish through manufacturing and shipping; doubles as a removable drilling template |
| Factory Modification | Milling, drilling, printing etc. available on quotation |
| Cover Screws Included | 4 self-tapping screws |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411TTU?▾
The nominal size is 10 x 6 x 2 in (254 x 152 x 51 mm). The drawing shows overall assembly dimensions of 253.64 x 152.04 x 51.00 mm (9.99 x 5.99 x 2.01 in) and an inner box of 251.61 x 147.19 x 48.97 mm (9.91 x 5.80 x 1.93 in).
What is it made of and how thick is the metal?▾
The bottom and cover are made from 0.04" aluminum panels; the drawing lists a wall thickness of 1.02 mm [.04 in].
Are screws included?▾
Yes. The purchased assembly includes the bottom, the cover and four self-tapping cover screws. Replacement screws are part number 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.
Why does the case arrive with a plastic film on it?▾
The unpainted aluminum version is protected through manufacturing and shipping with a plastic film cover to preserve the finish. The film also doubles as a removable drilling template.
Is a painted version of this size available?▾
Yes. 1411TT is the same size in smooth ASA 61 grey powder coat. A 20 gauge steel version in grey is 1412TT.
Can the enclosure be customized?▾
Yes. The drawing notes that the enclosure can be factory modified with milling, drilling, printing and similar work on a quote basis, and solid models are available in STEP or IGES.
