Hammond 1411T 10x2.2x1.6" ASA 61 Grey Aluminum Utility Case

The 1411T is a 10 x 2.2 x 1.6 in (254 x 56 x 41 mm) utility case from the 1411 series, finished in smooth ASA 61 grey powder coat (Hammond color GY2). It gives electronics builders, OEM engineers and service technicians a ready-finished aluminum housing for instruments, controls and small circuits.

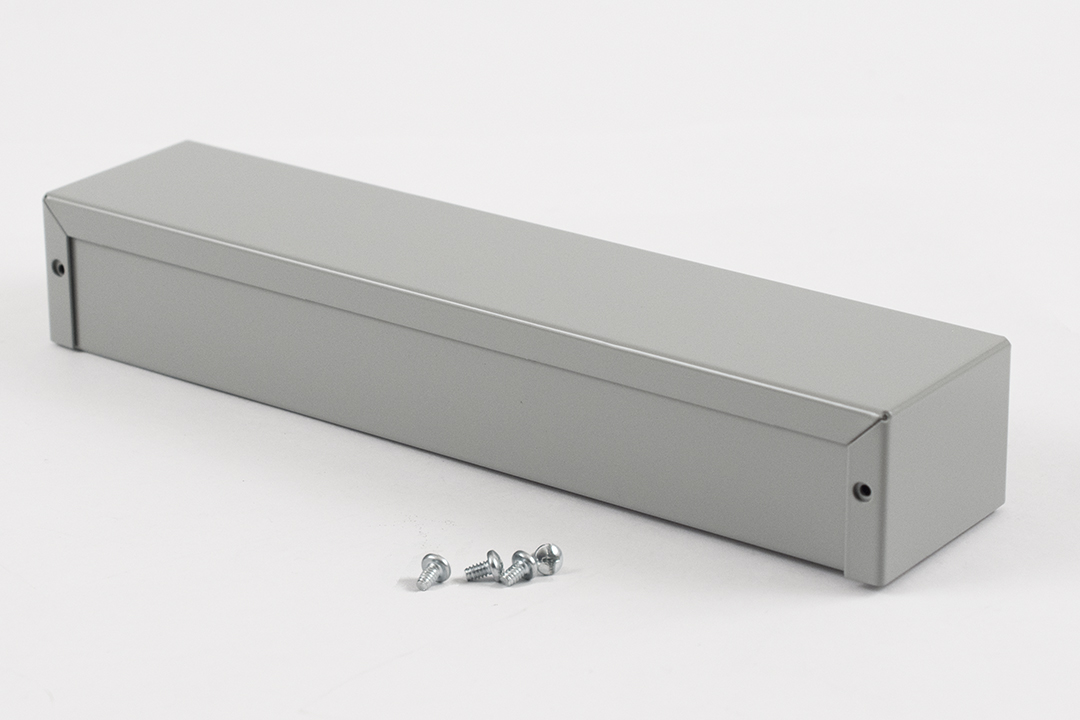

Construction is a simple two-piece assembly: a bottom and a cover, each made from 0.04" (1.02 mm) aluminum panels. Four self-tapping screws are included to fasten the cover, and replacement screws are available as 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.

With a 10 inch length but only 2.2 inches of width and 1.6 inches of height, this is the long, slender stick-style case of the 1411 family, suited to strip-shaped boards and in-line assemblies. The drawing gives overall assembly dimensions of 253.64 x 56.79 x 41.48 mm (9.99 x 2.24 x 1.63 in) and a usable inner box of 251.61 x 51.94 x 39.45 mm (9.91 x 2.05 x 1.55 in) length by width by height. Shipping weight is 0.36 lbs (0.16 kg).

1411T is REACH and RoHS compliant and ships shrink wrapped. The same size is also offered as 1411TU (unpainted aluminum). The enclosure can be factory modified with milling, drilling or printing on a quote basis, and solid models are available in STEP or IGES format.
