Hammond 1411SS 8x4x2" ASA 61 Grey Aluminum Utility Case

The 1411SS is a 8 x 4 x 2 in (203 x 102 x 51 mm) utility case from the 1411 series, finished in smooth ASA 61 grey powder coat (Hammond color GY2). It gives electronics builders, OEM engineers and service technicians a ready-finished aluminum housing for instruments, controls and small circuits.

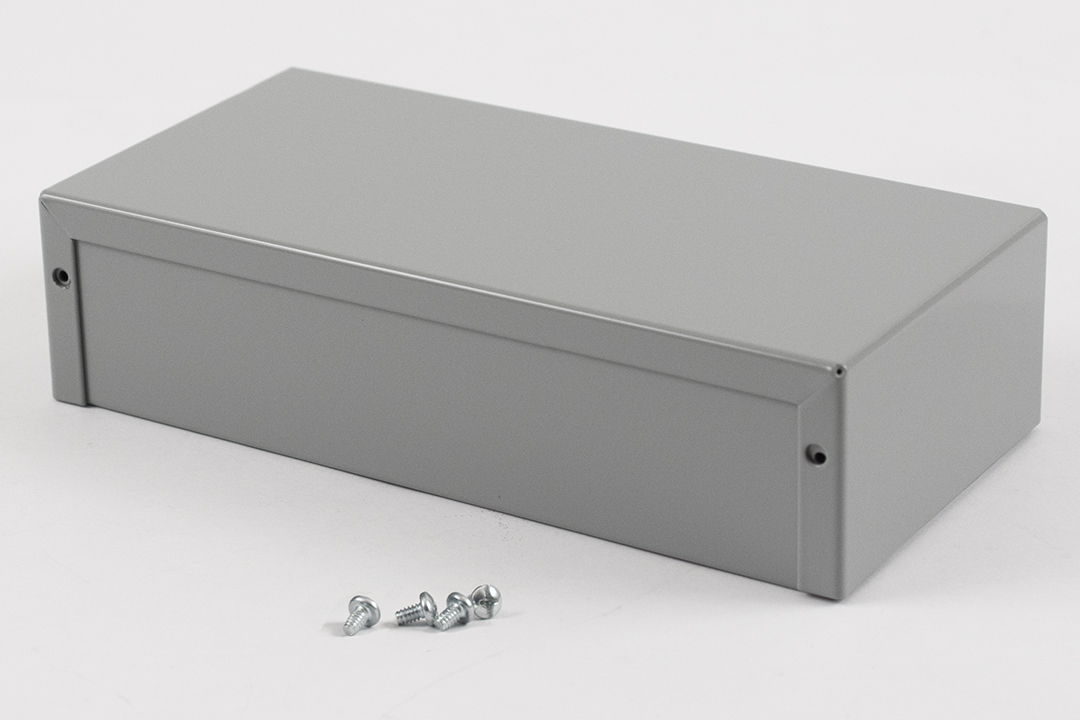

Construction is a simple two-piece assembly: a bottom and a cover, each made from 0.04" (1.02 mm) aluminum panels. Four self-tapping screws are included to fasten the cover, and replacement screws are available as 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.

This 8 x 4 x 2 inch size is the slim, low-height counterpart of the 8 x 4 x 3 inch S case, for elongated layouts that need only 2 inches of depth. The drawing gives overall assembly dimensions of 202.84 x 101.24 x 51.00 mm (7.99 x 3.99 x 2.01 in) and a usable inner box of 200.81 x 96.39 x 48.97 mm (7.91 x 3.80 x 1.93 in) length by width by height. Shipping weight is 0.47 lbs (0.21 kg).

1411SS is REACH and RoHS compliant and ships shrink wrapped. The same size is also offered as 1411SSU (unpainted aluminum); 1412SS (20 gauge steel, grey). The enclosure can be factory modified with milling, drilling or printing on a quote basis, and solid models are available in STEP or IGES format.
