Hammond 1411PP 6x4x2" ASA 61 Grey Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal size 6 x 4 x 2 in (152 x 102 x 51 mm)
- Inner box 5.91 x 3.80 x 1.93 in (150.01 x 96.39 x 48.97 mm)
- Smooth ASA 61 grey powder coat finish (Hammond color GY2)
- Bottom and cover made from 0.04" (1.02 mm) aluminum panels
- Four self-tapping cover screws included; replacements are 1421J6 (pkg of 6, 6-32 x 1/4")
- Factory modification (milling, drilling, printing) available; STEP or IGES solid models
- REACH and RoHS compliant; shipping weight 0.36 lbs (0.16 kg)

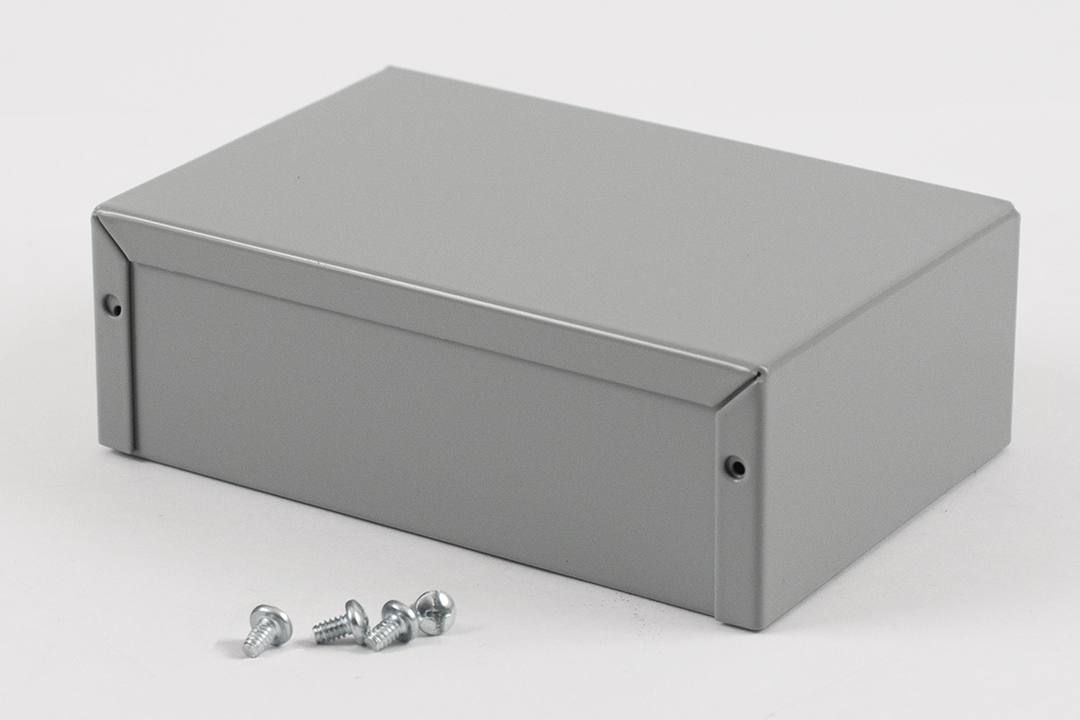

The 1411PP is a 6 x 4 x 2 in (152 x 102 x 51 mm) utility case from the 1411 series, finished in smooth ASA 61 grey powder coat (Hammond color GY2). It gives electronics builders, OEM engineers and service technicians a ready-finished aluminum housing for instruments, controls and small circuits.
Construction is a simple two-piece assembly: a bottom and a cover, each made from 0.04" (1.02 mm) aluminum panels. Four self-tapping screws are included to fasten the cover, and replacement screws are available as 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.
This 6 x 4 x 2 inch size is a low-profile box: a flat, shallow shape that suits circuit boards and panel controls that do not need much height. The drawing gives overall assembly dimensions of 152.04 x 101.24 x 51.00 mm (5.99 x 3.99 x 2.01 in) and a usable inner box of 150.01 x 96.39 x 48.97 mm (5.91 x 3.80 x 1.93 in) length by width by height. Shipping weight is 0.36 lbs (0.16 kg).
1411PP is REACH and RoHS compliant and ships shrink wrapped. The same size is also offered as 1411PPU (unpainted aluminum); 1412PP (20 gauge steel, grey). The enclosure can be factory modified with milling, drilling or printing on a quote basis, and solid models are available in STEP or IGES format.
Ideal For
- Instrument housings
- Utility enclosures for small electronic assemblies
- Custom-machined project cases (drilling, milling, printing)
- Ready-finished grey cases for controls and circuits
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures (1411 aluminum version) |
| Description | enclosure - ASA 61 grey aluminum; utility |
| Part Number | 1411PP |
| Short Description | UTILITY CASE 6.0 X 4.0 X 2.0 |
Dimensions
| Width | 4.00 in (102 mm) |
| Height | 2.00 in (51 mm) |
| Length | 6.00 in (152 mm) |
| Wall Thickness | 1.02 mm [0.04 in] |
| Inner Box Width | 96.39 mm [3.80 in] |
| Inner Box Height | 48.97 mm [1.93 in] |
| Inner Box Length | 150.01 mm [5.91 in] |
| Overall Assembly Width | 101.24 mm [3.99 in] |
| Overall Assembly Height | 51.00 mm [2.01 in] |
| Overall Assembly Length | 152.04 mm [5.99 in] |
| Nominal Size (L X W X H) | 6 x 4 x 2 in (152 x 102 x 51 mm) |
Identifiers
| UPC | 623980009087 |
| UNSPSC | 39121301 |
Related Parts
| Alternate Finish (Same Size) | 1411PPU (unpainted aluminum) |
| Steel Version (20 Gauge, Grey) | 1412PP |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.36 lbs (0.16 kg) |
Construction & Finish
| Color | Gray |
| Finish | Smooth ASA 61 grey powder coat (Hammond color GY2) |
| Material | Aluminum |
| CAD Models | Solid models available in STEP or IGES |
| Panel Material | Bottom and cover made from 0.04" aluminum panels |
| Mounting Flanges | None (non-flanged version) |
| Assembly Contents | Bottom, cover and 4 cover screws |
| Replacement Screws | 1421J6 - plated cover screws, package of 6, 6-32 x 1/4" Philips head self-tapping |
| Factory Modification | Milling, drilling, printing etc. available on quotation |
| Cover Screws Included | 4 self-tapping screws |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411PP?▾
The nominal size is 6 x 4 x 2 in (152 x 102 x 51 mm). The drawing shows overall assembly dimensions of 152.04 x 101.24 x 51.00 mm (5.99 x 3.99 x 2.01 in) and an inner box of 150.01 x 96.39 x 48.97 mm (5.91 x 3.80 x 1.93 in).
What is it made of and how thick is the metal?▾
The bottom and cover are made from 0.04" aluminum panels; the drawing lists a wall thickness of 1.02 mm [.04 in].
Are screws included?▾
Yes. The purchased assembly includes the bottom, the cover and four self-tapping cover screws. Replacement screws are part number 1421J6, a package of six plated 6-32 x 1/4" Philips head self-tapping screws.
What finish does it have?▾
It is finished in smooth ASA 61 grey powder coat, Hammond color GY2. The listed color is Gray.
Does the 1411PP have mounting flanges?▾
No. This is the non-flanged version. The flanged versions in this series are offered in other sizes.
Can the enclosure be customized?▾
Yes. The drawing notes that the enclosure can be factory modified with milling, drilling, printing and similar work on a quote basis, and solid models are available in STEP or IGES.
